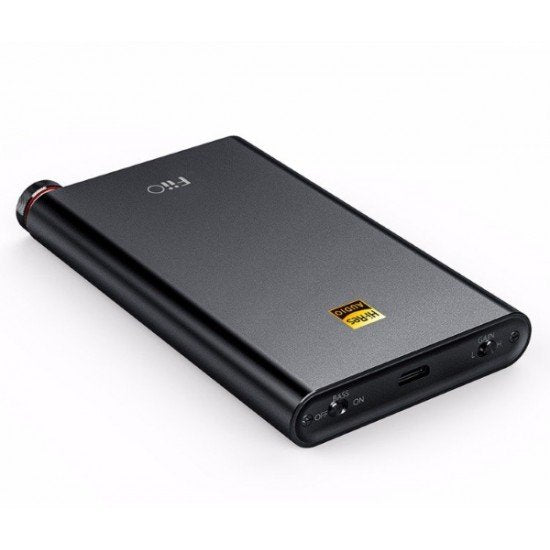

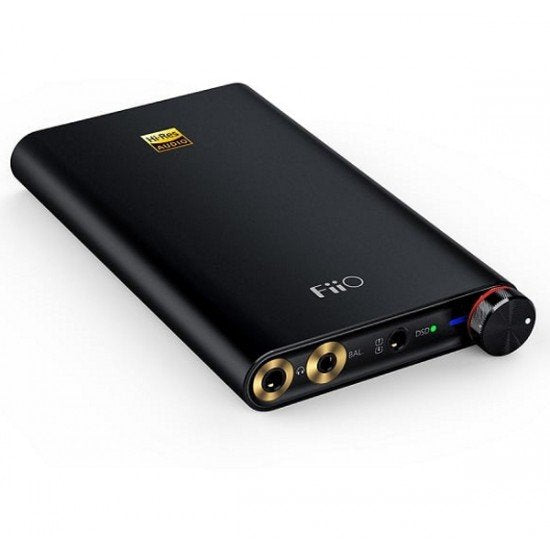

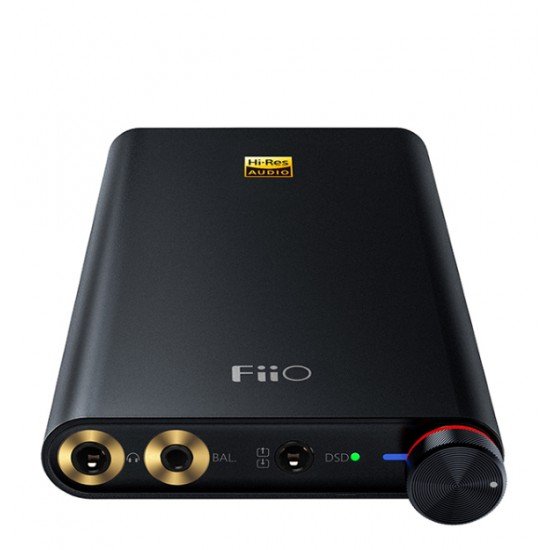

FIIO Q1 MARK II, portable headphone amplifier

Name: FIIO Q1 MARK II, portable headphone amplifier
Brand: FiiO
SKU: FIIO Q1 MARK II
Price: 119.00 EUR
Availability: OutOfStock

€119.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

Compact portable headphone amplifier with extremely wide functionality and ergonomic design.

Power 75 mW (32Ω) / 220 mW (32Ω) Balanced output
Signal support 384kHz/32bit
SNR: >115dB(AUXIN).
USB/DAC converter.

DESCRIPTION

Native DSD decoding chips worthy of a flagship

Being equipped with the XMOS platform allows the Q1 Mark II to support decoding of more formats with outstanding performance – it is capable of decoding up to 384 kHz /32 bit PCM as well as up to DSD256 (the latter is indicated by a green light) . When combined with the two separate crystal oscillators, each designed to handle different sampling rates to achieve the utmost accuracy in digital-to-analog conversion, the Q1 Mark II becomes an affordable product that punches well above its weight in terms of versatility and performance.

Exceptional DAC and amplifier parts in an intelligent design

The Q1 Mark II uses some of the finest components in its well-thought-out design. The DAC employed is the AKM AK4452, which decodes high sampling rate formats with a high signal-to-noise ratio and low distortion. The headphone amplifier chip in the Q1 Mark II is in fact the very same one used in the X7 Mark II's AM3A amplifier module, the audiophile-approved OPA926 with extremely low noise output. Finally, low-pass filter duties for line output are handled by Texas Instruments' OPA1662.

Innovative ADC volume adjustment technology

The Q1 Mark II employs a clever ADC volume adjustment mechanism – by accurately reconstructing the ADC curve, problems such as volume imbalance between the left and right channels and noise when adjusting the volume are all avoided while also greatly enhancing volume adjustment accuracy with each turn of the knob.

TECHNICAL DATA

SPECIFICATIONS

Specifications

Output Power： 75mW（PO/32Ω）

>220mW(BAL/32Ω)
Supported Sampling Rates: 384kHz/32bit
DSD Support: DSD64/128/256
THD+N: <0.003% (USB DAC)

<0.002%（AUX IN）
Battery Capacity: 1800mAh
Battery Life: 20h (AUX IN

>1Ohm (USB DAC)
SNR: >115dB(AUXIN)

>110dB(USB DAC)
Dimensions: About 99×59×12.5(mm)
Headphone Impedance: 16-1500（BAL）
Weight: About 101g

DOCUMENTS
