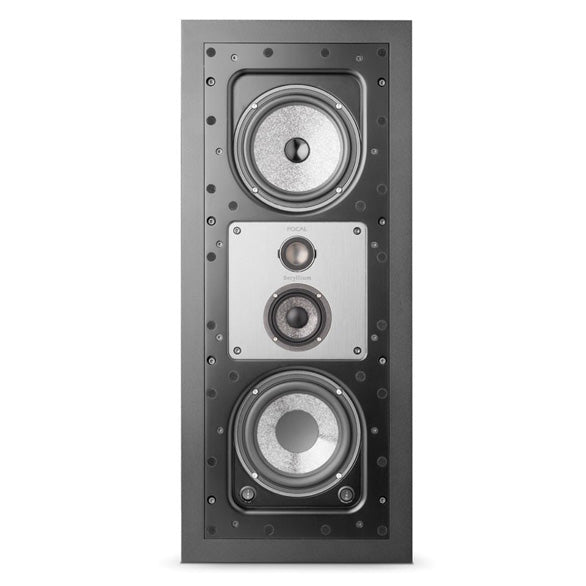

Focal Electra IW 1003 Be, built-in speaker

€2,099.00 EUR

Neišsirenkate garso kolonėlių namams? Turime Jums sprendimą!
Kviečiame atvykti garso aparatūros perklausai.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Atsiimkite parduotuvėje 0 €

Display general product information or specific product information using metafields.

A wall-mounted sound speaker from Focal that will not leave anyone indifferent.

  • 3-way sound column.
  • Recommended amplifier power: 25-240W.
  • Sensitivity: (2.83 V/1 m) 90dB.
  • Resistance: 8 ohms.

 

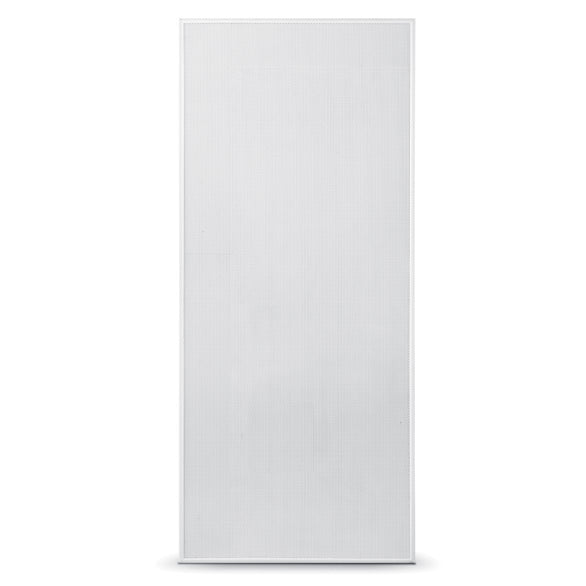

Perfectly suitable for public address systems, the 3-way in-wall Electra IW 1003 Be loudspeaker can be installed horizontally or vertically, either as an in-wall loudspeaker or mounted to its optional stand (not supplied). Thanks to the magnetic grille, this loudspeaker delivers high-fidelity sound to your listening room in complete discretion. The Electra IW 1003 Be is equipped with the best of Focal technologies, such as the IAL Beryllium tweeter, the state-of-the-art "W" cones and OPC filtering. Packed with technology, this is a built-in alternative to traditional high-end loudspeakers. Optimized acoustic performance 'W' CONE

The 'W' composite sandwich cone allows total optimization of the frequency response curve, thanks to the total control of three key parameters: lightness, rigidity and damping. These unique characteristics of lightness and rigidity provide control of the signal transmission speed inside the material.

Beryllium tweeter UNEQUALED PURITY

Due to its incredible rigidity, Beryllium represents the ultimate material for a tweeter dome. After two years of research and development, Focal produced a world first: a pure Beryllium inverted dome, able to cover more than five octaves. You will improve the perception of transients and other micro details. Also, the linearity of the speaker's response curve is mainly a function of three opposite parameters: lightness, rigidity and damping.

Exceptional definition IAL TWEETER (INFINITE ACOUSTIC LOAD)

Electra 1000 Be loudspeakers feature an innovative technology called IAL (Infinite Acoustic Load). This technology enabled us to design a tweeter with a very wide frequency range capable of extending very low down in frequency response, for relaying the midrange much earlier. This technology allows the frequency range to which the human ear is sensitive to be reproduced by the ultra-light tweeter with exceptional definition


SPECIFICATIONS

  • Type 3-way sealed In-Wall speaker.
  • Cut-out dimensions (HxW) 26 1/8x10 3/8"
  • Depth from wall 3-7/8"
  • Adjustment Tweeter:-3dB/0dB/+3dB Midrange:-3dB/0dB/+3dB
  • Protection Autoreset Polyswitch fuse
  • Drivers 6-1/2" (16.5cm)"W" passive radiator. 6-1/2" (16.5cm)"W" woofer. 3" (8cm)"W" midrange. 1-1/4" (27mm) pure Beryllium IAL inverted dome tweeter.
  • Net weight 22Ib (10kg)
  • Recommended amplifier power 25 - 240W
  • Crossover frequency 400Hz - 2000Hz
  • Nominal impedance 8 Ohms
  • Sensitivity (2.83 V/1 m) 90dB
  • Frequency response (+or-3dB) 49Hz - 40kHz

User manual / User manual.
