Sound amplifier Helix A2, High-End

2-channel High-end sound amplifier with integrated active crossover.

• Power RMS/MAX:
  @ at 4 ohms - 2 x 150W / 250W
  @ at 2 ohms - 2 x 270W / 450W
  @ at 1 ohm - 2 x 395W / 650W
  By bridge @ at 4 ohms - 1 x 540W / 900W
  By bridge @ at 2 ohms - 1 x 790W / 1300W
• Frequency range: 15 Hz - 20,000 Hz
• Bass boost: 0 - 9 dB / 30 - 120 Hz
• Damping factor: > 1000
• Input sensitivity: 500 mVolts - 8 Volts
• Dimensions: 35 x 432 x 240 mm

There are lots and lots of powerful amps out there - but only those that unconditionally control the connected loudspeakers with a grip of iron and an extremely high damping factor bear the name of HELIX. The output stages of the competition line are what the high ender calls "wired for power". Whether it's sheer power or enormous musical sensitivity – these power packs know every trick in the book. If you finally want to stop looking for the perfect amp, then this is where the search will end.

• Extremely stable output stage with selected MOSFET transistors
• Drivers in Class A Technology for lowest possible THD
• Processor-controlled technology for optimized operation
• Smart protection circuits against overheating, over- and undervoltage, speaker short circuiting, low impedance and faulty connection
• 1% accurate components for perfect sound quality

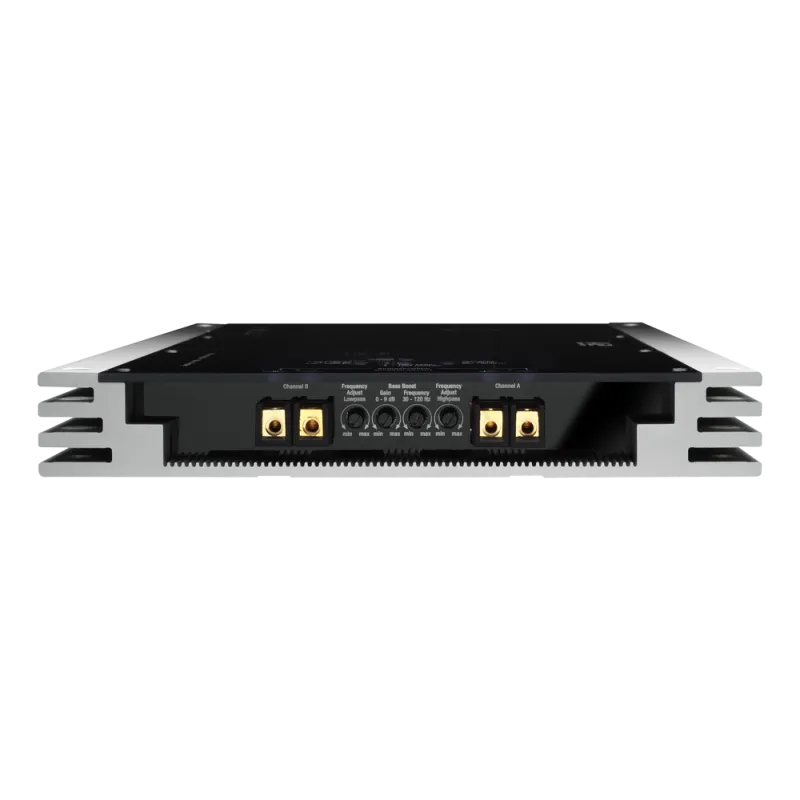

• 24 carat gold-plated solid connection terminals suitable for 25 mm² / gauge 4
• Temperature-optimized heatsink for efficient heat dissipation

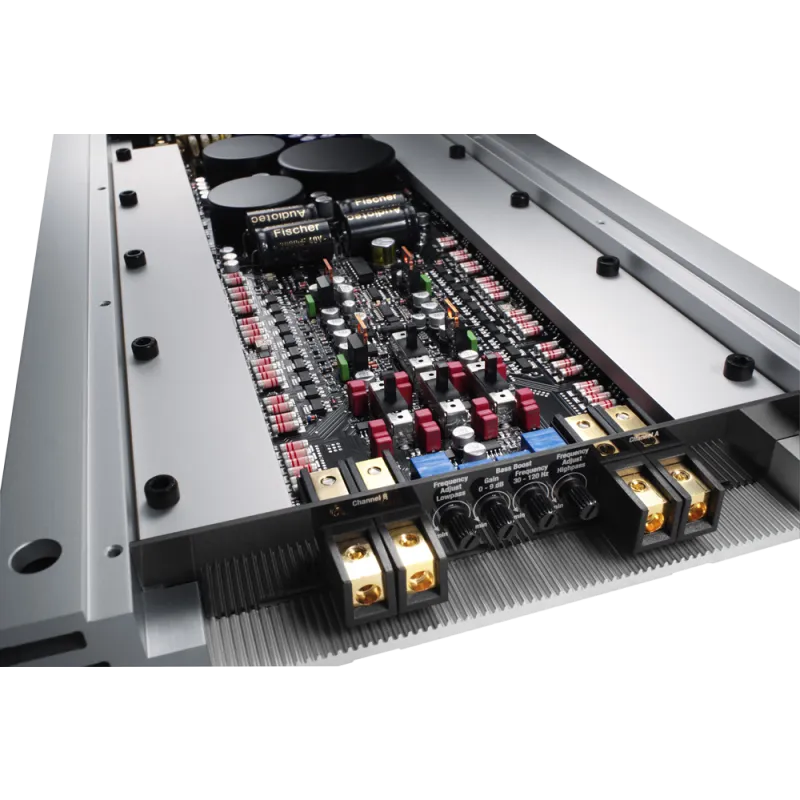

• Highpass 15 - 6,000 Hz adjustable
• Lowpass 15 - 6,000 Hz adjustable
• Bandpass 15 - 6,000 Hz adjustable
• Total harmonic distortion (THD) < 0.009 %
• Signal-to-noise ratio > 100 dB
