Goobay

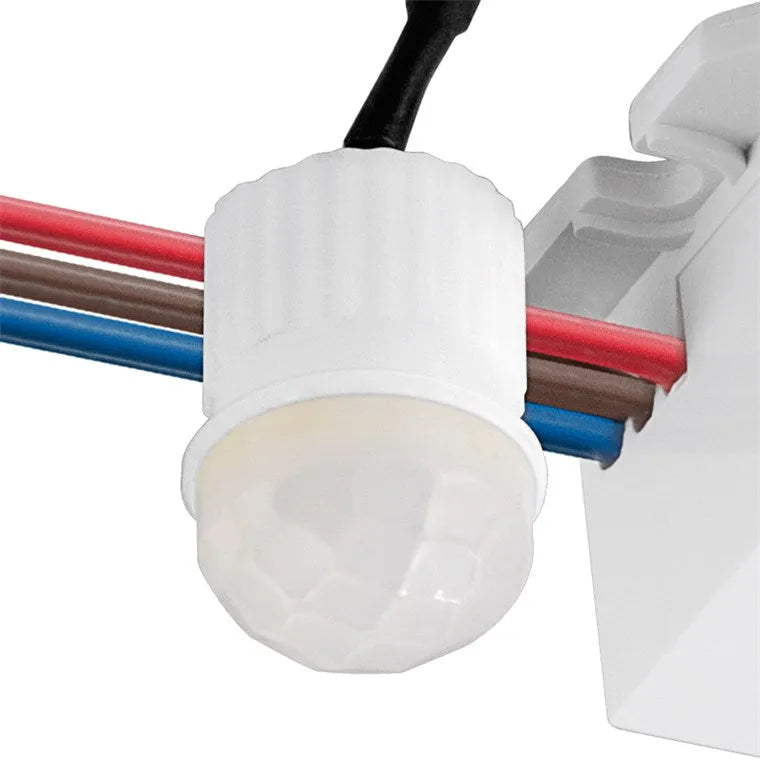

GooBay PIR Motion Sensor

€16.00 EUR

GooBay PIR Motion Sensor is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

ceiling-mounted motion sensor suitable for indoor use.

  • 360 degree operation.
  • Operating distance: 6 m.
  • IP20 resistance standard.
  • Light sensitivity: 3 lx- 2000 lx.

flush-mounted ceiling mounting; 360° detection, 6 m range, indoor use (IP20), suitable for LEDs
  • miniaturization allows almost invisible mounting in raised or cavity ceilings/lamps
  • especially designed for indoor lighting, lamps, LEDs, etc.
  • accurate detection of people and animals in darkness or twilight
  • multi adjustable sensor for optimal detection setup
  • designed for the easy and quick ceiling flush-mounting

SPECIFICATIONS


Connections

  • Connection, type Loose cable ends

Performance

  • minimum load 1
  • sensor type passive infrared (PIR)
  • switching power 200 W
  • operating voltage 230 V (AC)
  • max view angle 360 ​​°
  • switch-off delay from 10 s
  • switch-off delay to 420 s
  • Installation height from 2.2 m
  • Installation Height up to 4 m
  • max. detection range 6 m
  • Light sensitivity from 3 lx
  • light sensitivity up to 2000 lx

General

  • Packaging type Retail Box
  • Consumption Unit 1 pc. in cardboard box
  • protection class IP20
  • Color white
  • Markings CE, WEEE, Haus
  • depth 24 mm
  • Diameter 15 mm
  • Weight 46 g

User Manual (EN).
