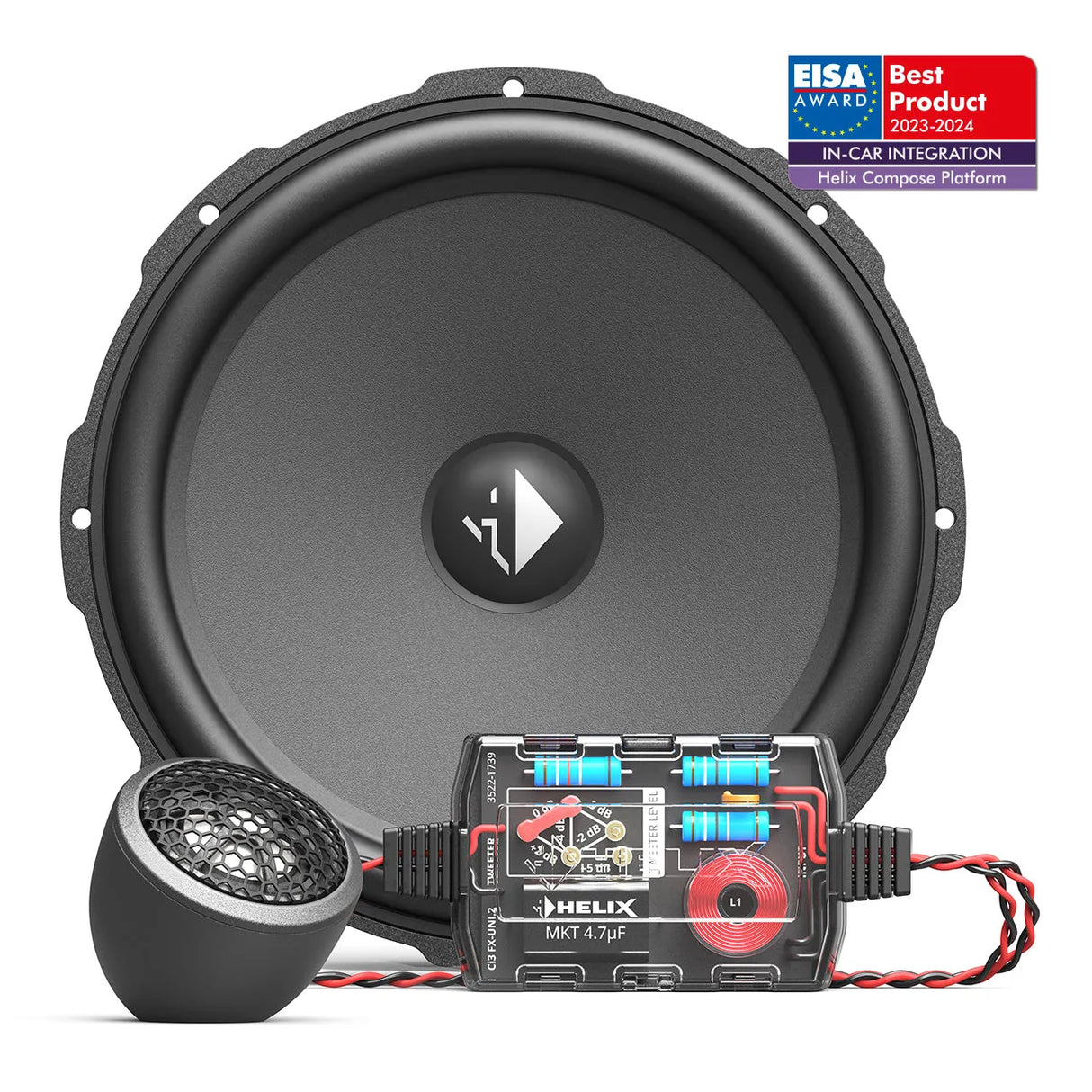

Helix Ci3 K200.2FM-S3, speaker set for cars

The HELIX COMPOSE i3 series is a premium standalone series with excellent value for money.

• Recommended amplifier power: 100W (RMS).
• Frequency range: 50 Hz - 25,000 Hz.
• Sensitivity SPL 94 dB @ 2.83V / 1m.
• Resistance: 3 Ohms.

The HELIX COMPOSE i3 series is a top-quality standalone series with an excellent price/quality ratio.

Compose Series speakers are optimized for Helix/Match DSP processors.

The Compose i3 series are made of high quality materials:

- Titanium calotte tweeter with excellent sound quality.

- The midbass has a very lightweight, coated paper cone for accurate and detailed reproduction.

- The body of the midbass is made of a polymer composite, reinforced with glass beads to obtain a very rigid and non-tracking material.

- High-performance magnets.

- Separate high quality split filter with 6-step treble level control.


One of the key elements of the Compose series is a patented mounting system called FlexMount, based on specially developed speaker adapters.
This technology allows you to mount i3 speakers on an almost infinite number of car models by simply changing the fitting ring to suit your car.

FlexMount adapter rings are either supplied with the speaker or can be purchased separately (be sure to check out our FlexMount range).

SPECIFICATIONS

Power handling RMS / Max. P 100 / 150 Watts
Frequency response 50 Hz - 25,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 94 dB @ 2.83V / 1m
90 dB @ 1W / 1m
Outer diameter ø
Tweeter: 32.0 mm / 1.26”
Woofer: 195.0 mm / 7.68”
Woofer with universal mounting ring: 208.9 mm / 8.22″

Installation diameter ø
Tweeter: 32.0 mm / 1.26”
Woofer: 173.5 mm / 6.83”

Installation depth
Tweeter: 9.8 mm / 0.39”
Woofer: 63.7 mm / 2.51”

Dimensions crossover
103.3 x 50.4 x 25.0 mm /
4.07 x 1.98 x 0.98”


Woofer
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 67 Hz
Mechanical Q factor Qms 4.25
Electrical Q factor Qes 0.93
Total Q factor Qts 0.76
Compliance Cms 300 μm/N
Equivalent air volume Vas 19.0 L
Force factor B*l 5.1 Tm
Cone area Sd 214 cm2
Moving mass Mms 18.8 g
Mechanical resistance Rms 1.87 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height

11.6 mm
Max. linear excursion Xmax +/- 3.8 mm

Twitter
Impedance Z 4 Ω
Resonance frequency Fs 1800 Hz
Voice coil diameter ø 20 mm

Features
Twitter
Ultra compact, titanium dome, neodymium magnet and FlexMount20

Woofer
Paper with Cenosphere coating, ProConnect terminal, FlexMount200 and grille

Crossover
Tweeter: 12 dB highpass, protection and level adjustment

INSTRUCTIONS

User Manual (EN).
