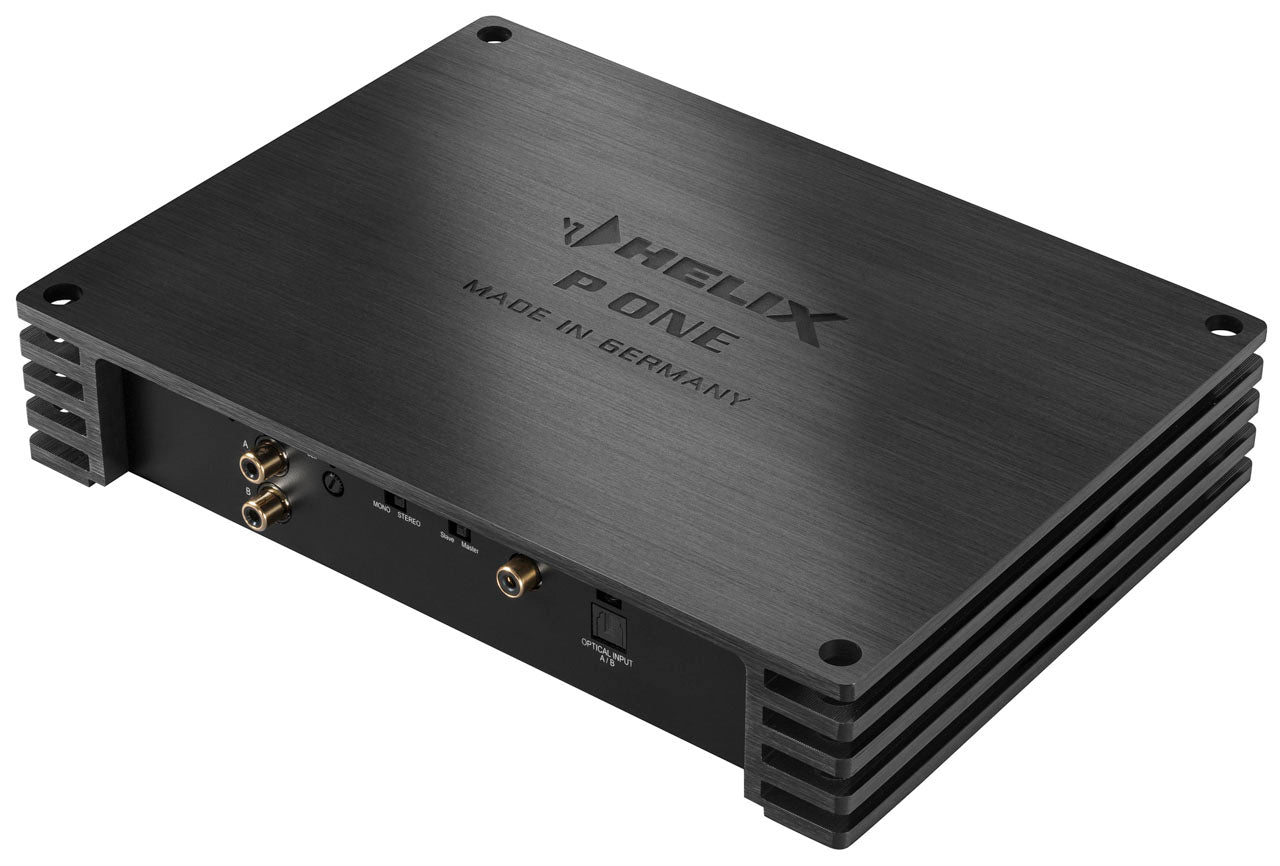

HELIX P ONE, car audio amplifier

€1,049.00 EUR

HELIX P ONE, car audio amplifier is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.


Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Extremely powerful car audio amplifier. Audio amplifier for those looking for the best options on the market.

  • Power: 3000W.
  • Frequency range: 10 Hz -40,000 Hz.
  • Amplifier class: D.
  • Resistance: 2 ohms.

HELIX P ONE

Elemental force with maximum control

The new P ONE will drive every subwoofer to the absolute maximum, since it delivers relentless power with 1,500 Watts RMS power into 1 Ohm. Its phenomenal stability predestines the P ONE as the ideal driver for any subwoofer configuration you can imagine and its enormous damping factor keeps every loudspeaker under full control. If that's still not enough, you can use the TwinPower Link to combine two amplifiers and double the output power.

High-Res Audio

Even though the P ONE will drive subwoofers in most cases, it can also be used as an "almighty" fullrange amplifier thanks to its wide frequency range up to 40 kHz, the extremely low THD and the excellent signal-to-noise ratio.

Highest power density ever from Audiotec Fischer

This power pack also sets new standards in other respects as never before so much power has been accommodated in such a compact housing for easiest installation. The unique "power-to-size" ratio is the result of the extraordinary efficiency of our Class D concept, which goes hand in hand with exceptionally low heat dissipation. A unique effort has also been made with the protective circuits which are particularly important in this power segment. For the first time, a microprocessor-controlled Hall effect current sensor continuously monitors the total power consumption of the amplifier in order to enable the maximum output power under all conditions.

Fully digital signal chain

Finally, the P ONE can be upgraded with our optional HDM 1 module that offers an optical input, means digital audio signals can be losslessly and directly processed. That's how you get the very last bit of performance out of this stunning amplifier.

Features
  • High performance Class D mono amplifier with up to 1,500 Watts RMS @ 1 Ohm – a perfect match for all 2 x 2 Ohms subwoofers connected in parallel
  • Also usable as an ultra broadband amplifier with exceptional sound quality – ideal for High Resolution Audio
  • Extremely high efficiency and low heat dissipation with minimal dimensions
  • High damping factor for maximum speaker control
  • Regulated power supply with Start-Stop capability for extremely stable output power even during voltage drops
  • TwinPower Link for connecting two amplifiers in bridged mode
  • Optionally available HELIX Digital Input Module (HDM) to extend the amplifier with an optical digital input in SPDIF format

SPECIFICATIONS


Optional via HDM 1 module:
1 x Optical SPDIF (28 - 96 kHz)

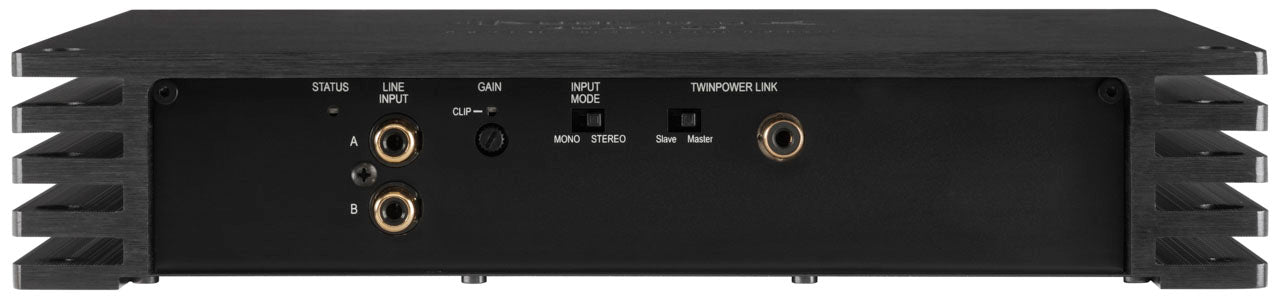

Input sensitivity RCA / Cinch 0.5 - 8 Volts
Input impedance RCA / RCA 6 kOhms
Input impedance high level -

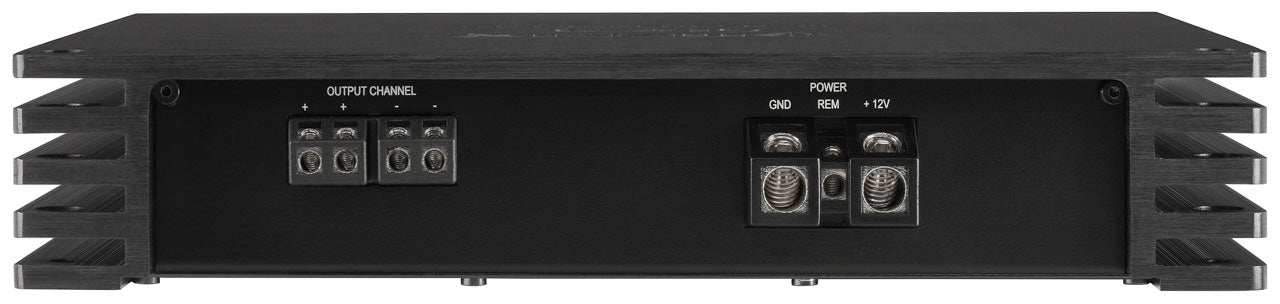

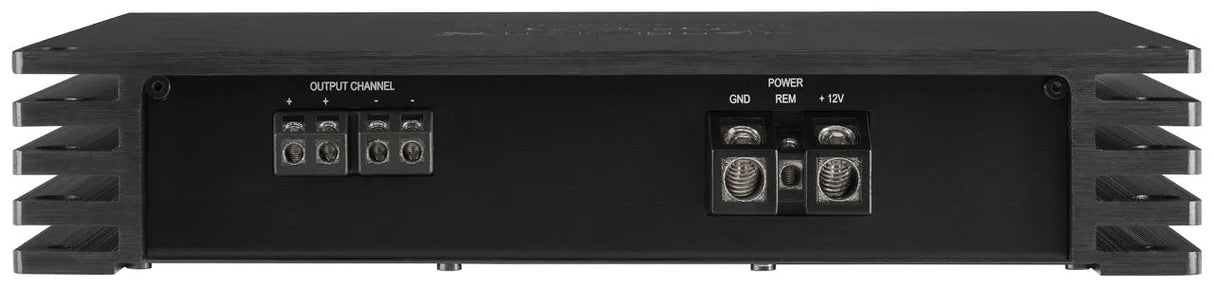

Outputs 1 x Speaker output
Output voltage RCA / RCA -
Signal converter for digital input -
Frequency response 10 Hz to 40,000 Hz
Bass boost -
Highpass -
Lowpass -
Bandpass -
Subsonic -
Phase -
Slope high- / lowpass -
Slope subsonic / lowpass -
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 112 dB (A-weighted)
Distortion (THD) < 0.01%
Damping factor > 500
Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 1250mA
Fuse 4 x 30 A LP-Mini-fuse (APS)
Additional features Input mode switch, TwinPower Link, HDM slot, Start-Stop capability
Dimensions (H x W x D) 50 x 260 x 190 mm /
1.97 x 10.24 x 7.48”

* In typical applications as subwoofer amplifier

WHAT'S IN THE PACKAGE?

1 x Amplifier HELIX P ONE
1 x Instruction manual

INSTRUCTIONS

User Manual (EN).
