HELIX S 3M, midrange loudspeaker

Name: HELIX S 3M, midrange loudspeaker
Brand: Helix
SKU: Helix S 3M
Price: 139.00 EUR
Availability: InStock

€139.00 EUR

HELIX S 3M, midrange loudspeaker is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

The S 3M loudspeaker is the perfect component for any quality 2-way sound system.

Recommended amplifier power: 75W.
Frequency band: 400 Hz - 6,000 Hz .
Resonant frequency: 130 Hz.
Resistance: 4 Ohms.

DESCRIPTION

HELIX S 3M

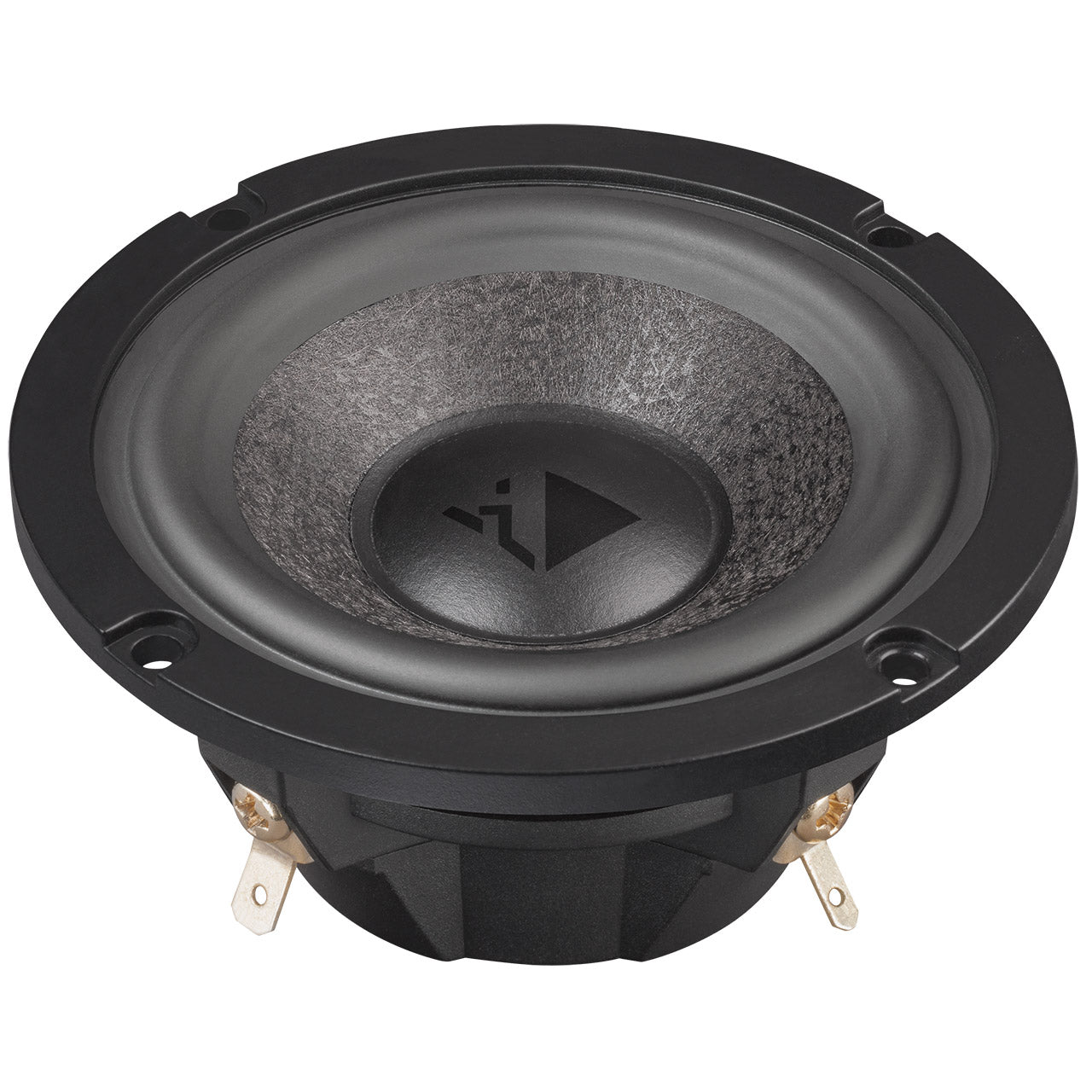

A cone midrange driver in an elegant design, trimmed for maximum sound quality – and thus the perfect addition to any fully active 3-way speaker system.

The highly rigid membrane consists of a novel basalt fiber-paper compound. An ideal combination to ensure clear and precise sound even at high volumes In addition to maximum uncoloured mid-range reproduction, the S 3M also offers extremely low distortion thanks to the linear neodymium magnet system.

The dream team is the combination with the S 1T tweeter and a S 6B or S 4B woofer. Driven by a power amplifier from Audiotec Fischer, the S loudspeakers perform at their best and provide the perfect basis for absolute top sound systems!

Features

3” / 75 mm cone midrange speaker with novel basaltfiberpaper compound cone – a perfect combination of lowest weight, high stiffness and perfect inner damping
Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
Low-resonant basket made from fiberglass reinforced plastic with optimized voice coil cooling for high power handling

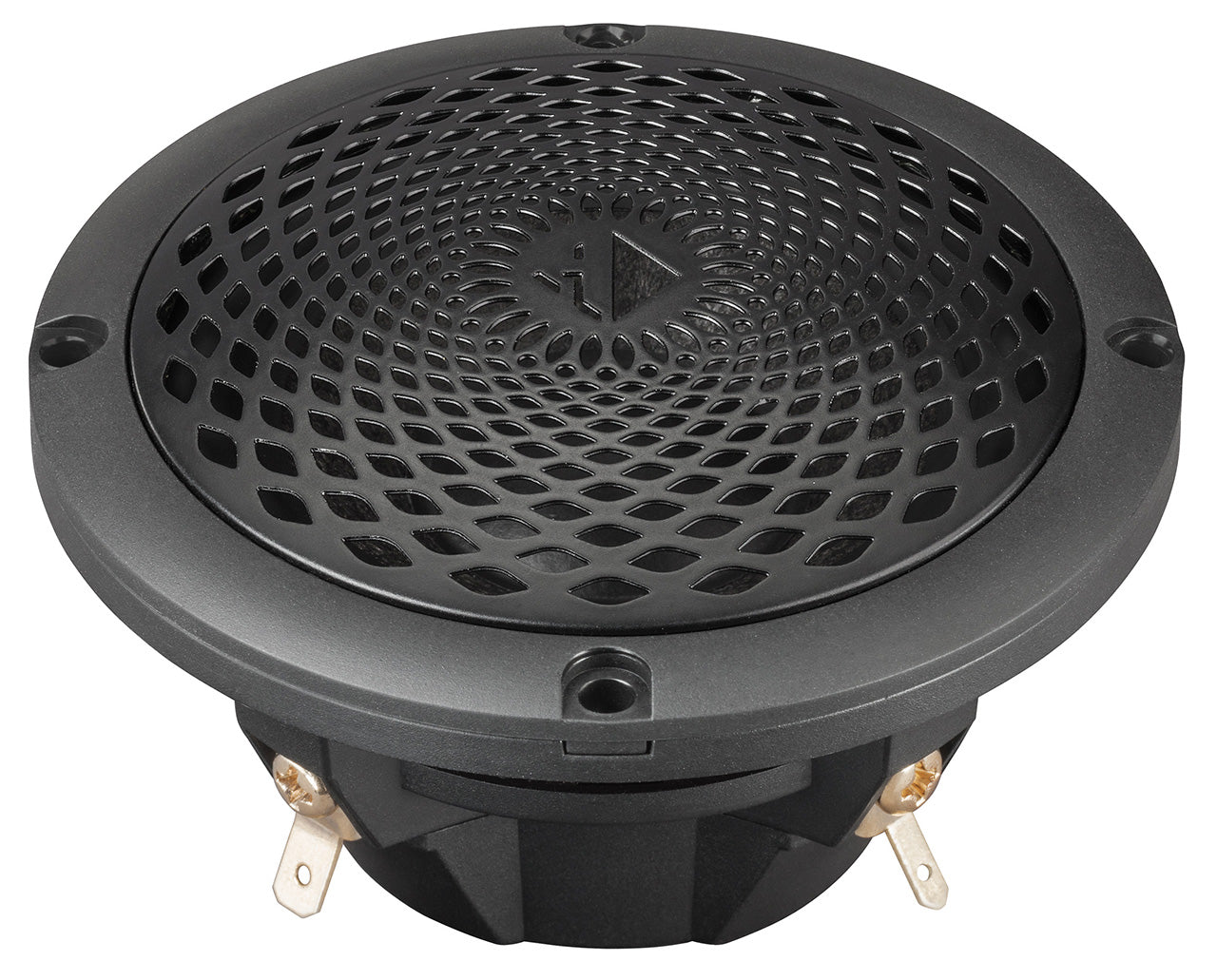

Grill included

TECHNICAL DATA

SPECIFICATIONS

Power RMS / max.	Mr	75 / 150 Watts (highpass > 400 Hz at 24 dB/Oct.)
Impedance	Z	4 Ω
DC resistance	Re	3.2 Ω
Frequency response		400 Hz - 6,000 Hz
Resonance frequency	Fs	130 Hz
Mechanical Q factor	Qms	4.47
Electrical Q factor	Qes	0.48
Total Q factor	Qts	0.43
Compliance	Cms	396 µm/N
Equivalent air volume	February	0.57 L
Force factor	BI*	4.6 Vol
Efficiency 1 W / 1 m	SPL	86 dB
Cone area	Sd	32 cm²
Moving mass	Mmm	3.8 g
Cone material		Basalt-fiber-paper compound
Mechanical resistance	Rs	0.69 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		8 mm
Max. linear excursion	Xmax	+/- 2 mm
Outer diameter	ø	90mm / 3.54"
Installation diameter	ø	73mm / 2.87"
Installation depth		37mm / 1.46"

Recommended enclosure volumes
Sealed box with minimum 200 ml net volume
Even in volumes		Recommended DSP / amplifier settings
0.2 liter (System resonance: 230 Hz)		Crossover frequency: 500 Hz Min. filter slope: 12 dB/Oct.
0.4 liter (System resonance: 190 Hz)		Crossover frequency: 450 Hz Min. filter slope: 18 dB/Oct.
0.6 liter (System resonance: 170 Hz)		Crossover frequency: 400 Hz Min. filter slope: 24 dB/Oct.

Note: The enclosure should always be filled with appropriate damping material.

What's in the package?

2 x Midrange speaker HELIX S 3M
2 x Grille
1 x Data sheet
1 x Mounting pattern

DOCUMENTS

INSTRUCTIONS

User Manual (EN).

SPECIFICATIONS

Power RMS / max.	Mr	75 / 150 Watts (highpass > 400 Hz at 24 dB/Oct.)
Impedance	Z	4 Ω
DC resistance	Re	3.2 Ω
Frequency response		400 Hz - 6,000 Hz
Resonance frequency	Fs	130 Hz
Mechanical Q factor	Qms	4.47
Electrical Q factor	Qes	0.48
Total Q factor	Qts	0.43
Compliance	Cms	396 µm/N
Equivalent air volume	February	0.57 L
Force factor	BI*	4.6 Vol
Efficiency 1 W / 1 m	SPL	86 dB
Cone area	Sd	32 cm²
Moving mass	Mmm	3.8 g
Cone material		Basalt-fiber-paper compound
Mechanical resistance	Rs	0.69 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		8 mm
Max. linear excursion	Xmax	+/- 2 mm
Outer diameter	ø	90mm / 3.54"
Installation diameter	ø	73mm / 2.87"
Installation depth		37mm / 1.46"

Recommended enclosure volumes
Sealed box with minimum 200 ml net volume
Even in volumes		Recommended DSP / amplifier settings
0.2 liter (System resonance: 230 Hz)		Crossover frequency: 500 Hz Min. filter slope: 12 dB/Oct.
0.4 liter (System resonance: 190 Hz)		Crossover frequency: 450 Hz Min. filter slope: 18 dB/Oct.
0.6 liter (System resonance: 170 Hz)		Crossover frequency: 400 Hz Min. filter slope: 24 dB/Oct.

Note: The enclosure should always be filled with appropriate damping material.

What's in the package?

2 x Midrange speaker HELIX S 3M
2 x Grille
1 x Data sheet
1 x Mounting pattern
