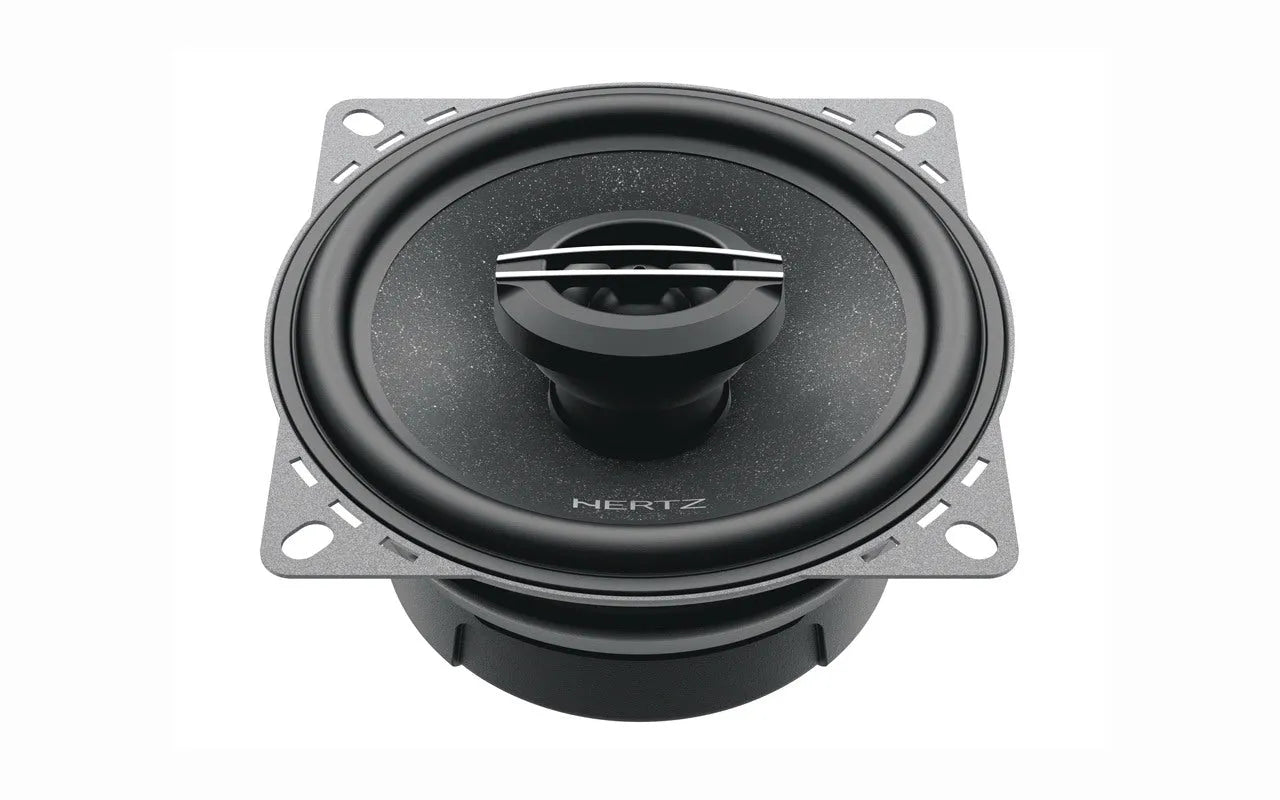

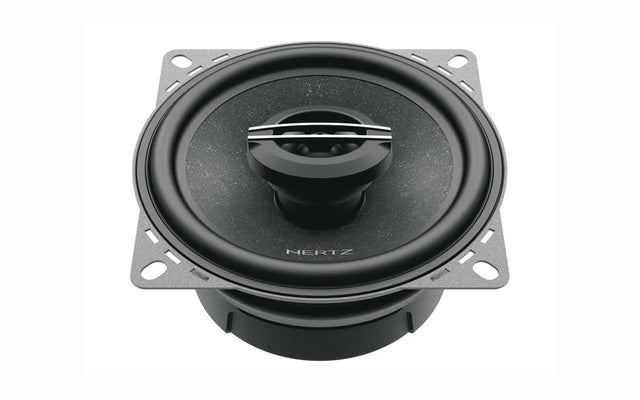

Hertz CX 100 car coaxial speaker
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
CENTO series car coaxial speaker, which is characterized by considerable power and special assembly quality!
- Power: 120 W.
- Frequency band: 80 ÷ 22k Hz.
- Sensitivity; 92 dB.
- RHFC™ technology.
- SPP-M technology.
Coaxial loudspeakers represent a major design challenge due to the critical nature of their acoustic output, being installed in an OEM placement often unfavorable to reproduction. For this reason, in order to achieve high performance, a great engineering effort was put into place, promptly addressed by our R&D team. The Cento two-way coaxials CX 100 features the new 24 mm (0.9 in.) Tetolon® dome tweeter that delivers a more musical and detailed sound compared to the more traditional plastic materials. The dispersion has been optimized for off-axis listening. The SPP-M cone (Semi Pressed Paper-Mica) ensuring superior acoustic and damping characteristics.
Features
1. Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.
2. RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
3. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
4. 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.
5. 100 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
6. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
7. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
8. Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as an option.
Technologies
-
SPP-M
SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping. -
RHFC™
RHFC™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
SPECIFICATIONS
| Power Handling - Peak W | 120 |
| Power Handling - Continuous W | 40 |
| Impedance Ω | 4 |
| Frequency response Hz | 80 ÷ 22k |
| Sensitivity dB SPL | 92 |
| Woofer size mm (in.) | 100(4) |
| Tweeter size mm (in.) | 24 (0.9) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter voice coil Ø mm (in.) | 13 (0.5) |
| Woofer magnet | High density flux ferrite |
| Tweet magnet | Neodymium |
| Woofer cone | Semi-pressed paper + Mica |
| Tweeter dome | Tetolon® |
