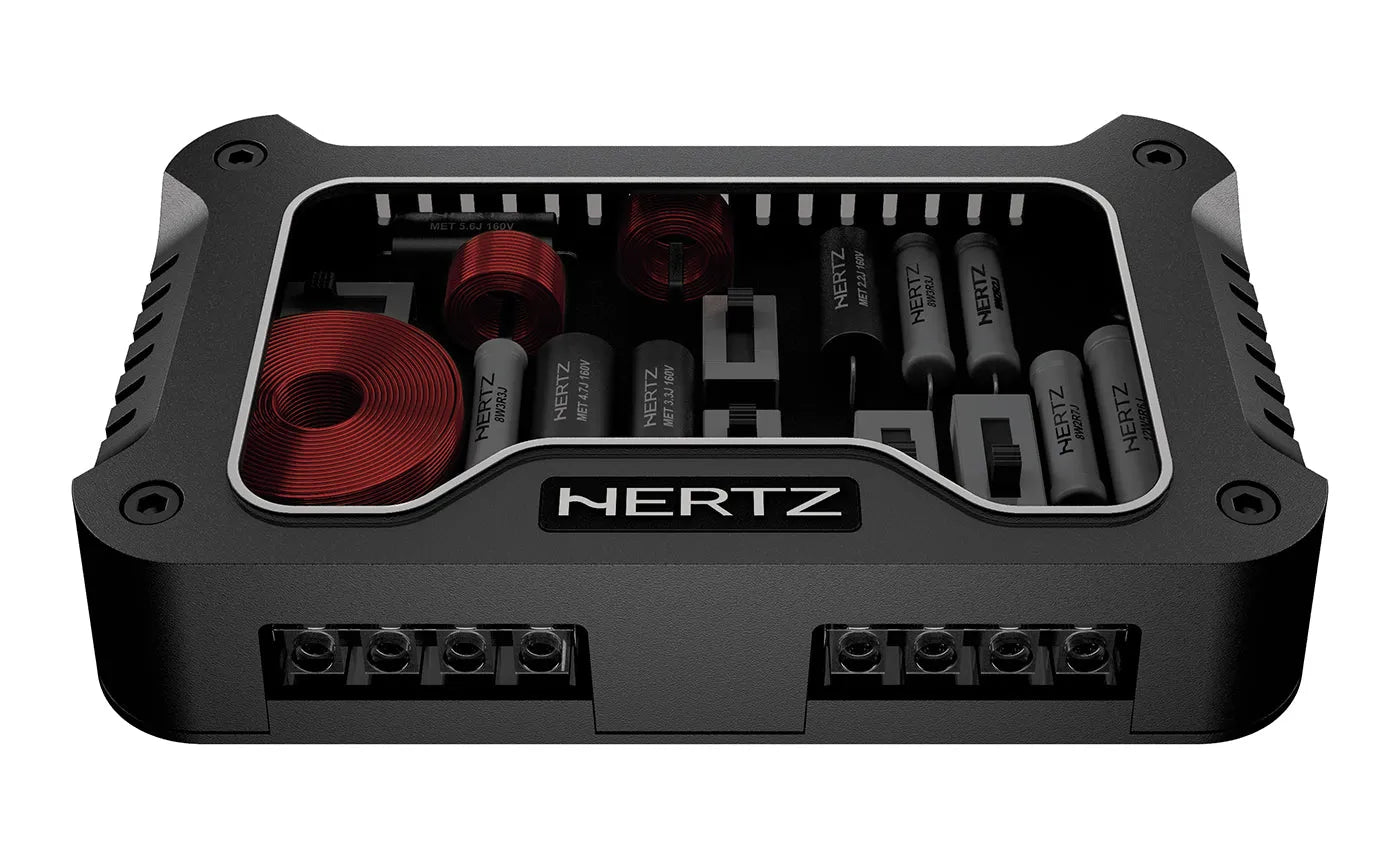

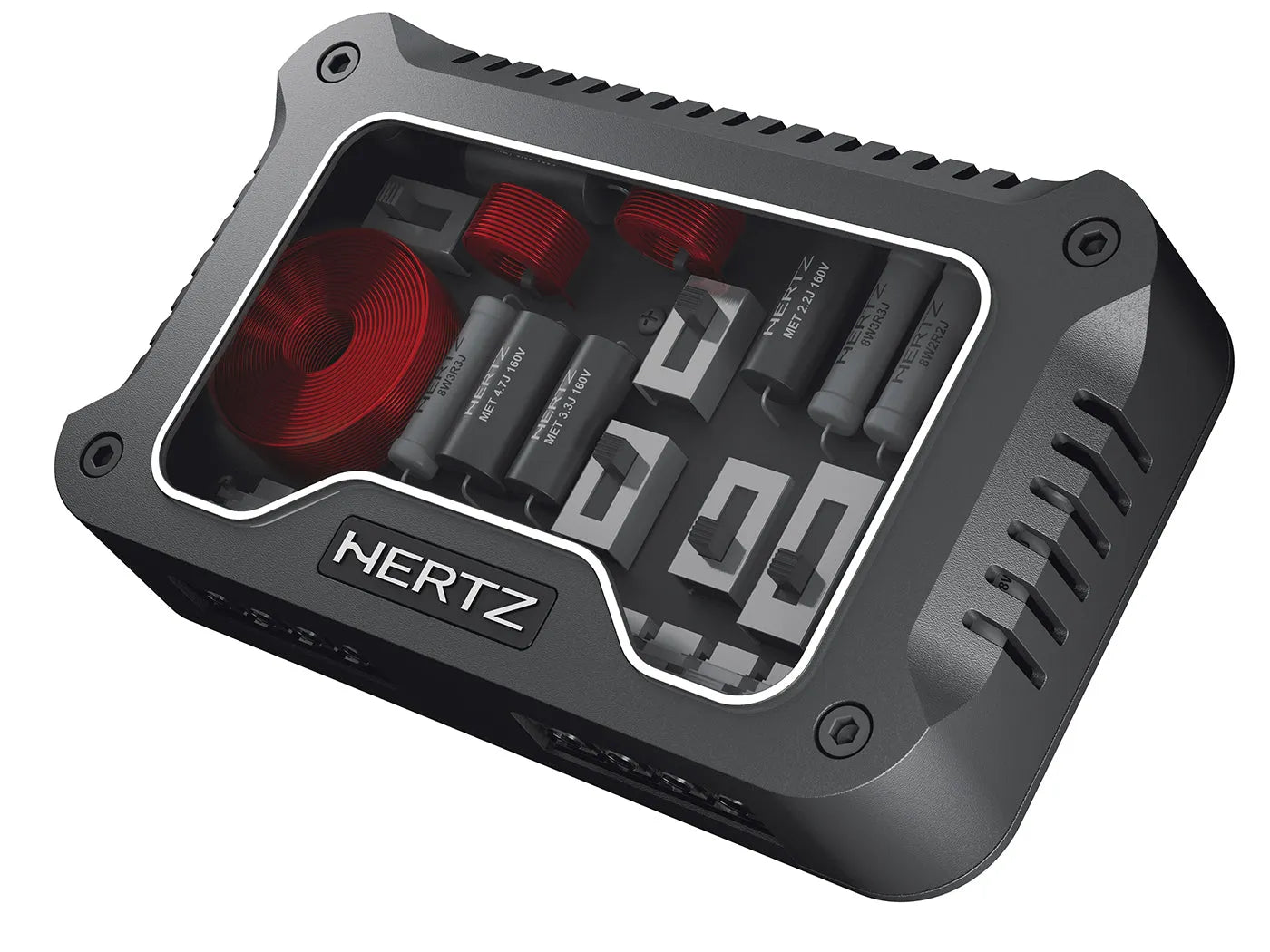

Hertz MLCX 2 TW.3 LEGEND, crossover filter

Name: Hertz MLCX 2 TW.3 LEGEND, crossover filter
Brand: Hertz
SKU: MLCX 2 TW.3
Price: 194.00 EUR
Availability: InStock

€194.00 EUR

Hertz MLCX 2 TW.3 LEGEND, crossover filter - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

The Hertz MLCX 2 TW.3 car audio crossover allows you to create a two-tube system, that is, to connect two amplifiers or two separate channels to the crossover, so that the woofer and tweeter can be controlled separately.

Power: 150W.
Subwoofer Lo-pass 6 dB Oct.
Tweeter Hi-pass 12 dB Oct.
2.5 kHz (Mid/Hi-Cont. = ON).

DESCRIPTION

1. Bi-amplification available, selectable through appropriate hi-current rating switch with hi-current carrying capability.
2. Mid-Contour two-position control, for a linear mid-bass frequency response according to the woofers position in the car and the listener's favorite sound.
3. Hi-Contour two-position control, to select the tweeter hi-pass crossover point selection according to the tweeter position/angle towards the listener.
4. Mid-Contour in conjunction with Hi-Contour provides the ability to use MLCX 2 TW.3 to build a two way system based on ML 1650.3 or ML 1800.3 woofer together with ML 280.3 tweeter.
5. Three-position switch for tweeter level adjustments in 2 dB steps, to fine-tune the
transducer s emission.
6. Hi-Boost control, selectable through appropriate switch, to provide better linearity of the tweeter emission above 10kHz when positioned not on axis with the listener.
7. Extremely high quality bi-metallized 160V polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.
8. Air wound inductors built on pure copper-wire with up to 1mm diameter, for high saturation threshold of the magnetic flux and low losses on the woofer section where high transient currents are demanded.
9. High power rating Wirewound resistors, to ensure performance stability even at high operating temperature. The Wirewound build construction grants low parasitic series inductance thus reducing losses at high frequencies, especially for resistors in series to the tweeter.

TECHNICAL DATA

SPECIFICATIONS

Component Crossover Power Handling - Peak W300 Power Handling - Peak Note 150 Depth mm (in.)41 (1.68) Adjustment

Tweeter +2 / 0 / -2 dB
Hi-Boost ON / OFF
Hi-Contour ON / OFF
Mid-Contour ON / OFF
Bi-Amp ON / OFF

Weight of one component - Crossover kg (lb)0.57 (1.26) Crossover

Woofer Lo-pass 6 dB Oct.
Tweeter Hi-pass 12 dB Oct.
Cut-off 2.5 kHz (Mid/Hi-Cont. = ON)
3.5 kHz (Mid/Hi-Cont. = OFF)
