Hertz

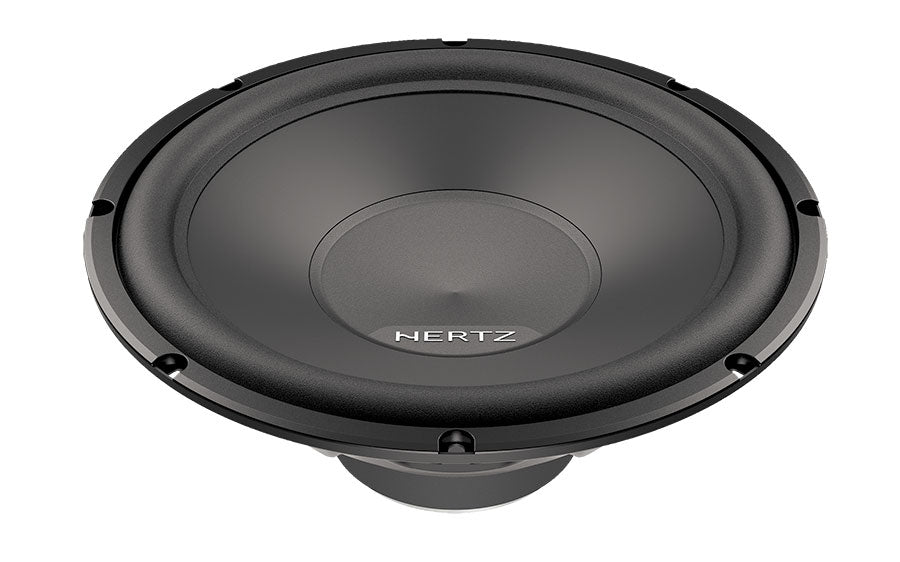

Hertz Uno S 300 S4, Car subwoofer

€79.00 EUR 99.00 €

Hertz Uno S 300 S4, Car subwoofer is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Hertz Uno series car subwoofer. The speaker is characterized by powerful and deep bass. It is also a great choice for those looking for an ideal value for money.

  • Power: 1000W.
  • Sensitivity: 89.5 dB
  • Resistance: 4 Ohms.
  • V-cone® production standard.

The 30 cm (12') S 300 S4 car audio subwoofer , designed to obtain powerful deep bass in any installation , is the last addition to the Uno product range.
Thanks to the efficiency of 89.5 dB , achieved using lightweight materials such as paper for the cone and high density foam for the suspension, the component provides the ability to easily reach high sound pressures in the car compartment.
The exclusive patented V-cone® system ensures maximum stiffness

1. Very high efficiency, superior power handling;
2. V-cone® with pressed paper membrane for maximum lightness;
3. High excursion foam surround combining high sensitivity and deep bass response;
4. Pure copper voice coil, wound on aluminum former, for exceptional thermal and mechanical capacity;
5. FEM refined motor structure employing low-carbon content steel and high-density flux ferrite magnet;
6. Designed to be used in small sealed or reflex box;
7. ABS gasket provided for aesthetically pleasing installation.


  • V-CONE®

    The exponential profile gets very close to the perfect one, providing exceptional dispersion.

SPECIFICATIONS

Size mm (in.) 300 (12)
Power Handling - Peak W 1000
Power Handling - Continuous W 250
Impedance Ω 4
Sensitivity dB SPL 89.5
Voice coil Ø mm (in.) 38 (1.5)
Xmax mm 9.1
X-Mech mm (in.) ±15.1 (0.59)
Re Ω 3.6
Fs Hz 33
February l 82.2
Qts 0.6
Qes 0.65
Qms 7,8
Spl dB 89.5

INSTRUCTIONS

User Manual (EN).
