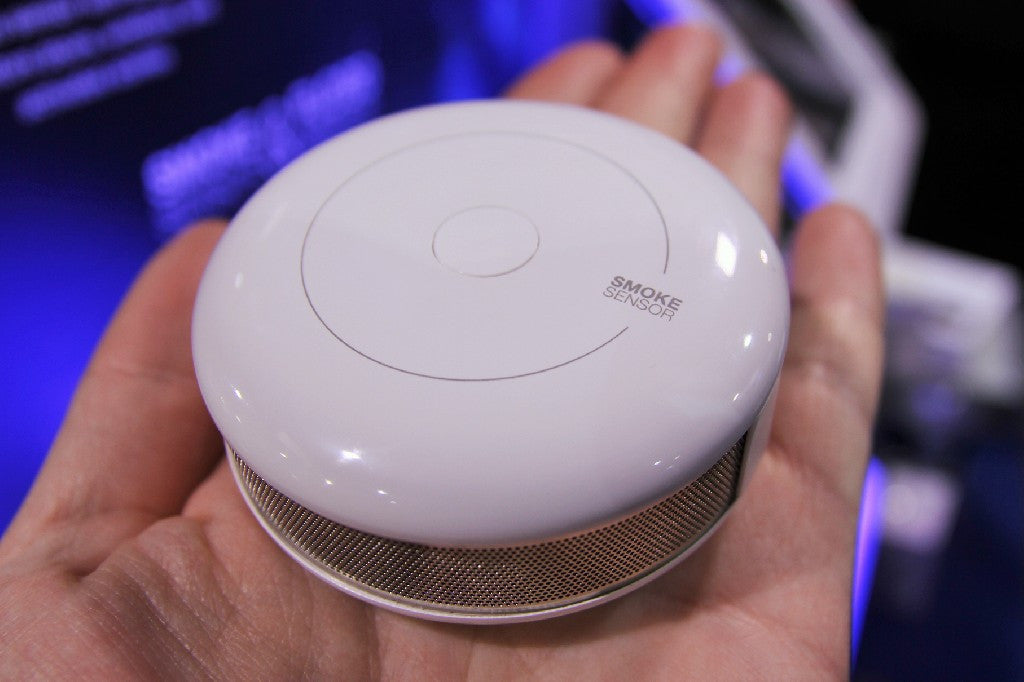

Smart smoke detector Fibaro Smoke Sensor

This detector is a wireless element of the home control system for fire protection. The alarm signal is sent wirelessly to the central controller and the security system.

• Smoke, temperature and gas recording
• Has 2 indicators to report danger - a siren and a light
• Maximum protection against open flame and smoldering fire
• Powered by batteries that last about 2 years
• Works on the Zwave network
• Controlled via a central controller
• Dimensions (LxWxH): 65 x 28 mm

 

 

 

FIBARO smoke detector is extremely light, battery-powered, operating according to the Z-Wave standard, suitable for mounting on the ceiling or wall. It captures the danger of fire with an optical smoke sensor, when the smoke is detected, the built-in alarm siren is activated, the LED indicators flash and the signal is sent wirelessly to the central controller and the security system. In addition, the device is supplemented with a sensor that activates an alarm when a higher temperature limit is detected.

Also, the danger can be detected by the integrated temperature sensor when the set temperature limit is exceeded. The integrated LED can be set to indicate danger, operating mode and status. The supply voltage can be supplied from an external power source or a power supply. The device communicates with the central controller and other devices via radio communication - Z-Wave protocol. The device can be controlled by smart devices and a computer. Communication between the user and the device takes place via Wi-Fi or the Internet through a central controller.

Minimalistic, eye-pleasing design

All current smoke detectors were designed with one goal in mind: to detect potential threats. However, hardly at least one manufacturer paid any attention to the design of the device. Naturally, smoke detectors are designed to save lives. However, like most other sensors, the smoke detector is installed in highly visible areas, such as on the ceiling. That's why Fibar's designers decided to combine perfect security with functionality and aesthetics. The Fibar smoke detector is a flawlessly designed device equipped with the latest technology to protect your home and your family.

Design

Smooth lines, polished surface and compact size. Combining all these features, we get one of the most beautiful smoke detectors ever created.

Light and sound signals

The Fibar smoke detector will inform you about the threat with an audible signal and colored LEDs flashing.

Polished grille

The polished grill in the detector body not only looks great, but is also functional - its permeability allows you to react faster even to the smallest amount of smoke.

Ultra small body

Fibar smoke detector is probably the smallest wireless smoke detector in the world. Advanced manufacturing technology has made it possible to reduce the number of components that make up the device, which are now housed in an extremely compact body.

Not just a smoke detector

Some substances burn practically without smoke. That's why Fibar engineers decided to install an additional temperature sensor - thus increasing the possibility of avoiding danger even more. If there isn't enough smoke to capture them, the device will still be able to detect the threat from the rapidly rising room temperature. A disproportionately sudden rise in temperature or exceeding the limit of 54°C degrees Celsius activates the alarm - residents are informed not only by sound and light signals emitted by the sensor, but also by an informational message sent to smartphones. Only detectors of this type can ensure your safety, regardless of what is burning.

One detector - many possibilities

This detector has been designed to meet all possible usage scenarios, from power modes to compatibility with various security systems: wired and wireless. The result of all this - you can install this detector where you need it, and it doesn't matter if you can connect the power supply or bring the wires in that place. The Fibar smoke detector will satisfy all your security needs.

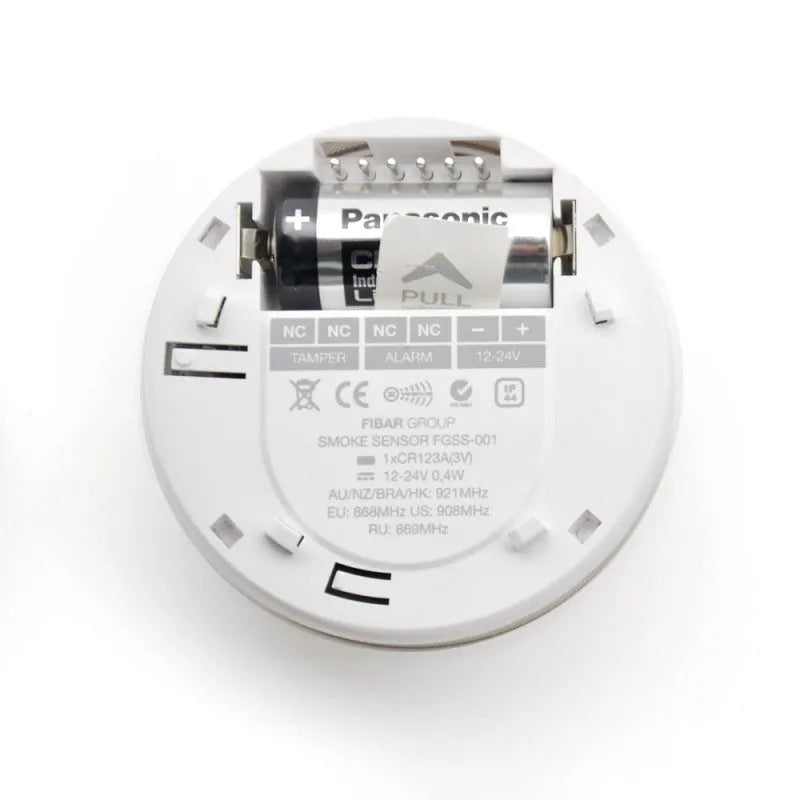

Powered by battery cells or a permanent source

If necessary, you can connect the detector to a permanent 12V or 24V power source. Or leave the sensor to work from the internal element, which will allow it to take care of your safety for up to 3 years.

Compatibility

The detector can be integrated into practically any wired security system - just connect the internal contacts to the security control panel.

Wired or wireless

Wireless connection allows you to install the sensor practically anywhere in the house. You can also connect the sensor to an existing wired security system.

It's up to you

Smart housing will help you protect your family from the risk of fire. You can decide what actions the smart home system should take when the risk of fire, burglary or water leakage is detected. In the event of a fire, the system can be configured to open security shutters, garage or other gates and illuminate the exit. You can also manually activate a security script that will perform all the necessary actions that can protect your property or even save lives.

Calibrated sensitivity

The FIBARO smoke detector offers the possibility to choose the sensitivity according to your needs. The required sensitivity can be selected differently depending on the place where the device will be installed. For example, a very sensitive detector in the kitchen can cause an alarm even if you are just cooking something, that's why it should be less sensitive in such a room. The selectable sensitivity feature helps prevent misleading alarms. In other rooms where the presence of smoke is less likely under normal conditions, the detector should be set to maximum sensitivity to ensure the best protection.

Resistant to high temperatures

The heat-resistant material used in the FIBARO smoke detector housing protects the device from damage even at 200 degrees Celsius.

Self-protection function

The smoke detector is equipped with additional protection that prevents its dismantling. Every attempt to dismantle the detector will activate the alarm, and the smart home system will be immediately informed about it. A smoke detector is a very important element of your home security, so any damage must not be allowed. Attempting to disconnect power, steal the detector, or otherwise attempt to damage the detector will immediately trigger an alarm.

Z-Wave network coverage measurement

The light signal from the detector can be used to indicate the strength of the connection with the rest of the smart home system. A high-quality connection between the device and the central network terminal ensures the functional operation of the entire system. Fibar smoke detector can work with wired security systems or wireless Z-Wave protocol. Even if the detector is installed in an area where there is a weak direct connection to the central terminal, it can work by connecting to other Z-Wave devices in the home that rebroadcast network commands, thus expanding the network coverage.

Self control

Perfect communication guarantees the safety of your home. The Fibar smoke detector not only continuously measures the connection to the overall smart home system, but also continuously performs a self-monitoring test. Every 5 seconds, the detector automatically checks the status of its sensors, and also checks how long the existing power supply will last for further quality work. This test can also be activated manually - you just need to press and hold the central button of the sensor. The detector will inform about a successful test with short sound and light signals.

You produce, we store

The Fibar smoke detector is a necessary device in your kitchen. Every time you prepare food for your family, the sensor will ensure that you do not forget to turn off the gas or remove the food from the oven. The impending danger of fire will be noticed immediately, and you will be informed about it immediately.

Your home guard

The security of your home is Fibar's top priority. As a result, the Fibar system has been designed from the very beginning to not only provide maximum comfort, but also to ensure that your family and valuables are safe. Fibar smoke, water drain and window/door detectors will ensure the perfect security of your home - rest assured about the safety of your family and property.

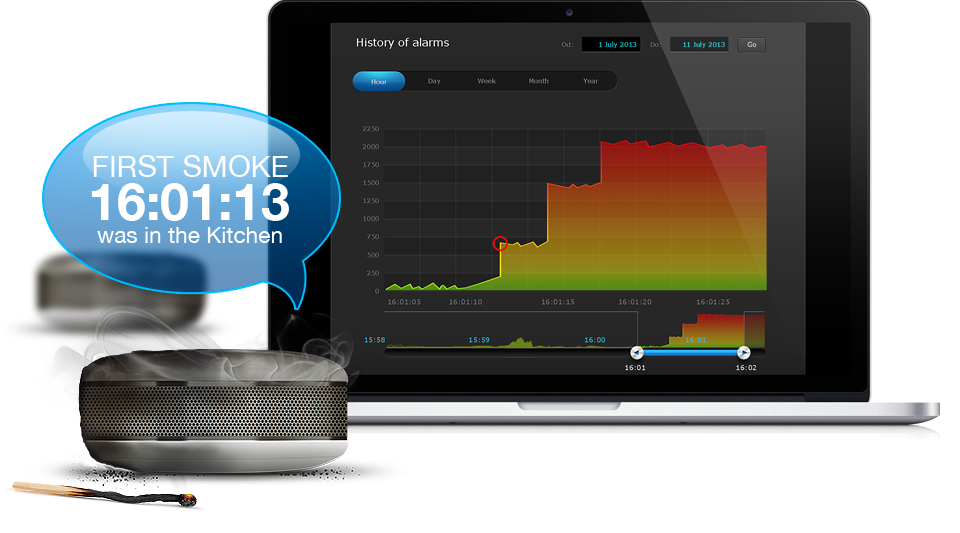

Even the smallest amount of smoke will be captured

The display recorder will record even the smallest amount of smoke in your home. Regardless of whether the house security is on or off, the detector always registers changes in smoke and temperature. You can view the data of the previous period at any time, which will display all recorded changes.

Each alarm is also logged in the memory. You will be able to conveniently view the data of all detectors even when you are away - just connect to your home with your smartphone and conveniently view all the recorded information.

Automatic software update

This advanced technology smoke detector allows you to automatically update the software wirelessly - you will not have to worry about dismantling, updating and re-installing detectors. When new functions that improve the performance of the device appear, the detector will automatically inform you about it - all you have to do is press a few buttons on the control panel and you can continue to enjoy peace of mind - your home is safe.

• Power supply: CR123A
• Radio frequency: 1 mV - 868.4 MHz EU; 908.4 MHz in the US; 921.4 MHz ANZ; 869.2 MHz RU;
• Outdoor/indoor range: 50-30 m
• Operating temperature: 0-40°C

User manual (EN)
