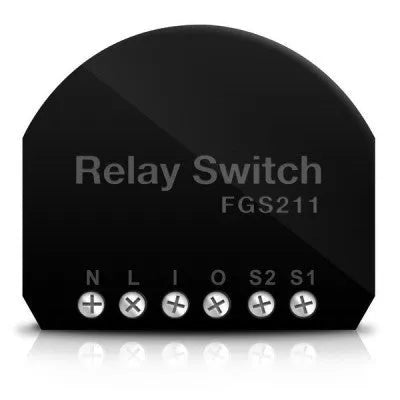

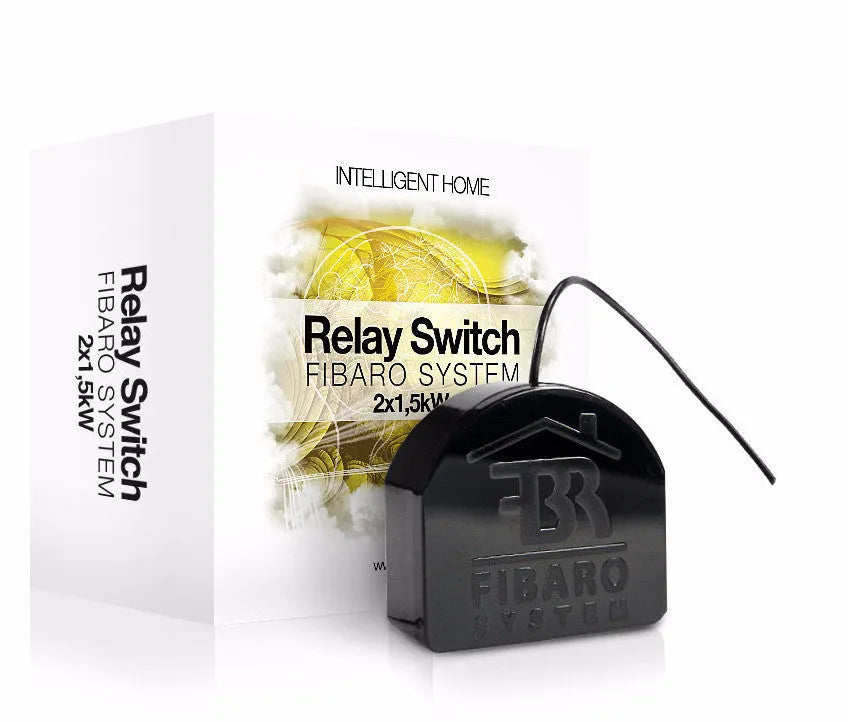

Smart Switch Fibaro Relay Switch 2x1.5 kW

This switch is an element of a wireless home control system, which allows two electrical devices or lighting elements to be controlled wirelessly and manually.

• Power supply: 110 - 230V AC ±10% 50/60Hz; 24-60V DC ±10%
• Radio signal strength: 1mW
• Radio signal frequency: 868.4 MHz
• Control distance: up to 50m outdoors; up to 30m inside (depending on building materials)
• Size: 42 x 37 x 17mm
• Power consumption: < 0.8W

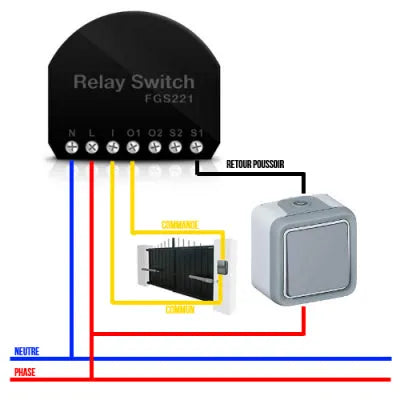

The remote-controlled fibar relay switch is designed to fit in a standard underground switch box or in places where two electrical devices (up to 1.5kW) need to be controlled. It can communicate with any z-wave controller or device. The device can be controlled remotely with smart devices and a computer, as well as manually with bistable or monostable switches. Communication between the user and the device takes place via a Wi-Fi network and the Internet through a central controller. The switch can control AC and DC devices.

• Maximum controlled alternating current (AC) load per output: 8A / 230V 50/60Hz
• Maximum controlled constant current (DC) load per output: 8A / 30V
• Maximum controlled current power (at 230V AC voltage): 2x1.5kW
• Maximum permissible temperature of the electrical circuit: 105 °C
• Operating temperature of the device: 0 - 40 °C
• Diameter of the plaster box for installation: Ø ≥ 50mm

User manual (EN)
