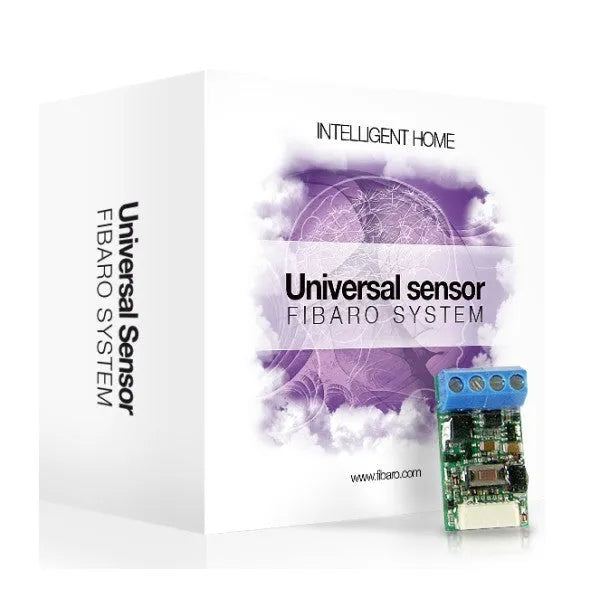

Smart sensor and contact sensor Fibaro Universal Sensor

This device is a wireless element of the home management system that can read any sensor with a contact (relay) output and send their data wirelessly. Can also read digital temperature sensors.

• Power supply: 9 - 30V DC ±10%
• Radio signal strength: 1mW
• Temperature measurement scale: from -55 to +126 °C
• Radio signal frequency: 868.4 MHz
• Control distance: up to 50m outdoors; up to 30m inside (depending on building materials)

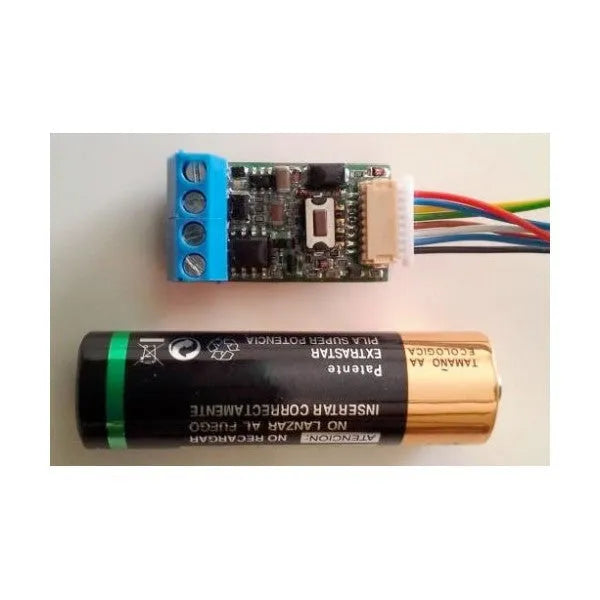

• Size: 27.3 x 14.5 x 12mm

The Fibaro wireless sensor and contact transmitter is a device that can read any sensor with a contact (relay) output, as well as DS18B20 temperature sensors and send data wirelessly. The device can read up to two binary sensors and up to four DS18B20 temperature sensors. The sensor is intended for installation in the housing or in other devices, the functionality of which is to be improved. The sensor can also work in conditions of increased humidity and temperature, depending on the box in which it is installed. The main function of the sensor is the integration of wired and wireless protection and measurement systems into the Z-Wave network. Communication between the user and the device takes place via a Wi-Fi network and the Internet through a central controller.

As a temperature sensor

The module can function as a temperature sensor if you connect the temperature sensor DS18B20 to it. Fibar's smart universal sensor supports two sensors and 4 temperature sensors. This sensor is perfect for expanding the functionality of existing systems and sensors.

Data transfer

This sensor is perfect for transmitting data wirelessly from other sensors, such as sensors for security systems or fire protection systems. Adapted to work in high humidity and high temperature areas.

The solution

It is an excellent solution for integrating existing systems into the Fibar home system.

Features of the smart universal FIBARO sensor

• Controlled by a Fibar home system or another operating on the Z-Wave standard
• Suitable for conventional and parametric alarm sensors (2 can be connected)
• 2 binary sensors can be connected
• Supports 4 DS18B20 temperature sensors

• Inputs: 2 voltage-free and 1 digital
• Outputs: 2 without voltage (relays)
• Maximum output current: 150 mA
• Maximum output voltage: 36V DC / 24V AC ±5%
• Operating temperature of the device: 0 - 40 °C
• Maximum number of temperature sensors: 4
