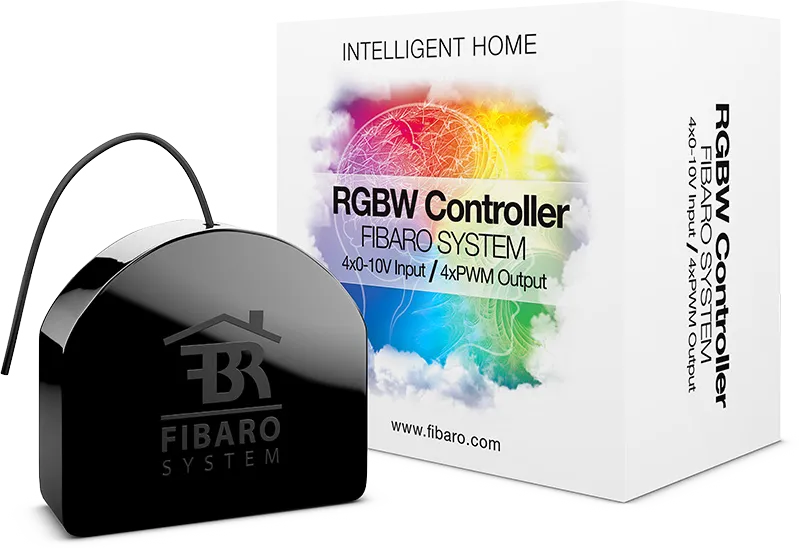

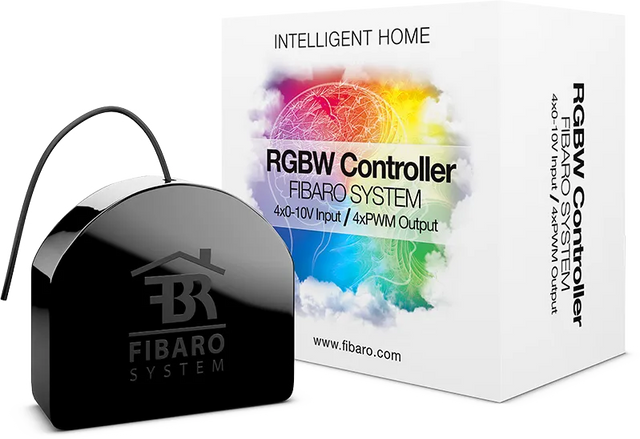

Smart RGBW controller Fibaro Controller

This device is an element of a wireless home control system. It can be used to remotely and manually control multicolored (RGBW) LEDs, LED strips, halogen lamps, low-power fans.

• Power supply: 12-24 VDC
• Radio signal strength: 1mW
• Radio signal frequency: 868.4 MHz
• Control distance: up to 50m outdoors; up to 30m inside (depending on building materials)

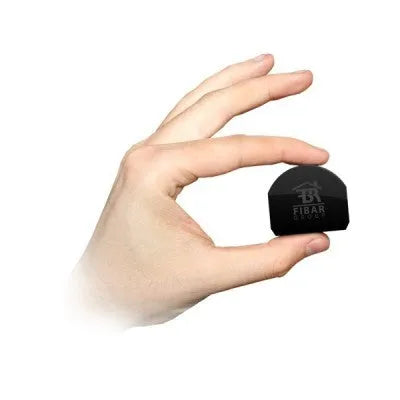

• Size: 42 x 37 x 17mm
• Power consumption: 0.3W

This device is a universal multi-color (RGB/RGBW) LED controller. It uses a PWM (pulse width modulation) signal to control LED, RGB, RGBW LED strips, halogen lamps and hair dryers. It is possible to control devices with 12 or 24VDC voltage. The controller also supports four analog signal 0-10V sensors. All inputs and outputs of the device can be configured to control LEDs or receive analog 0-10V signals. The device can be controlled by smart devices and a computer, and it is also possible to connect potentiometers and switches for manual control of LEDs. Communication between the user and the device takes place via a Wi-Fi network and the Internet through a central controller. The controller is additionally equipped with an energy consumption counter. The device fits in a standard flush-mounted switch box.

RGBW

The Fibaro RGBW controller regulates three or four color LED lights. This allows you to enjoy millions of colors of light. This controller has four analog inputs supporting any sensors, for example: light, wind, pressure or voltage within 0-10 V. Four outputs allow you to control four light sources separately.

Homes for every taste

TLED diodes are often used for home lighting. LED lighting is perfect for modern design. Dimmable lighting can help you create a mood that matches the lighting. LED lighting is economical and relatively inexpensive. This makes it increasingly popular in the home, and it also allows you to create special effects to further enhance your lighting.

Choose the color you like

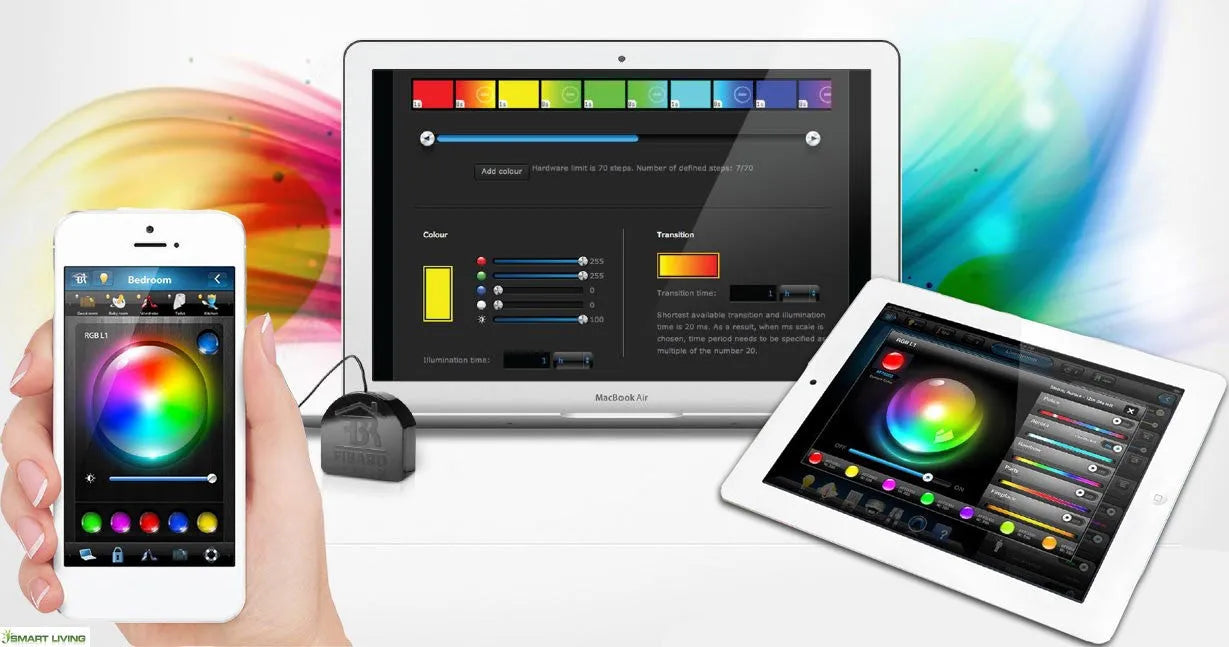

We have created an intuitive user interface for your smartphone or tablet. Using it, changing the lighting colors in individual zones becomes as easy as playing children's games. Columns of your favorite color will change the lighting in the living room or children's room like a magic wand. A convenient control menu will allow you to switch to pastel lighting or adjust the lighting to music. There is also a color spectrum wheel that allows you to choose any color you want.

Create your own light compositions

Lighting compositions can be controlled with the help of the controller.

Create an interior that matches your mood

With the help of this controller, lighting and ventilation of the home environment can be combined into common compositions and activated automatically. This creates an environment that will make your home even cozier.

Home lighting can be informative

With the Fibaro RGBW smart controller, you can create lighting that reacts to changes in the environment. The lighting can also react to air or water parameters, according to which the brightness intensity or color can be adjusted.

Supports analog sensors

This smart controller is perfect for use with analog sensors. It is possible to connect door, window protection, air parameters sensors and thus make them communicate with your Fibaro smart home system. Its help will open up even more possibilities for your smart home.

Can control watering

Using this controller, you can effectively control the irrigation system. A controller with connected sensors can track the real water demand of your manicured lawn or garden and start or stop watering accordingly.

Moonlight can help you save

Yard lighting not only provides comfort to the environment, but it is also additional security for you and your property. Depending on the natural lighting outside, your outdoor lights can be turned on or off, but the intensity of the lighting can also be adjusted automatically.

Will help to take care of children's comfort

Using the RGBW controller, you can monitor the quality of the microclimate in the children's room. By connecting analog sensors to the controller, you can always check the temperature, humidity, and pressure in the children's room.

You can rest assured about the aquarium

The aquarium perfectly complements any interior. Aquarium animals need not only food, but also quality water. By using analog water parameter sensors together with the controller, you can control up to four parameters simultaneously. You can be informed about changes by changing the color of the lighting and or by messages (SMS, E-mail).

Parking assistant in the garage

Using the smart Fibar RGBW controller, you can create a system that will help you park your car in the garage. Using analog distance sensors, colored LED lamps and a controller, it is possible to create lighting that changes depending on the remaining distance to the obstacle.

Four-channel lighting regulator for 12/24 V lights

Fibaro's FGBW smart controller provides the ability to adjust the intensity of the four-channel lighting. Each channel can be adjusted individually. Works with 12 and 24 V lamps.

You can track your electricity consumption live

With the help of the Fibar RGBW controller, you can monitor electricity consumption in real time. If the controller is connected to the Fibaro smart Home system 2, you can control the electricity consumption of four output channels in real time.

Wireless update

You can update the device via wireless technology using the provided function via Home Center 2 anytime as soon as new software is available. You will not have to waste time connecting the device to the computer, just press the button and you will be able to enjoy the updated device.

• Maximum output current: 12A for all outputs in total, 6A per output
• Maximum output power: at 12V - 144W for all outputs in total; at 24V - 288W for all outputs in total
• PWM output frequency: 244Hz
• Operating temperature of the device: 0 - 40 °C
• Diameter of the plaster box for installation: Ø ≥ 50mm

User manual (EN)
