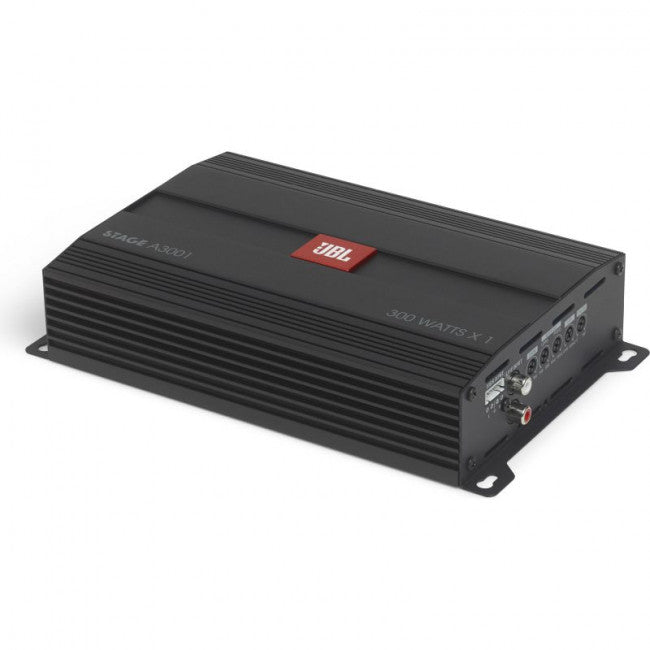

JBL Stage A3001, Mono car audio amplifier

JBL Stage amplifiers are available in a variety of configurations to provide the power and channel count required for full-range and woofers.

• Power: 300W .
• Total peak power: 600W.
• Frequency Band: 10Hz – 320kHz @ -3dB.
• Resistance: 2 Ohms.

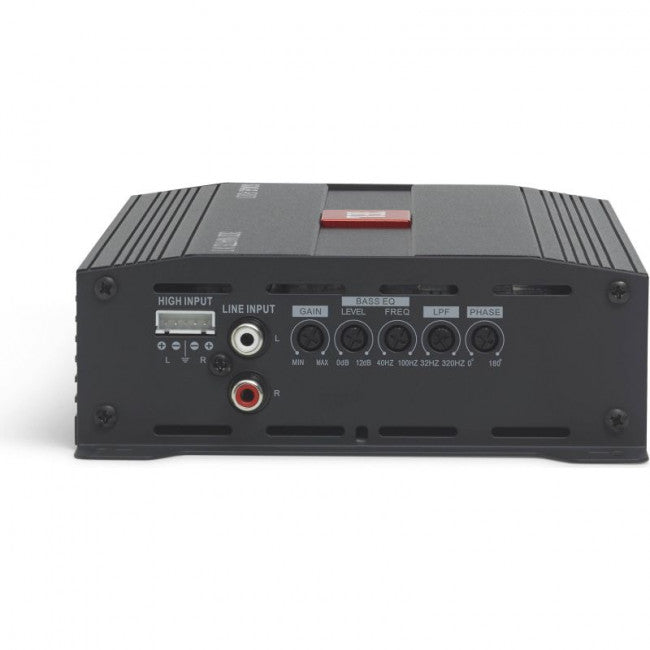

JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwoofers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable—and once they turn on, they'll make a transducer sit up and sing.

SPECIFICATIONS

• Operating voltage 9 - 16V
• RMS power @ 4 ohms N/A
• RMS power @ 2 ohms 300W
• RMS bridged power @ 4 ohms N/A
• Total peak power 600W
• Frequency response 10Hz – 320kHz @ -3dB
• THD + N at rated power (20Hz – 20kHz) <1% Line-in signal-to-noise ratio (reference to 1 watt) <1%
• Line-in signal-to-noise ratio (reference to 1 watt) >75dB
• Maximum high input signal level 12V
• High input maximum sensitivity 0.5V
• Maximum line input signal level 5V
• Line input maximum sensitivity 0.2V

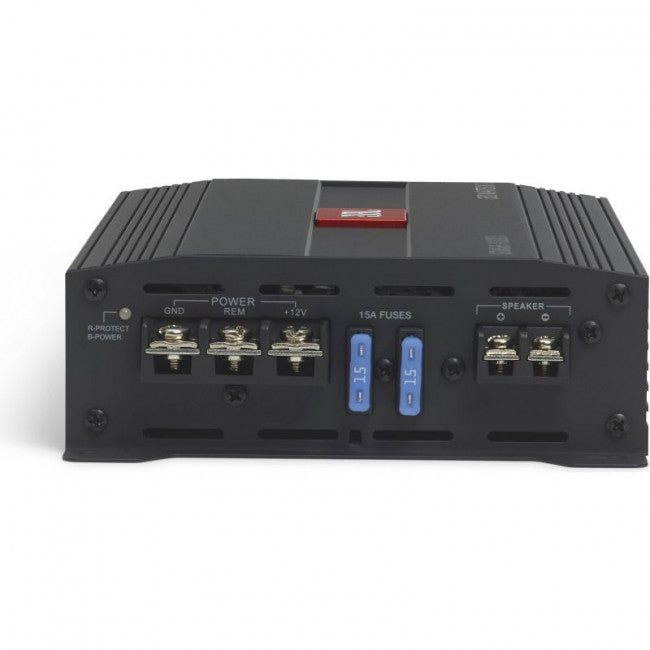

• Quiescent current draw <1.5A Fuse size 2 x 15A Dimensions (H x W x L) 50 x 145 x 241.6mm Weight <1.5A
• Fuse size 2 x 20A
• Dimensions (H x W x L) 50 x 145 x 268.6mm
• Weight 1.806kg

INSTRUCTIONS

User Manual (EN).
