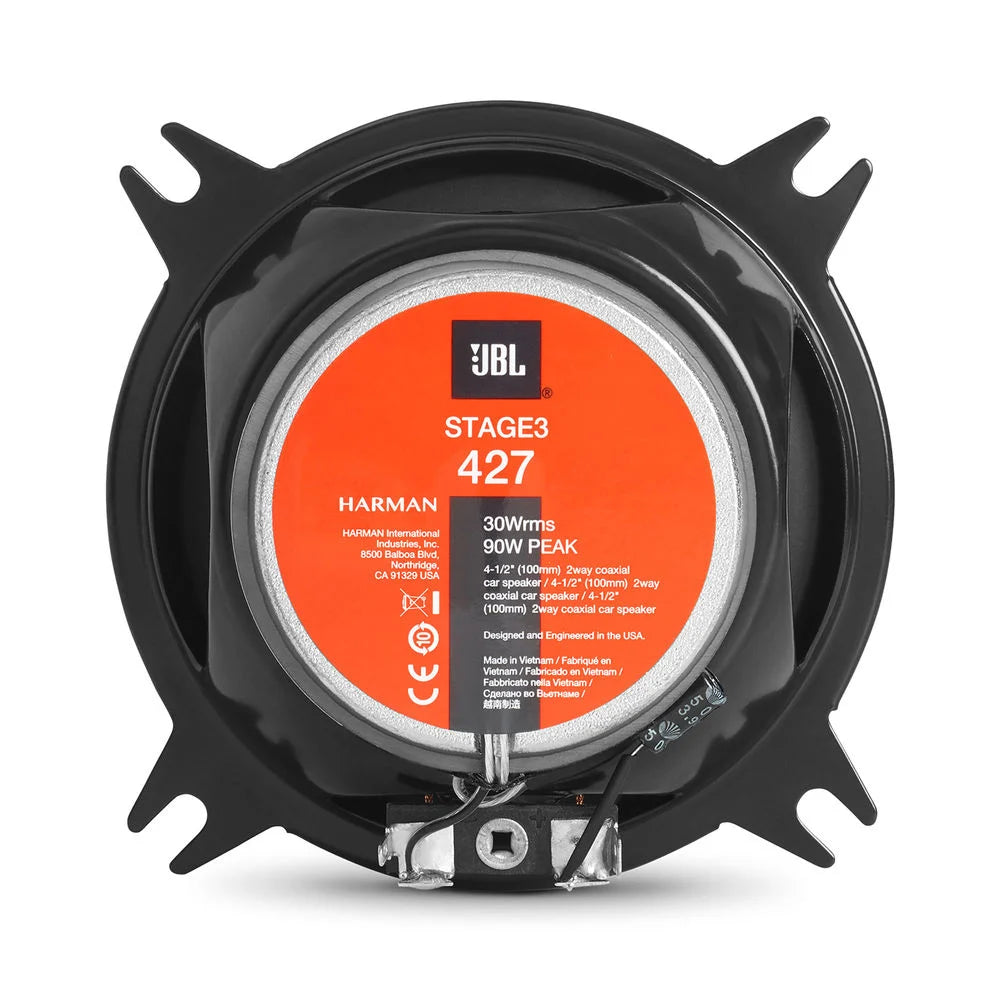

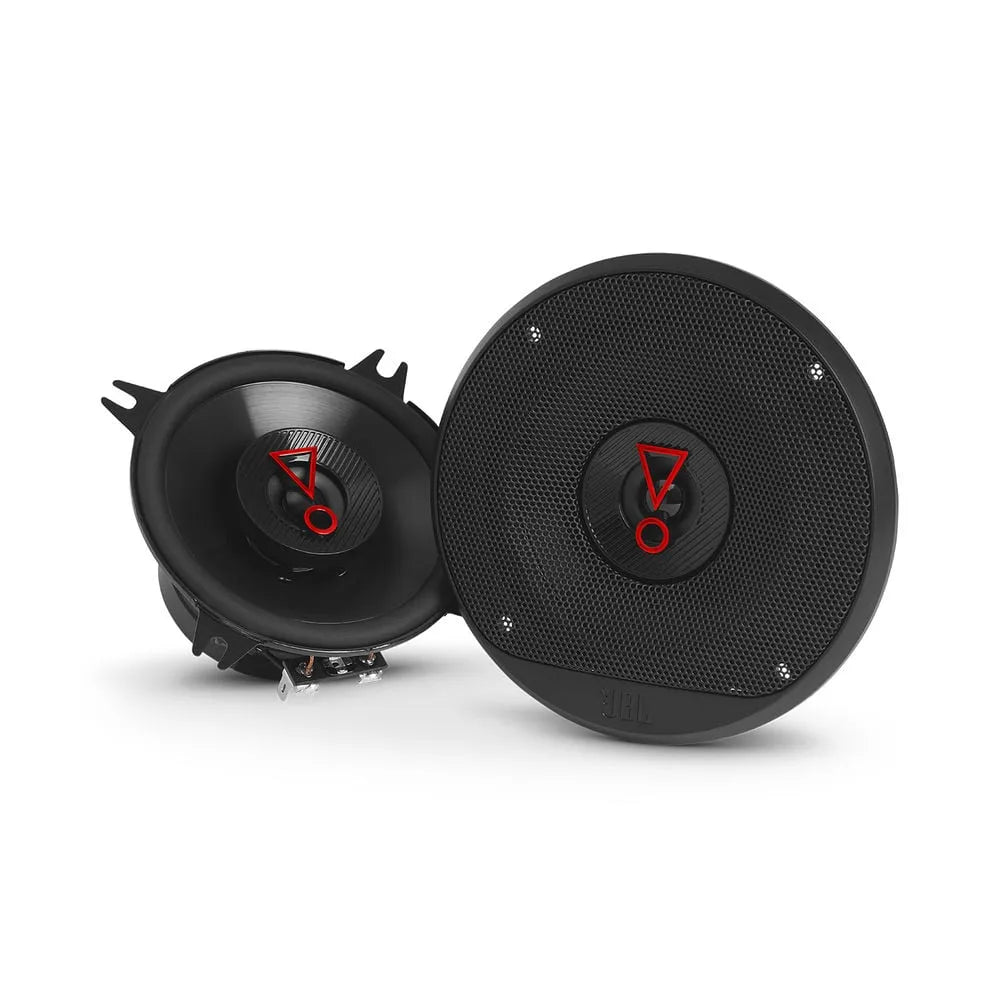

JBL Stage3 427, coaxial car speakers

High-quality JBL-level sound combined with the Stage3 series is a guarantee of a good purchase in the world of car speakers!

• Recommended amplifier power: 60W.
• Frequency band: 75 - 20000 Hz.
• Sensitivity: 90dB @2.83V.
• Resistance: 3 Ohms.

PROPERTIES

• 90 watts Max Each, 30 watts RMS Each
• PEI (Polyetherimide) Dome Tweeters
• Plus One™ polypropylene woofer cones
• Impedance: 3 ohms
• Sensitivity: 90 dB @2.83V
• Mounting Depth: 1.84"

SPECIFICATIONS

• 4" 2-way Coaxial Car Speakers
• Power Handling:
• Peak: 180 watts per pair / 90 watts each
• RMS: 60 watts per pair / 30 watts each
• Plus One™ polypropylene woofer cones
• Rubber speaker surround
• PEI (Polyetherimide) Dome Tweeters
• External Crossover with 0/+3dB Tweeter level control
• Vented basket frame design
• Top-mount Depth: 1.84"
• Cutout Dimensions: 3.62"
• Impedance: 3 ohms
• Frequency Response: 75 - 20000 Hz
• Sensitivity: 90dB @2.83V
• Free-Air Resonance (Fs): 109.1 Hz
• Equivalent Compliance (Vas): 2.21 liters
• Total Speaker Q Value (Qts): 1.50
• Electrical Q Value (Qes): 1.69
• Mechanical Q Value (Qms): 12.9
• Crossover Point: 7,000 Hz

INSTRUCTIONS

User Manual (EN).
