JVC

JVC KW-M560BT, car multimedia

€318.27 EUR 329.00 €

JVC KW-M560BT, car multimedia is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

JVC, KW-M560BT 2-DIN AV multimedia with 6.8" screen, Bluetooth The JVC KW-M560BT short body digital media receiver comes with integrated Bluetooth technology for hands-free calling and wireless music streaming.

  • Automatic pairing for iPhone/Android.
  • Apple Car Play via Android Auto (via USB).
  • 13-band graphic equalizer.
  • Maximum power 4 x 45W
  • MOS-FET amplifier
  • High/low pass filter.
  • Bluetooth functionality.

JVC KW-M560BT the short-body digital media receiver comes with built-in Bluetooth technology for hands-free calling and wireless music streaming. Android screen mirroring via USB applications such as Waze Navigation and Google Maps as AndroidAuto or Apple CarPLay can be displayed and controlled via the 6.8-inch touchscreen. An optional rearview camera can be connected to enable reverse parking. This device also features iPhone/iPod music playback. Please note that this model does not have a CD mechanism. However, this allows the product to be reduced to 75mm in depth, which will fit into vehicles with less audio space in the dashboard than traditional products.

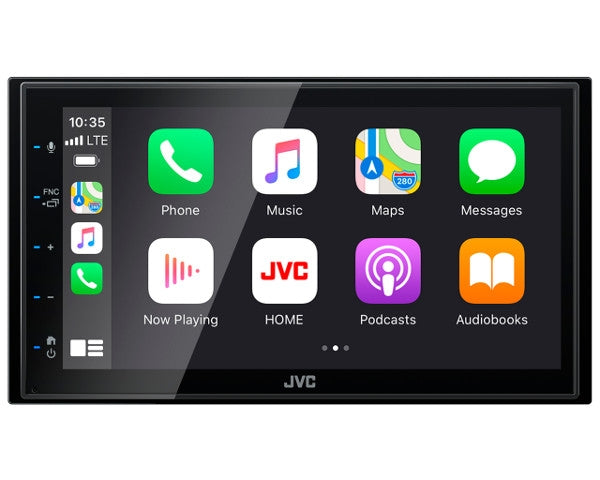

Apple CarPlay™ - Connect via USB

A smarter, safer and more fun way to use your iPhone in your car. Apple CarPlay gives iPhone users an intuitive way to make calls, use maps and listen to music with just one word or touch.
With the latest iOS version (iOS 13.0 and later), third-party navigation apps such as Google Maps™ and Waze™ are supported.

Android Auto™ - Connect via USB

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it's designed to minimize distractions so you can focus on the road.

Mirror for Android Phone - Connect via USB

After installing the Mirroring OA for JVC app, your Android phone can be smoothly displayed on the receiver screen via USB. You can enjoy various apps like Waze, YouTube and Instagram. Touch control is possible both from the screen and from the smartphone.

SPECIFICATIONS

Screen
  • 6.8" bright, beautiful touch screen (6.8" W VGA)
  • blue button lighting
  • automatic lightening/darkening
Media playback
  • Via USB audio: MP3, WAV, WMA, AAC, FLAC
  • Via USB video: H.264, WMV, MPEG 1/2, MPEG 4, AVI/MKV
Bluetooth
  • Bluetooth version 3.0 (microphone included)
  • "Free hands"
  • Audio playback and control (A2DP, AVRCP)
  • Voice dialing
  • Automatic pairing (android/iphone)
iPod/iPhone control
  • CarPlay via USB
  • iPod/iPhone music playback via USB or bluetooth
USB
  • USB 1x at the back
  • USB charging 1.5A
Radio
  • Radio data system (RDS)
  • 20 programmable stations (15 FM + 5 AM)
  • Audio playback and control (A2DP, AVRCP)
Audio
  • Maximum power 45Wx4
  • Front and rear 21Wx4
  • MOS-FET amplifier
  • High/low pass filter
  • Automatic pairing (android/iphone)

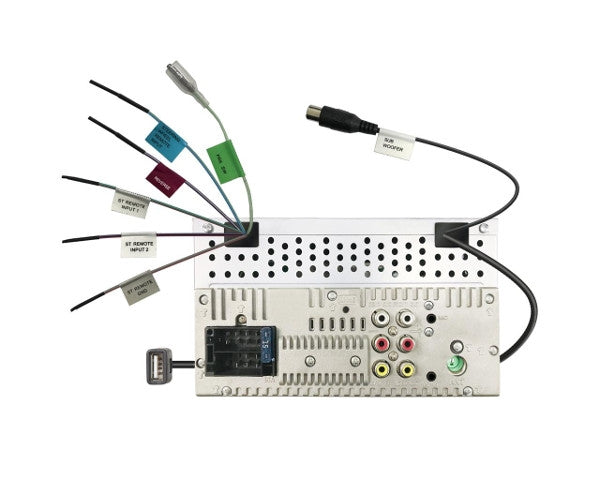

Will input and output
  • Mini Jack connector AV/Video
  • RCA video output
  • Connector for rear view camera
  • Line outputs 2 pairs (front + end) + subwoofer
  • Adjusting the bass levels
  • Automatic pairing (android/iphone)
Other
  • Short
  • Remote control (RM-RK258 )
  • The possibility of subordinating control from the steering wheel
  • ISO connector
  • Dimensions 182 x 112 x 75 (mm)
  • Weight 1.9 kg

INSTRUCTIONS

User Manual (EN)>
