KEF

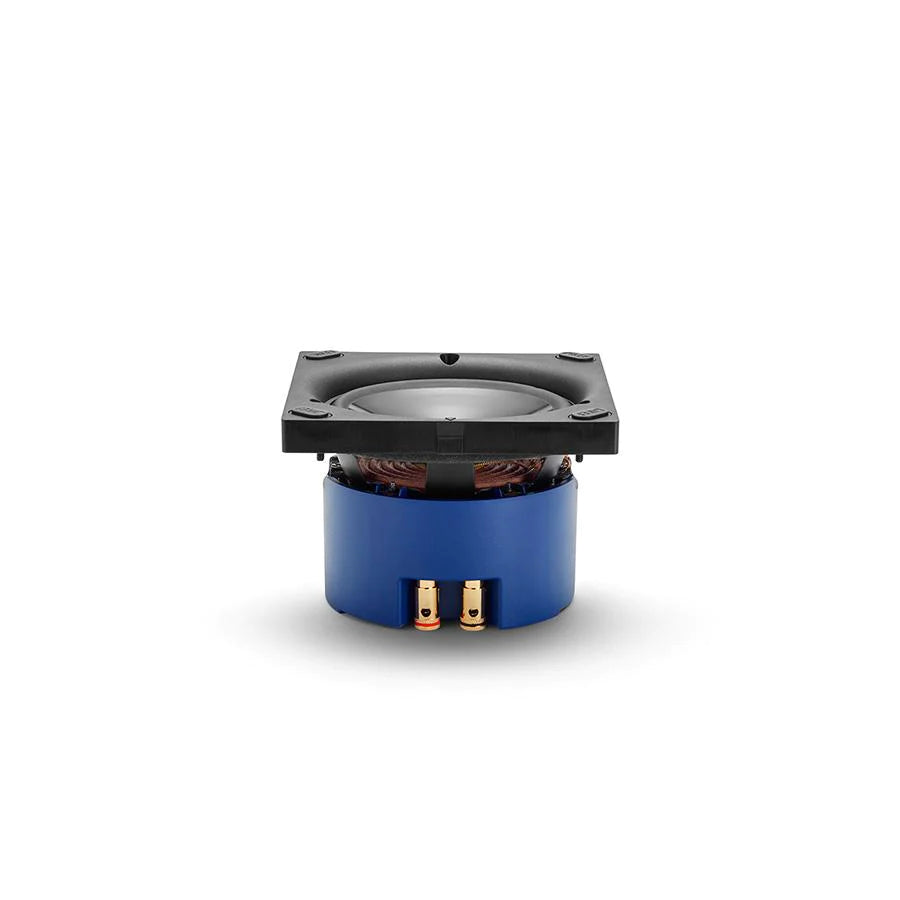

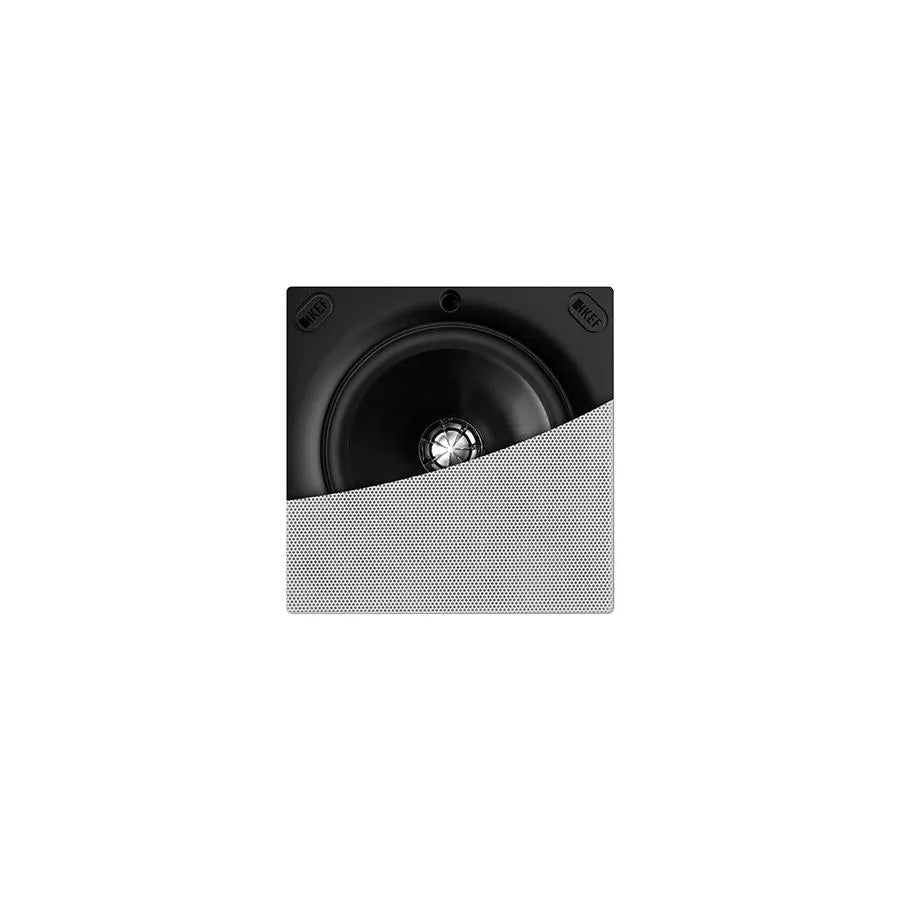

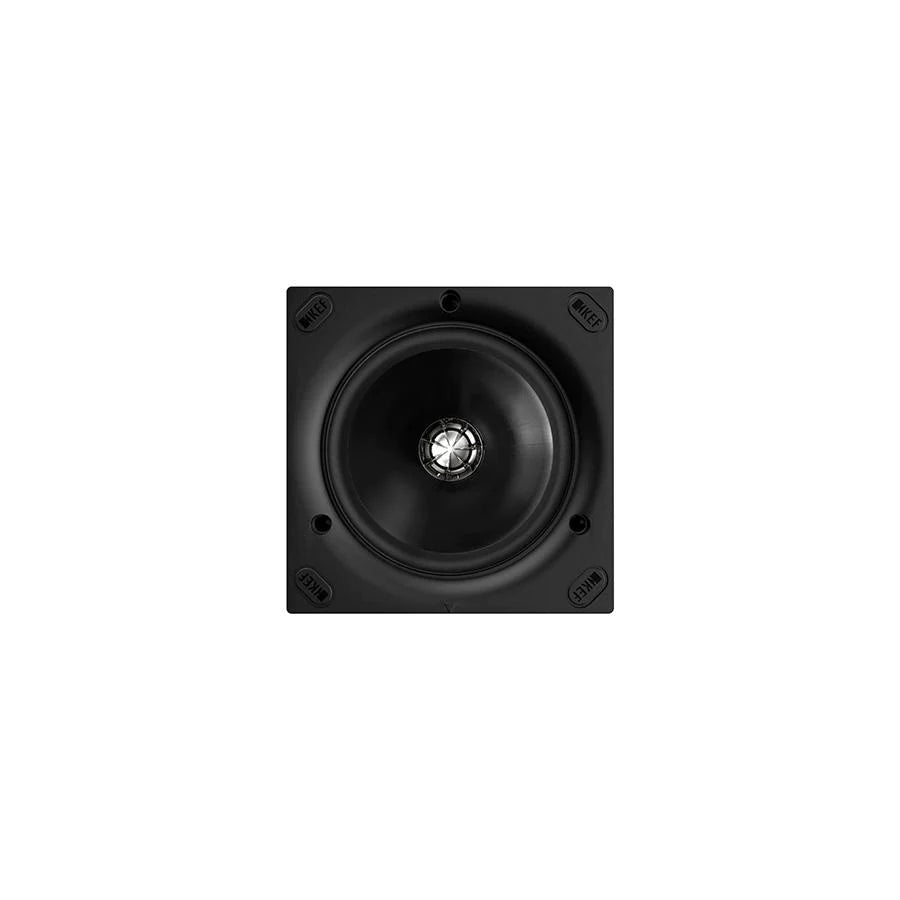

KEF Ci130QSfl, architectural speaker (installation depth: 101mm)

€450.00 EUR

KEF Ci130QSfl, architectural speaker (installation depth: 101mm) is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

KEF Ci130QSfl is a built-in wireless architectural speaker designed for high-quality sound and easy installation. Designed for both new builds and retrofits, the Ci130QSfl mounts flush to the wall or ceiling, making it ideal for spaces with clean lines and minimalist features.

  • Recommended amplifier power: 5 0 - 350 W.
  • Frequency band: 43 - 28kHz.
  • Sensitivity: 89dB.
  • Resistance: 4 ohms.

Ci130QSfl

Part of the Ci-Q Series, Ci130QSfl is built around KEF's signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format. Select a property

Intuitive Installation

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.

SPECIFICATIONS

Nominal Impedance 8 Ohms Sensitivity 87dB (2.83V/ 1m) Frequency Response (±6DB)
Open-Backed 45Hz - 34kHz Frequency Range (-10DB) 38Hz-30kHz Nominal Coverage 130 MAX SPL (DB) 103 Crossover Frequency 3.8kHz Drive Units LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.) Recommended Amplifier Power 10-100W
Recommended High-Pass Filter (HZ) 50 Hz Product External Dimensions 200.5 x 200.5 x 103.6 mm
(7.9 x 7.9 x 4.08 in.) Cut-Out Dimensions 158 x 158 mm
(6.22 x 6.22 in.) Mounting Thickness Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 8mm (0.315in.) Even Weight 1.6kg (3.53Ibs.) Mounting Depth From Surface 101mm (3.98in.) Optional Rough In Frame Nah Optional Rear Enclosure Nah Ideal Rear Volume(L) 15 Minimum Rear Volume(L) 10 Safety And Regulatory Compliance Nah

INSTRUCTIONS

User Manual (EN).

Categories

KEF Ci130QSfl, architektūrinis garsiakalbis
KEF

KEF Ci130QSfl, architectural speaker (installation depth: 101mm)

€450.00 EUR

KEF Ci130QSfl is a built-in wireless architectural speaker designed for high-quality sound and easy installation. Designed for both new builds and retrofits, the Ci130QSfl mounts flush to the wall or ceiling, making it ideal for spaces with clean lines and minimalist features.

DESCRIPTION

Ci130QSfl

Part of the Ci-Q Series, Ci130QSfl is built around KEF's signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.
Select a property

Intuitive Installation

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.


TECHNICAL DATA

SPECIFICATIONS

Nominal Impedance
8 Ohms
Sensitivity
87dB (2.83V/ 1m)
Frequency Response (±6DB)
Open-Backed
45Hz - 34kHz
Frequency Range (-10DB)
38Hz-30kHz
Nominal Coverage
130
MAX SPL (DB)
103
Crossover Frequency
3.8kHz
Drive Units
LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)
Recommended Amplifier Power
10-100W
Recommended High-Pass Filter (HZ)
50 Hz
Product External Dimensions
200.5 x 200.5 x 103.6 mm
(7.9 x 7.9 x 4.08 in.)
Cut-Out Dimensions
158 x 158 mm
(6.22 x 6.22 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 8mm (0.315in.)
Even Weight
1.6kg (3.53Ibs.)
Mounting Depth From Surface
101mm (3.98in.)
Optional Rough In Frame
Nah
Optional Rear Enclosure
Nah
Ideal Rear Volume(L)
15
Minimum Rear Volume(L)
10
Safety And Regulatory Compliance
Nah

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
