Kenwood | Bar code: 0019048227331

Kenwood DMX-120BT, multimedia

Name: Kenwood DMX-120BT, multimedia
Brand: Kenwood
SKU: DMX-120BT
Price: 247.20 EUR
Availability: InStock

€247.20 EUR

Kenwood DMX-120BT, multimedia - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA

INFORMACIJA

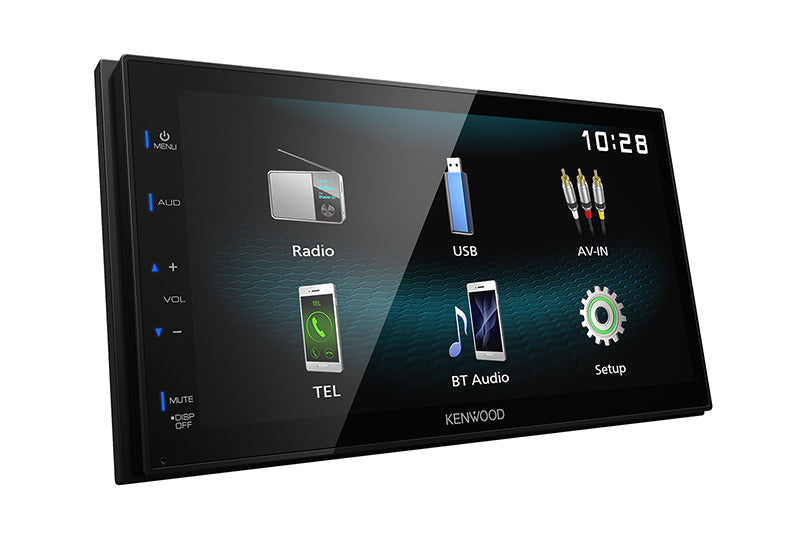

DMX120BT is a new generation of digital media with a large 6.8 inch screen, bluetooth and smartphone control.

6.8' WVGA touch screen
Bluetooth hands-free and music playback
Android mirroring technology. (multiple of the phone's image on the screen, connects with a cable)
Rear camera connector

DESCRIPTION

Properties

Clear resistive 6.8" WVGA touch screen

Android USB mirroring ready

7 band equalizer

3 preouts, (2.0V) (Front/Rear/Sub(mono))

AV-in, Video-out & RCAM-in

Bluetooth handsfree & audio streaming built-in

Rear USB, 1A Charge

MP3, WMA, AAC, WAV & FLAC audio file playback

MPEG1/2 & MPEG4, H.264, WMV & MKV video file playback

Short body, only 75mm installation depth

TECHNICAL DATA

General Features

DIN Size	2 DIN
Smooth GUI	Yes
Key Illumination	Blue LED
Touch sensor	Yes
Touch Sensor Tone	Yes
Optional IR remote controller	Yes, KNA-RCDV331
Digital Clock (24H)	Yes
ISO connector	Yes
Bluetooth unit built-in	Yes

Monitor Features

Screen Type	6.8" Wide VGA
High Resolution VGA Display	Yes
LCD type	6.8 inch Wide VGA
LCD backlight	LEDs
Display Mode	1 Mode: Full
Touch Panel	Clear resistive
Display Type	Glare
NTSC/PAL judge	Yes (Auto)

Multimedia GUI Features

OSDC Type	Graphic
Opening Screen Type	standard
R-CAM interrupt	Yes
Menu text in selectable language	English(Default), Espagñol, Français, Deutch, Italiano, Nederlands, Finnish, Russian, Português, Polski, Cestina, Magyar.

Tuner Features

Station Select	Auto / Manual
FM Reception	Yes
AM Reception	Yes, (MW Reception)
Tuner Presets (FM/AM)	30 Presets (18FM / 12AM)
Up/Down Seek/Scan	Yes
Automatic Memory Entry (AME)	Yes
Radio Data System	Yes
Traffic Information	Yes
Local search	Yes
Auto TP search	Yes
Enhanced Other Networks Function (EON)	Yes
Program Type Function (PTY)	Yes

Bluetooth General Features

Hands Free Profile (HPF)	V1.6
Audio Streaming (A2DP)	Yes, (SBC)
Phonebook Access Profile (PBAP)	Yes
Voice Control	Yes
High-quality noise canceling microphone	included

CE_Playable Audio file

AAC (*.m4a) files are playable	USB
AAC (*.aac) files are playable	USB
MP3 files are playable	USB
WMA (.wma) files are playable	USB
WAV (.wav) files are playable	USB
FLAC files are playable	USB

CE_Playable Video file

MPEG1/2 files are playable	USB
MPEG4 files are playable	USB
WMV files are playable	USB
H.264 files are playable	USB
mkv files are playable	USB
JPEG files are playable	USB

USB Features

Rear USB Terminal	Yes
USB Type	2.0 Full speed
MP3 playback with ID3 Tag Display	Yes
WMA (Windows Media File) playback	Yes
AAC (Advanced Audio Codec) playback	Yes
MPEG1 Video decoder	Yes
MPEG2 Video Decoder	Yes
MPEG4 Video Decoder	Yes
Repeat/Scan/Random search	Yes
Repeat / Random Play	Yes
1A Charge Capability for Smartphones.	Yes

Audio features

Max. Output Power (MOSFET Power IC)	4 x 50W
Pre-out	3RCA: Front/Rear/Subwoofer
Pre-out Output Level	2V
Low Pass Filter (LPF)	Yes
Subwoofer Reference Level Adj.	Yes
Balance/Fader Control	Yes
Loudness Control	Yes
Equalizer	Yes, 7-bands
Beep On/Off	Yes

Video Features

Audio Video Output	Yes
Audio/Video Input	Yes
Video-In for Rear-view Camera	1 dedicated video input (RCA)

Connectivity

USB interface
OEM Wired Remote Control ready	Yes
Parking sensor (handbrake) wire	Yes
2-way (Tel/Navi) mute wire	Yes
AV-Input (Non Switchable)	(RCA)
AV Output	Video only (RCA)
Reverse sensor wire	Yes
Rear View Camera Input
FM Antenna Input
External microphone input

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)	Yes
FM Usable Sensitivity	12.2μV/75ohm (S/N 26dBf)
FM Quieting Sensitivity	19.2μV/75ohm (S/N 26dBf)
FM Frequency Response	30Hz ~ 14kHz (± 3dB)
FM Signal to noise ratio (Mono)	55dB
FM Selectivity(DIN)	over 70dB (±400kHz)
MW range: 531kHz - 1611kHz (9kHz step)	Yes

Bluetooth specifications

Technology	bluetooth V2.1+EDR
Frequency	2.402 - 2.48 GHz
Output power	+4dBm(max), 0dBm (AVE) power class 2
Maximum range	Line of sight approx. 10 meters
Handsfree profile (HFP)	Yes, V1.6
Advanced audio distribution profile (A2DP)	Yes, V1.2
Audio Codec	SBC
Audio/Video remote control profile (AVRCP)	Yes, V1.3
Phonebook access profile (PBAP)	Yes, V1.1.1

USB Specifications

USB Version compatibility	2.0 Full Speed
File System	FAT 16/32
Maximum Supply current	1000mA
D/A Converter	24 bit
MPEG1 Decoder	MPEG-1 with MPEG Audio Layer 2
MPEG2 Decoder	MPEG-2 with MPEG Audio Layer 2
MPEG4 Decoder	yes
MP3 Decoder	Compliant with MPEG-1/2 Audio Layer-3
WMA Decode	Compatible with Windows Media Audio
AAC Decode	"m4a" & "aac" file encoded by AAC-LC format
S/N Ratio	99dB (1kHz)
Dynamic Range	99dB

Audio Specifications

Maximum Power	50W x 4
Output Power (DIN45324,+B=14.4v)	21W x 4
Preout Level	2000mV / 10kOhm,
Preout Impedance	≤ 600 Ohms
Speaker Impedance	4Ohm ~ 8Ohm
Graphic Equalizer	7-Try
G. EQ. Frequency (Hz)	62.5Hz - 16kHz
G. EQ. Gain (dB)	-7 / ... / +7
Low Pass Filter Frequency (Hz)	80 / 120 / 160 / Off

Video Specifications

Color System of External Video Input	NTSC/PAL
External Video Input Level (RCA)	1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA)	1.8 V / 10 kOhm

Monitor Specifications

Screen size (Diagonal)	6.75 Inches Wide
Screen Size (WxH)	151.8 x 79.7mm
Display system	Transparent TN LCD Panel
Drive system	TFT Active Matrix System
Number of Pixels	1152000pixels (800(H) x 480(V) x RGB)
Effective pixels	99.99%
Pixel arrangement	RGB Striped
Back lighting	LED (Light Emitting Diode)

General Specifications

Operating voltage	14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption	10A
Dimensions (WxHxD)	182 x 112 x 74.5mm
Weight	900 gr.
Operation Temperature Range	-10°C ~ 60°C

Accessories

Release keys	2 pieces
Escutcheon	Yes
Installation Sleeve	Yes
Handsfree Microphone	with 3 m cable
