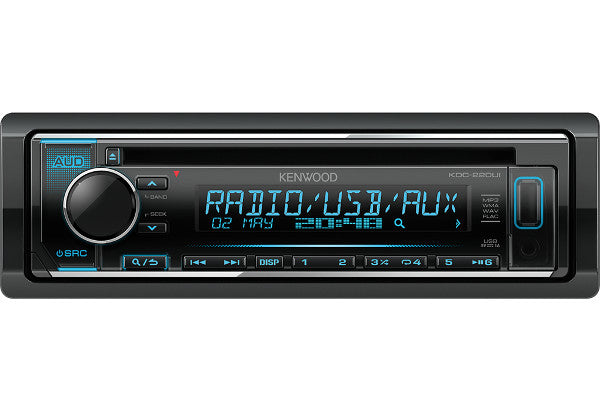

Kenwood, KDC-220UI CD/USB MP3/WMA car stereo with AUX input

€93.00 EUR

Kenwood, KDC-220UI CD/USB MP3/WMA car stereo with AUX input is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

Kenwood, KDC-220UI CD/USB MP3/WMA car radio CD player with front USB and AUX connections.

13 digit, 1.5 line wide LCD display.
MP3, WMA playback (CD/USB).
WAV and flac (96kHz/24bit) file playback (USB).
3-band parametric equalizer.
1 RCA output (2.5V).
Front AUX input and illuminated USB with dust cover.
iPhone & Android Music Playback.

DESCRIPTION

Main features

Selectable color lighting
13 digit, 1.5 line wide LCD display
MP3, WMA playback (CD/USB)
WAV and flac (96kHz/24bit) file playback (USB)
3-band parametric equalizer
1 RCA output (2.5V)
Front AUX input and illuminated USB with dust cover
iPhone & Android Music Playback
Charging smartphones 1A
Less than 1mA current consumption when the screen is off

Main specifications

DIN size: 1 DIN
Removable panel
Button lighting: optional LED
Spin control
Highlighted button: for hands-free and audio transmission
Backup memory: menu settings
Mute with soft return
Screen touch tone
Digital clock (24H)
Screen off function (20/40/60 min.)
Connector: Mitsumi, 16 pin
ISO Connector: New Mitsumi to ISO cable

TECHNICAL DATA

SPECIFICATIONS

Display properties

Screen Type: Liquid Crystal Display (LCD)
Screen layout: 2 lines of text + assigned icons
Vertical liquid crystal display
Screen illumination: selectable RGB LED
Screen Dimming Control: Manual / Timer
Brightness control: 0 - 31 range
Demo mode
Selectable menu language: English/Spanish/Russian
On-screen tag language: English, Spanish, Russian, Greek

Exterior design features

Finishing plate: black
Volume and control button or dial: chrome
Color of buttons: black
Panel removal button illumination: red LED
Button lighting: RGB LED in selectable colors
Illumination of USB and AUX connections: Selectable colors RGB LED
Selectable color lighting
Lighting effect
Lighting strip

Radio features

Radio station selection: manual / stored
FM receiver
AM (MW/LW) receiver
Ability to save channels (FM/AM): 24 saved radio stations (18FM / 6AM)
Storing radio stations without backup power
Ability to store mixed radio stations (FM & AM): 6 radio stations can be stored
Forward/backward search
Automatic Save (AME)
FM Stereo / Mono selection
Radio Data System (RDS)
Radio Text Plus
Traffic information
Local search
AF Regional: Selectable: AF/AF Reg/OFF
Automatic TP search
Enhanced Other Networks Feature (EON)
Program Type Function (PTY)

CE plays audio files

MP3 files are played via: CD/USB
WMA (.wma) files are played via: CD/USB
WAV (.wav) files are played via: USB
FLAC files are played via: USB

CD properties

CD-R/RW compatible
MP3, WMA and AAC playback
CD text with special character support: English, Spanish, Russian, Greek
DAC processing: 24bit
0-bit squelch
Random function: DISC Random/Random OFF
Repeat function: Track Repeat/All Repeat

USB features

USB connection: On the front part with dust protection
USB type: 2.0 High speed
Changing media
Android USB Mass Storage Class (MSC)
Android Open Accessory Support (AOA): V 2.0
Repeat/Quick/Random Search
Repeatable/random playback
Direct search
Updated recovery
Time display
Smartphone battery charging with 1A current.

iPod features

Compatible with iPod & iPhone *
USB direct control (Audio, 1 wire, Lightning connector) with optional cable KCA-iP103
Music playback
Alphabetical search
Skip search
Related search
Direct search
iPod EQ mode
Hand control
App and iPod control mode
Spotify App
Reverse search
Battery charging + power management
*Requires the latest Apple software

Audio properties

Maximum output power: 50W x 4
MOSFET Power ICs
Aux type: Mini-jack, on the front
Outputs: 1 line output RCA
Voltage of linear outputs: 2.5V
Outputs front/subwoofer switching
Subwoofer detailed settings
Tone control / Easy EQ: 13 bands, 8 presets
Balance/Fader/Loudness control
Bass Boost Circuit: Off/+1/+2/+3/+4/+5
Mute (-20dB) with soft return
Systema Q: Preserves EQ
Parametric EQ + Presets: 3-band Parametric EQ with 8 presets.
Low pass filter
Speaker size selection: Off/10cm/13cm/16cm/6x9inch
Kenwood Sound Reconstruction
Drive EQ

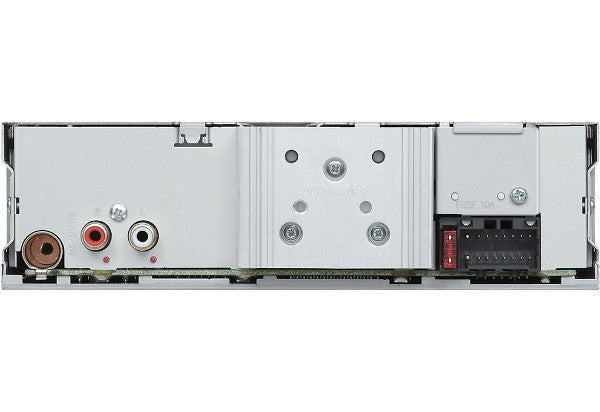

Connectors

USB and AUX input on the front
OEM wired remote control
DC Wire: Mitsumi to ISO
Power Control (P.CON) cable
Amplifier outputs: RCA: Front/Rear/Subwoofer
FM Antenna input

Radio specification

FM range: 87.5Mhz - 108MHz (50Khz interval)
FM used sensitivity: 0.71μV/75ohm (S/N 30dBf)
FM mute sensitivity: 2μV/75ohm (S/N 46dBf)
FM frequency response: 30Hz ~ 15kHz (± 3dB)
FM signal-to-noise ratio (Mono): 64dB
FM Stereo separation (1kHz): 40dB
MW range: 531kHz - 1611kHz (9kHz step)
MW used sensitivity: 28.2μV
LW range: 153kHz - 279kHz (9kHz step)
Sensitivity used for LW: 50μV

Codec specification

MP3 format: MPEG 1/2 Audio Layer 3-Files
WMA format: according to Windows Media Audio
WAV format: RIFF signal audio format (for linear LinearPCM only)
FLAC format: FLAC files (up to 96kHz/24bit)

CD specification

Laser diode: GaAIAs
Digital filter (D/A): 8 x digital filter
Digital/analog converter: 16 Bit
WOW and Vibration: Below measured limits
Frequency response: 20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion: 0.01% (1kHz)
Signal to noise ratio: 105dB (1kHz)
Dynamic range: 90dB
Channel separation: 85dB
MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder: Compatible with Windows Media Audio

USB specification

Compatible USB version: USB 2.0 High Speed
File system: FAT 32/16/12
Maximum current used: 1500mA
D/A converter: 24bit
MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder: Compatible with Windows Media Audio
WAV decoder: Linear - PCM files
flac decoder: FLAC files up to 96kHz/24bit

Audio specification

Maximum power: 50W x 4
Output power (DIN45324,+B=14.4v): 22W x 4
Output level: 2500mV / 10kOhm,
Output resistance: ≤ 600Ohm
Speaker impedance: 4Ohm ~ 8Ohm
AUX frequency response: 20Hz ~ 20kHz (±1dB)
AUX maximum input voltage: 1000mV
AUX input impedance: 30kOhm

Attachments

Removal keys: 2 pcs.
Decorative bow
Mounting drawer
DC power cable (Molex to ISO): 15 cm

General specifications

Operating voltage: 14.4V (10.5~16V allowed)
Maximum current consumption: 10A
Current consumption with screen off: less than 1mA
Dimensions (WxHxD): 182 x 53 x 158mm
Weight: 1300 gr.
Operating temperature range: -10°C ~ 60°C

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
