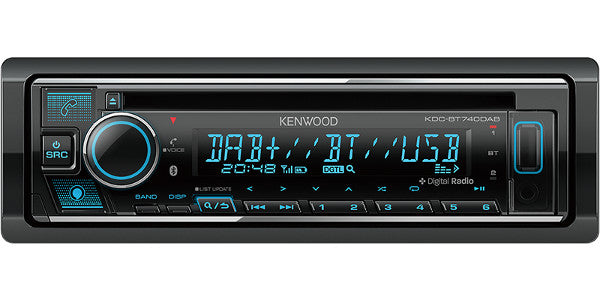

Kenwood, KDC-BT740DAB CD/USB MP3/WMA car stereo with AUX input

€179.00 EUR

Kenwood, KDC-BT740DAB CD/USB MP3/WMA car stereo with AUX input is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

Kenwood, KDC-BT740DAB CD/USB MP3/WMA car stereo with AUX input, Bluetooth and DAB+ radio.

Bluetooth music listening and "hands free"
Front USB and AUX connections.
iPhone/Android music playback.
flac playback (48kHz - 16bit).
1 RCA output / 2.5V.
3-band EQ for easy tuning.

DESCRIPTION

Main features:

Bluetooth music listening and "hands free"
Front USB and AUX connections
Charging smartphones with 1.5A current via USB
iPhone/Android music playback
flac playback (48kHz - 16bit)
1 RCA output / 2.5V
3-band EQ for easy tuning
Less than 1mA consumption in dark mode
White screen and red button lighting
Amazon Alexa
Kenwood remote control app for phone

General features:

DIN size: 1 DIN
Removable panel
Button illumination: Red
Volume and control wheel
Highlighted button: iPod / USB
Backup memory: Only for saving radio stations
Screen touch tone
Digital clock (24H)
Power off function (20/40/60 minutes)
ISO Connector: New Mitsumi to ISO cable
USB interface x 1
Software update

TECHNICAL DATA

SPECIFICATIONS

Screen features:

Screen Type: Liquid Crystal Display (LCD)
Display size: 13 segments x 13 digits
Vertical alignment liquid crystal display
Screen illumination: White LED
Screen Dimming Control: Manual / Timer
Brightness control: 0 - 31 range
Demo mode
Selectable menu language: English, Spanish, Russian
Language tag display: English, Spanish, Russian and Greek

Exterior design features:

Front/Edges: Black
Volume and control buttons or dial: Chrome
Panel finish: Black
Panel removal button illumination: Red
Button illumination: Red
Screen illumination: White LED
Brightness control (buttons): 0 - 31 range
Brightness control (screen): 0 - 31 range
Screen dimming control (buttons): Manual / Set timer
Screen dimming adjustment: Manually / Set timer
Dust protection for front connectors

Radio features:

FM receiver
AM (MW/LW) receiver
Ability to save channels (FM/AM): 24 saved radio stations (18FM / 6AM)
Storing radio stations without backup power
Ability to store mixed radio stations (FM and AM): 6 radio stations can be stored
Search type (Auto1 / Auto2 / Manual)
Forward/backward search
Automatic Save (AME)
FM Stereo / Mono selection
Radio Data System (RDS)
Radio Text Plus
Traffic accident information
Local search
Automatic TP search
Enhanced Other Networks Feature (EON)
Program Type Function (PTY)
PTY News: Off/0/10/20/.../80/90min

CE DAB radio features:

DAB+ radio receiver
Advanced search
General search
Search mode: Auto1/Auto2/Manual
Saving radio stations: 6 radio stations * in 3 bands
Automatic Radio Station Memory (AME)
Auto Maintain Memory (AME)
List of radio stations in alphabetical order
List of saved stations
Alphabetical search
Related radio stations
PTY audio interrupt standby mode
Notification audio interrupt standby mode
DAB-RDS integrated TI
Traffic accident information
DAB-AF (alternative frequencies)
The priority of DAB
DAB-DAB/DAB-FM automatic switching
Easy DAB-FM transition
DLS function
DCR (Dynamic Range Control)
DMB (Digital Multimedia Broadcast) support
PTY (Program Type) search
PTY (Program Type) Review
Message Switching (ASW) option
Antenna power management

CE playable audio files:

MP3 files are played via: USB
WMA (.wma) files are played via: USB
WAV (.wav) files are played via: USB
FLAC files are played via: USB

USB features:

USB connection: USB 2.0 (Full Speed) on the front
Android USB Mass Storage Class (MSC)
Android Open Accessory Support (AOA): V 2.0
MP3, WMA, WAV, FLAC playback
Repeatable/random playback
Direct search
Time display
Smartphone battery charging with 1A current

iPod features:

Compatible with iPod and iPhone
USB direct control with optional cable KCA-iP102 (40pin) or iP103 (Lightning connector)
Music playback
Interval search
Direct search
App & iPod control mode
iPod Support Standard (iAP) via Bluetooth
Reverse search
Voice control with Siri
Works with iPod Touch*: 5th and 6th generation
Works with iPod Nano*: 7th generation
Works with iPhone*: 4S/5/5S/5C/6/6Plus/6S/6S Plus/SE
Battery charging + power management
1A current support
*Requires the latest Apple software
** Requires Apple Lightning - 30 pin adapter
*** An Apple device with Lightning connectors only plays audio recordings

Audio Features:

Maximum output power: 50W x 4
MOSFET Power ICs
Aux input: Front Mini-jack
Outputs: 1 RCA
Voltage of linear outputs: 2.5V
Outputs front/subwoofer switching
Subwoofer detailed settings
Sound control and memory of the selected source tone: Bass / Mid / Treble
Tone control / Easy EQ: 13 bands, 8 presets
Balance and Front/Rear adjustment
Volume control: Off/Low/High
Bass boost circuit: Off/+1/+2/+3/+4/+5
Q system
Parametric EQ + Saves: 13-band parametric EQ + 8 saves
Speaker timing corrections
Low pass filter
Kenwood sound reconstruction
Drive EQ

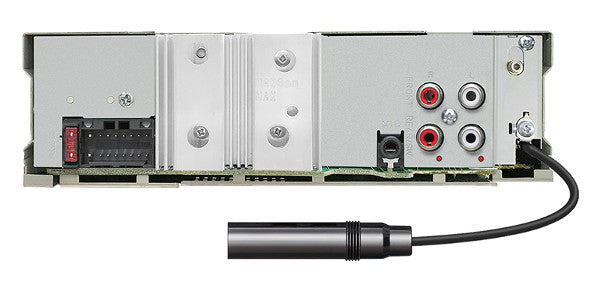

Connectors:

iPod digital connector (1 cable): with optional cable KCA-ip102
USB and AUX input on the front
OEM wired remote control
DC Wire: NEW Mitsumi to ISO
Power Control (P.CON) cable
FM antenna input

Radio specification:

FM range: 87.5Mhz - 108MHz (50Khz interval)
FM used sensitivity: 0.71μV/75ohm (S/N 26dB)
FM muting sensitivity: 2μV/75ohm (S/N 46dB)
FM playback frequency band: 30Hz ~ 15kHz (± 3dB)
FM signal-to-noise ratio (Mono): 64dB
FM Stereo separation (1kHz): 40dB
MW range: 531kHz - 1611kHz (9kHz interval)
MW used sensitivity: 28.2μV
LW Range: 153kHz - 279kHz (9kHz interval)
Sensitivity used for LW: 50μV

CE Codec Specification:

MP3 format: MPEG 1/2 Audio Layer 3-Files
AAC (.m4a, .acc) format
WMA format: Compatible with Windows Media Audio
WAV format: RIFF signal audio format (for linear PCM only)
FLAC format: FLAC files (up to 48kHz/24bit)

USB specification:

Compatible USB version: USB 2.0 full speed
File system: FAT 32/16/12
Maximum current used: 1500mA
D/A converter: 16bit
MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder: Compatible with Windows Media Audio
WAV decoder: Linear - PCM files
flac decoder: FLAC files up to 48kHz/24bit

Audio specification:

Maximum power: 50W x 4
Output power (DIN45324,+B=14.4v): 22W x 4
Output level: 2500mV / 10kOhm
Output resistance: ≤ 600Ohm
Speaker impedance: 4Ohm ~ 8Ohm
AUX frequency response: 20Hz ~ 20kHz (±1dB)
AUX maximum input voltage: 1000mV
AUX input impedance: 30kOhm
Subwoofer level (dB): -15dB to +15dB

Bluetooth:

Accessories:

Removal keys: 2 units
Decorative bow
Mounting drawer
DC cable (Mitsumi to ISO): 15 cm
Microphone: 3m long cable

General Specifications:

Operating voltage: 14.4 V (10.5 ~ 16V allowed)
Maximum current consumption: 10A
Dimensions (LxWxD): 182 x 53 x 100 mm
Weight (with drawer and bow): 0.6kg
Operating temperature range: -10°C ~ 60°C

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
