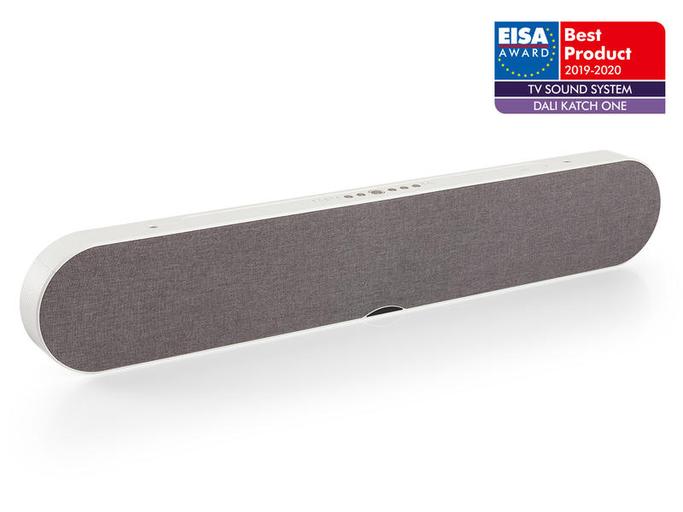

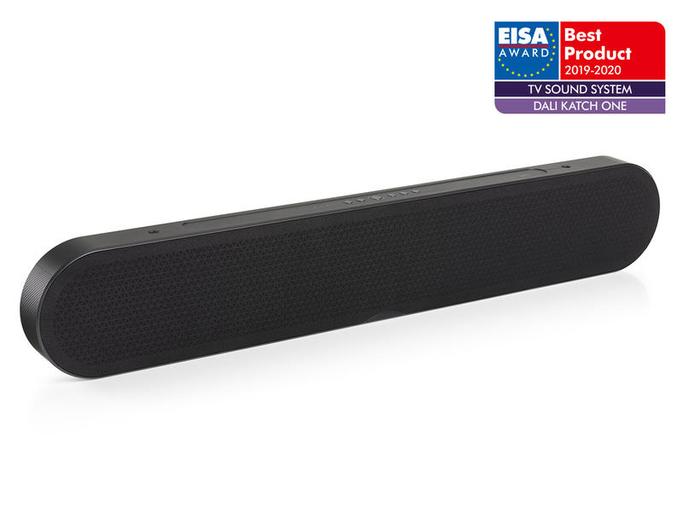

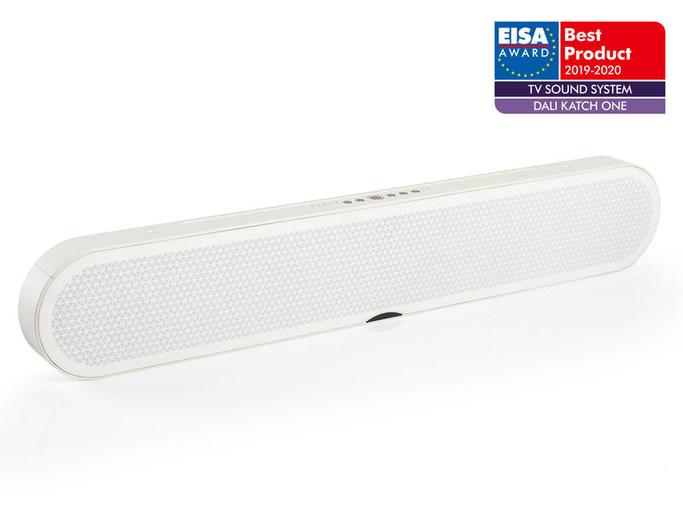

Set Dali KATCH ONE soundbar + Dali SUB E-9 F low-frequency sound column

The Dali Katch One soundbar sound system will provide excellent bass control and clear vocals. Meanwhile, the SUB E-9 F will complement the sounds with powerful low frequencies.

• Bluetooth.
• Chromecast support.
• Amazon Echo support.
• AUX input.

Different ringing modes and the possibility to hang the system on the wall

Dali Katch One even has several different ringing modes integrated. The first sound mode concentrates the sound more at the center of the soundbar sound system, while the second mode gives the sound an incredibly wide stage. Dali Katch One can be hung on the wall using special brackets or placed on a piece of furniture using legs.

Many connection options

Dali Katch One has an integrated HDMI connection, which will allow you to conveniently connect this system to a TV. There are also 2 optical inputs that will allow you to connect additional digital devices. A subwoofer output will allow you to connect a subwoofer to the system. A USB connection will allow you to charge a portable device or connect an Amazon Echo or Google Chromecast. An AUX input will allow you to connect an analog audio source, and Bluetooth will allow you to stream music wirelessly from smart devices.

Quality sound

This soundbar has built-in 2 tweeters and 4 woofers/midrange speakers. The speakers are placed all over the body of the system, so the sound dispersion is incredibly wide. The wide frequency reproduction range will allow you to enjoy both the highest and the lowest frequencies.

Description of DALI SUB E-9 F

The launch of the DALI SUB E-9 F marks a new stage of what is possible at this level of subwoofers!

The SUB E-9 features a 9” woofer, capable of moving lots of air with power and precision. The cone is made from pure aluminum for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.

All in all, the heavy-duty abilities of this "motor system" ensure that the woofer always follows the signal from the amplifier!

The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protect your subwoofer against overloading.

The back plate of SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

SUB E-9 F is elevated from the floor by cone-shaped rubber feet, while a down-firing bass port allows positioning directly against the wall.

Katch One Specifications

User instructions / User manual.

SUB E-9 F Specifications

• Active subwoofer
• Frequency band: +/- 3dB: 37 - 200 Hz
• Maximum sensitivity: 111 dB
• Filter frequency: 40 - 120 Hz
• Woofer: 1 x 228 mm aluminum diaphragm, active
• Bass reflex frequency: 39 Hz
• Max. Amplifier power: 220 W
• Constant IEC power: 170 W
• Input Impedance: 25k Ohms
• Input: Mono (LFE), RCA, Stereo (low-pass filtered)
• Functions: adjustable filter frequency, ON/OFF switch in standby mode, phase adjustment, volume adjustment
• Recommended installation location: Floor
• Recommended distance from the wall: 10 - 30 cm
• Max. Power consumption: 650 W
• Dimensions (HxWxD) [mm] 307 x 288 x 311
• Weight: 11 kg.
• In the package: user manual
