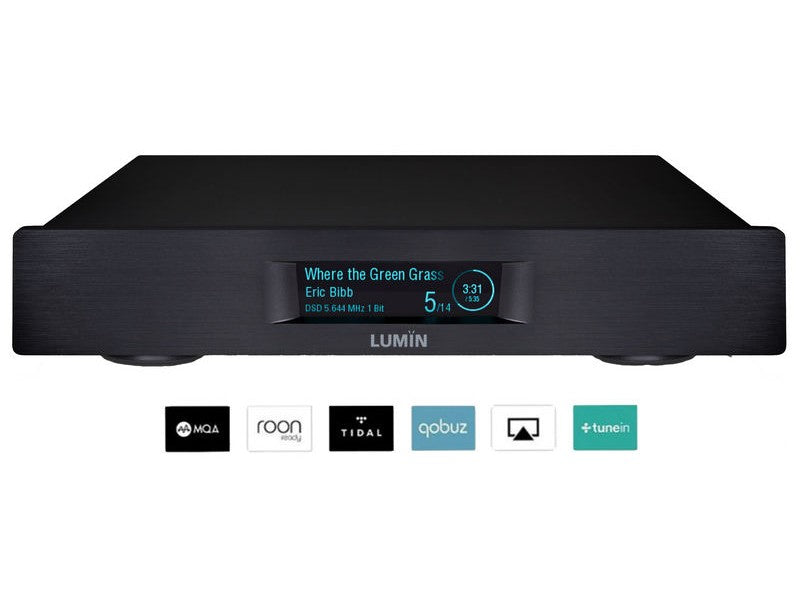

Lumin D2, network player

Network player with Wolfson WM8741 DAC D/A converters, one separate "chip" for each channel.

• DAC: WOLFSONWM8741.
• DSD1285.6MHZ.
• TIDAL, MQA, Qobuz and TuneIn Radio support.
• Fully balanced

SPECIFICATIONS

D2 Player Specifications:

• DSD Support:

  • Up to DSD128 5.6MHz, 1-bit

• PCM Support:

  • Up to 384kHz, 16-32bit, Stereo

• Upsampling rates & bit depths:

  • DSD upsampling option for all files up to 96kHz

  • PCM 192kHz upsampling option for all files up to 96kHz

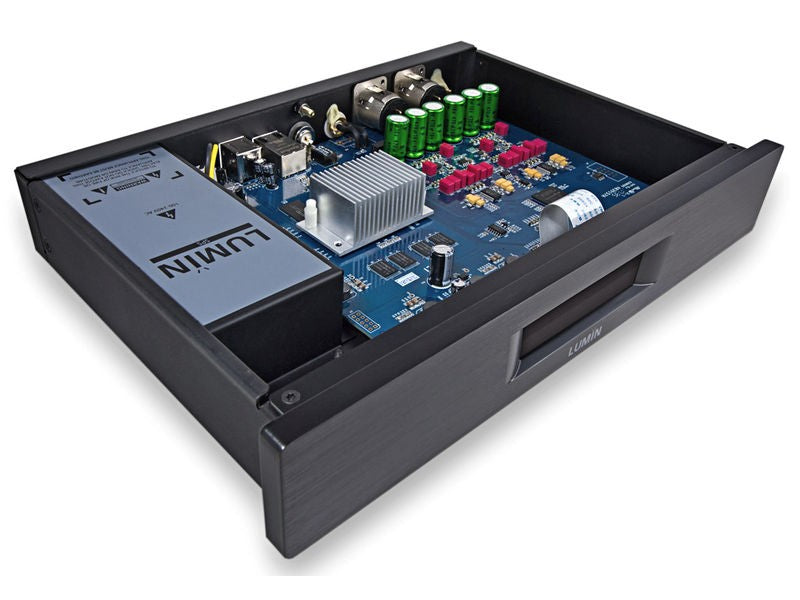

• Analog Output Stage:

  • Wolfson WM8741 DAC chips, 1 chip per channel

  • Fully balanced layout with high-quality components

• Digital Output Stage:

  • BNC SPDIF:

    • PCM 44.1kHz–192kHz, 16–24-bit

    • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

• Power Supply:

  • Internal 100-240V AC auto-ranging

• Physical:

  • Finish:

    • Black anodised brushed aluminium

    D2 unit:

    • 300mm (W), 244mm (D), 60mm (H), 2.5kg.

General specifications of all Lumin players:

• Streaming Protocol:

  • UPnP AV protocol with audio streaming extension (OpenHome)

  • Roon Ready

  • Spotify Connect

  • AirPlay compatible

  • Gapless Playback

  • On-Device Playlist

• App Features:

  • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.

  • Tidal MQA icons to identify high-res music

  • Qobuz high-res icons to identify high-res music

  • Volume control

  • High-resolution artwork

  • Artwork caching

  • Search

  • Multiple tag handling

  • Composer tag support

  • Album-grouping in playlist

  • Automatic internet links to artists/album/songs

  • Saving and restoring playlists (including Tidal and Quobuz)

• Supported Audio File Formats:

  • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)

  • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF

  • Compressed (lossy) Audio: MP3, AAC (in M4A container)

  • MQA

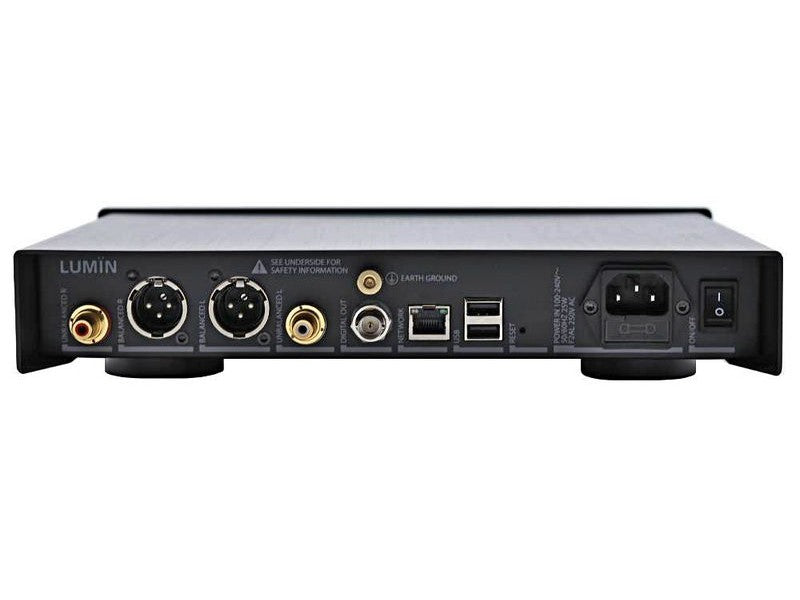

• Input:

  • Ethernet RJ45 network 1000Base-T

  • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

• Analog Audio Outputs:

  • XLR balanced, 4Vrms, pin 2 Hot

  • RCA unbalanced, 2Vrms

• Supported Control Devices:

  • All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.

  • Android devices. Android 4.0 (Ice Cream Sandwich) or later required

• Other:

  • Program of Continuous Development – ​​Firmware-upgradable for further features and enhancements

INSTRUCTIONS

User Manual (EN).
