Lumin

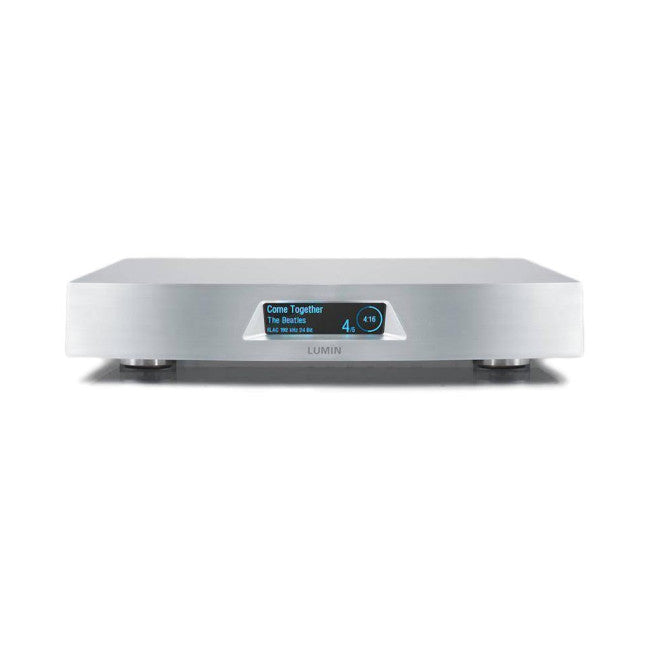

Lumin U1, network player - transport

9,200.00 €

Lumin U1, network player - transport is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Following in the footsteps of one of its most popular models, the LUMIN U2 Mini introduces a completely new processing system that ensures greater flexibility and reliability in the future.

  • TIDAL Connect, Spotify Connect and AirPlay support.
  • DSD512 22.5MHZ.
  • PCM768KHZ.

      SPECIFICATIONS

      SPECIFICATION

      U1 SPECIFICATION

      • DSD SUPPORT:

        • Up to DSD512 22.5MHz, 1-bit

      • PCM SUPPORT:

        • Up to 768kHz, 16-32-bit, Stereo

      • UPSAMPLING RATES & BIT DEPTHS:

        • DSD128 upsampling option for all files
        • PCM 384kHz upsampling option for all files

      • DIGITAL OUTPUT STAGE:

        • USB:
          • DSD512 22.5MHz, 1-bit, Stereo
          • PCM 44.1–768kHz, 16–32-bit, Stereo
        • OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU:
          • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
          • PCM 44.1kHz–192kHz, 16–24-bit

      • POWER SUPPLY:

        • External dual-toroidal
        • Available in 240V and 110V versions

      • PHYSICAL:

        • FINISH:

          • Raw brushed aluminum or black anodised brushed aluminium

          LUMIN (SOLID ALUMINUM CHASSIS):

          • 350mm (W), 345mm (D), 60mm (H), 8kg

        • PSU:

          • 100mm (W), 315mm (D), 55mm (H), 2kg

      SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS

      • STREAMING PROTOCOL:

        • UPnP AV protocol with audio streaming extension (OpenHome)
        • Roon Ready
        • TIDAL Connect
        • Spotify Connect
        • AirPlay compatible
        • Gapless Playback
        • On-Device Playlist

      • APP FEATURES:

        • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
        • Tidal MQA icons to identify high-res music
        • Qobuz high-res icons to identify high-res music
        • Volume control
        • High-resolution artwork
        • Artwork caching
        • Search
        • Multiple tag handling
        • Composer tag support
        • Album-grouping in playlist
        • Automatic internet links to artists/album/songs
        • Saving and restoring playlists (including Tidal and Qobuz)

      • SUPPORTED AUDIO FILE FORMATS:

        • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
        • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
        • Compressed (lossy) Audio: MP3
        • MQA (Core decode)

      • INPUT:

        • Ethernet RJ45 network 1000Base-T
        • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

      • SUPPORTED CONTROL DEVICES:

        • Apple devices. iOS 11.0 or later (List of supported devices)
        • Android devices. Android 4.0 (Ice Cream Sandwich) or later required
        • Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
        • Chromebooks. Google Play Store required.

      • OTHER:

        • Leedh Processing lossless digital volume control
        • Program of Continuous Development – ​​Firmware-upgradable for further features and enhancements

      INSTRUCTIONS

      User Manual (EN).
