Lumin

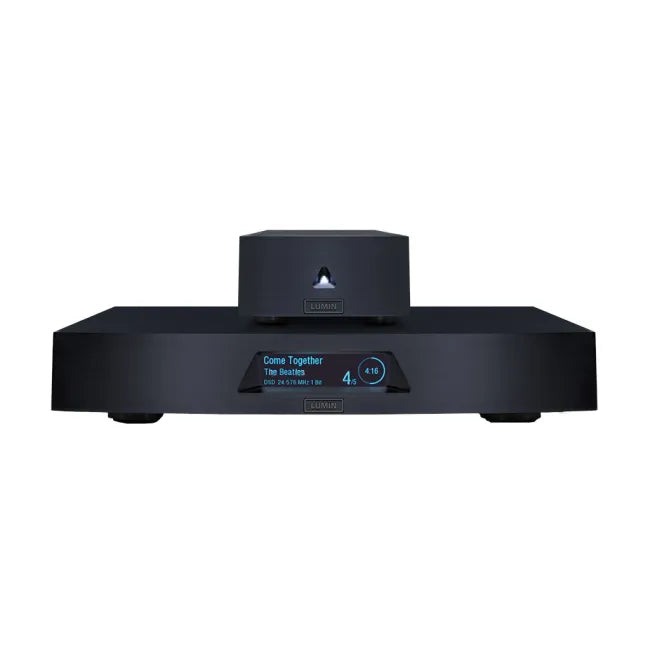

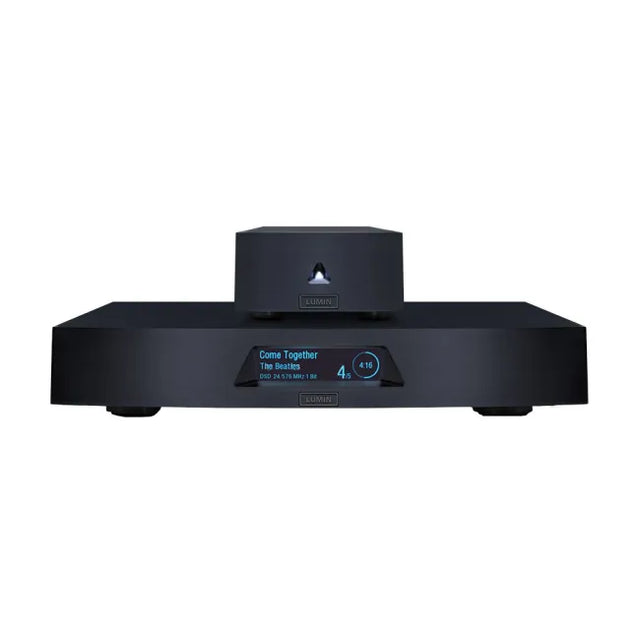

Lumin X1, network player

12,990.00 €

Lumin X1, network player is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

LUMIN X1 is perfected in every possible way.

  • DAC: 2 x ES9038PRO SABER DAC.
  • DSD512 22.6MHZ, PCM 768KHZ.
  • Roon, TIDAL, Tidal Connect, Qobuz, Spotify, FLAC Radio stations support.
  • Balanced XLR outputs.

WHY LUMIN X1

Never content, we've constantly been evaluating our streamers to see if there was any possible way to beat them. It's taken years, but finally we're ready to reveal Streaming's New Cutting Edge .

Re-engineered throughout

LUMIN X1 makes improvements in every possible location:

  • New processor delivers native DSD512 & PCM768 playback
  • Dual Mono design throughout maximizes channel separation
  • Dual ES9038Pro SABER DACs featuring 140dB dynamic range
  • Femto Clock System with precision FPGA distribution
  • New Output Buffer design
  • Dual Mono dual stage linear regulator
  • Optical Network provides complete isolation from network digital noise
  • USB Digital Audio Output supports Native DSD512


Entirely new Power Supply

  • New solid billet CNC casing design
  • Separate digital & analogue circuitry
  • Low-noise linear regulator
  • New 9-pin output connector
  • Available as an upgrade for existing S1 / A1 / T1 customers

SPECIFICATIONS

X1 SPECIFICATION

  • DSD SUPPORT:

    • Up to DSD512 22.6MHz, 1-bit

  • PCM SUPPORT:

    • Up to 768kHz, 16-32-bit, Stereo

  • ANALOG OUTPUT STAGE:

    • Dual ESS SABER 32 ES9038Pro DAC chips
    • Fully balanced layout with high-quality components
    • Output connectors coupled with dual LUNDAHL LL7401 output transformers
    • Femto Clock System with precision FPGA distribution

  • UPSAMPLING RATES & BIT DEPTHS:

    • DSD128 upsampling option for all files
    • PCM 384kHz upsampling option for all files

  • DIGITAL OUTPUT STAGE:

    • USB:
      • Native DSD512 support
      • PCM 44.1–768kHz, 16–32-bit, Stereo
    • BNC SPDIF:
      • PCM 44.1kHz–192kHz, 16–24-bit
      • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

  • OPTICAL NETWORK:

    • Industry-standard SFP
    • 1000Base-T Gigabit Ethernet
    • Adapter may be needed for your particular switch/cables
    • Use simultaneously with RJ45 (eg connect one to router and one to LUMIN L1 or NAS)

  • POWER SUPPLY:

    • External solid billet cnc dual-toroidal
    • Separate digital & analogue circuitry
    • Low-noise linear regulator
    • 9-pin Output Connector

  • PHYSICAL:

    • FINISH:

      • Black anodised brushed aluminum (with matching PSU)
      • Raw brushed aluminum (with matching PSU)

      LUMIN (SOLID ALUMINUM CHASSIS):

      • 350mm (W), 345mm (D), 60mm (H), 8kg

    • PSU (SOLID ALUMINUM CHASSIS):

      • 106mm (W), 334mm (D), 60mm (H), 4kg

SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS

  • STREAMING PROTOCOL:

    • UPnP AV protocol with audio streaming extension (OpenHome)
    • Roon Ready
    • TIDAL Connect
    • Spotify Connect
    • AirPlay compatible
    • Gapless Playback
    • On-Device Playlist

  • APP FEATURES:

    • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
    • Tidal MQA icons to identify high-res music
    • Qobuz high-res icons to identify high-res music
    • Volume control
    • High-resolution artwork
    • Artwork caching
    • Search
    • Multiple tag handling
    • Composer tag support
    • Album-grouping in playlist
    • Automatic internet links to artists/album/songs
    • Saving and restoring playlists (including Tidal and Qobuz)

  • SUPPORTED AUDIO FILE FORMATS:

    • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
    • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
    • Compressed (lossy) Audio: MP3
    • MQA

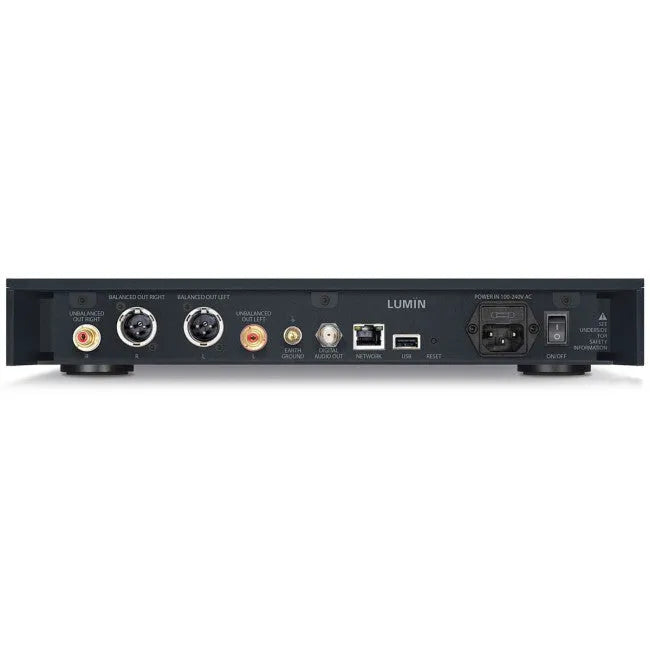

  • INPUT:

    • Ethernet RJ45 network 1000Base-T
    • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

  • ANALOG AUDIO OUTPUTS:

    • XLR balanced, 6Vrms, pin 2 Hot
    • RCA unbalanced, 3Vrms

  • SUPPORTED CONTROL DEVICES:

    • Apple devices. iOS 11.0 or later (List of supported devices)
    • Android devices. Android 4.0 (Ice Cream Sandwich) or later required
    • Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
    • Chromebooks. Google Play Store required.

  • OTHER:

    • Leedh Processing lossless digital volume control
    • Program of Continuous Development – ​​Firmware-upgradable for further features and enhancements

INSTRUCTIONS

User Manual (EN).
