Magnat

Magnat Monitor S80 ATM, floorstanding speaker (various colors)

€370.00 EUR

Magnat Monitor S80 ATM, floorstanding speaker (various colors) - Black is backordered and will ship as soon as it is back in stock.

Can't choose speakers for your home? We have a solution for you!
We invite you to come for an audition of the audio equipment .

Neišsirenkate garso kolonėlių?

Display general product information or specific product information using metafields.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

"Monitor S 80 ATM" is one of the technological advantages of this series. This, of course, is due to the Dolby Atmos module integrated at the top.

  • Recommended amplifier power: 160-300W.
  • Floor speakers with Dolby Atmos module for the best surround sound.

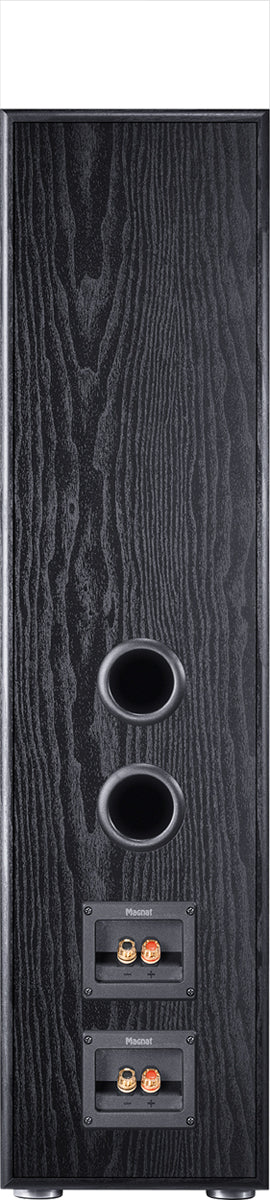

  • Separate "Atmos" module connection terminals.
  • Use as a hi-fi speaker or as a home theater front speaker.

Floorstanding speaker with double bass and integrated Dolby Atmos height channel speaker

The Monitor S 80 ATM is one of the technological highlights of the series. This is of course due to the Dolby Atmos module integrated into the top. This coaxial loudspeaker, specially developed according to Dolby's guidelines, consists of a 100 mm bass-midrange speaker and a 20 mm dome tweeter. By radiating upwards, the Atmos signals reach the listeners via the reflection on the ceiling. This eliminates the need for additional speakers.

The Atmos modules have their own connection terminals and are wired to the corresponding outputs of an amplifier or receiver. If you don't have one yet, you can first use the S 80 ATM as a classic front speaker and then simply upgrade to Atmos later with new electronics.
The "traditional" hi-fi part of the S 80 features two 170 mm woofers, a 110 mm midrange driver and a 28 mm dome tweeter. This is enough for a frequency spectrum from 26 to 38,000 Hz. With the Atmos module, by the way, it's also an impressive 26 to 28,000 Hz.

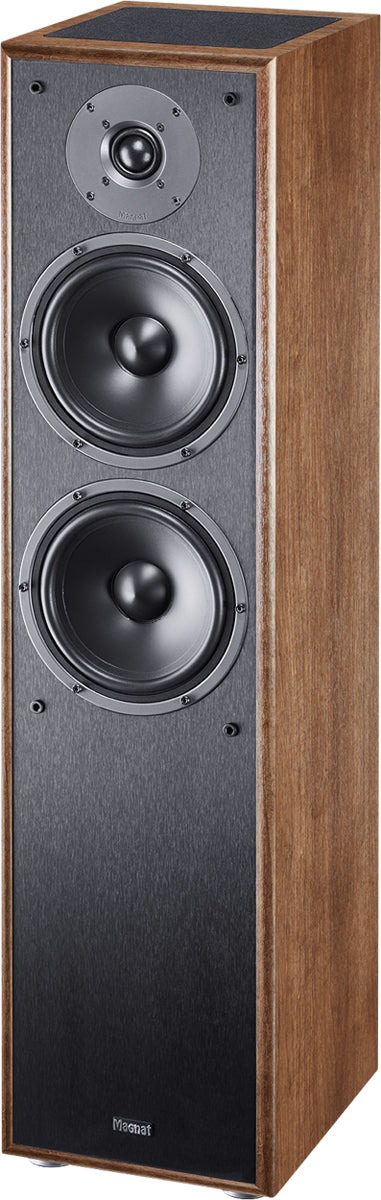

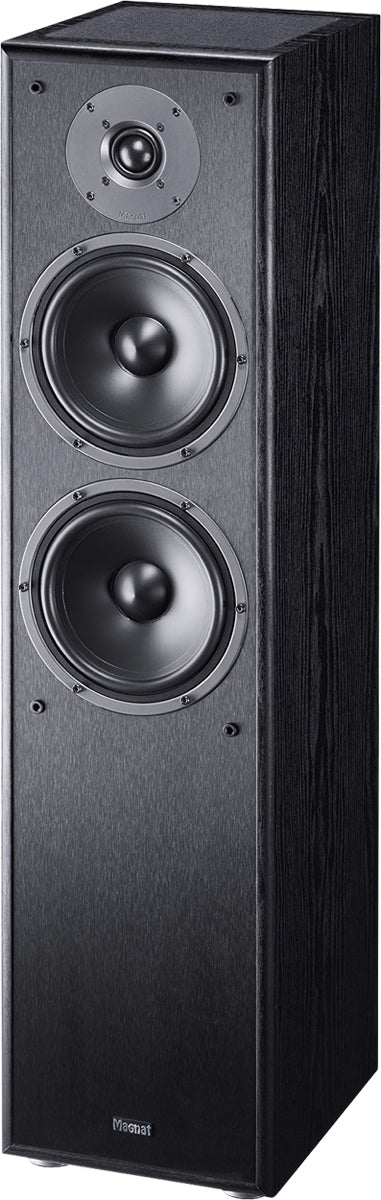

At 86 cm high, the S 80 has perfect dimensions, both acoustically and visually. With its cabinet in black or walnut, there is a suitable version for every living environment. The baffle has a black finish and the removable front cover made of acoustic fabric rounds off the appearance.

SPECIFICATIONS

PRINCIPLE
    • 2 ½-way bass reflex floorstanding speaker and integrated 2-way Dolby Atmos module

  • 2-way coaxial
DRIVERS
    • 1.1" dome-tweeter

    • 1 x 4.5" coaxial speaker

  • 2 x 6.5" woofer-midrange
POWER HANDLING (RMS/MAX.)
    • Main speaker: 160/300 watts

  • Dolby Atmos speaker: 40/80 watts
SENSITIVITY (2.8V/1M)
    • Main speaker: 90 dB

  • Dolby Atmos speakers: 87 dB
IMPEDANCE
    • Main speaker: 4 ohms

  • Dolby Atmos speaker: 4 ohms
CROSSOVER FREQUENCIES
    • Main speaker: 500 Hz, 3,000 Hz

  • Dolby Atmos speakers: 7,000
RECOMMENDED AMPLIFIER OUTPUT
    • Main speaker: 30 - 300 watts

  • Dolby Atmos speaker: 15 - 80 watts
DIMENSIONS (WXHXD)
  • 215 x 860 x 270 mm
WEIGHT
  • 13.4 kg

    INSTRUCTIONS

    User Manual (EN).
