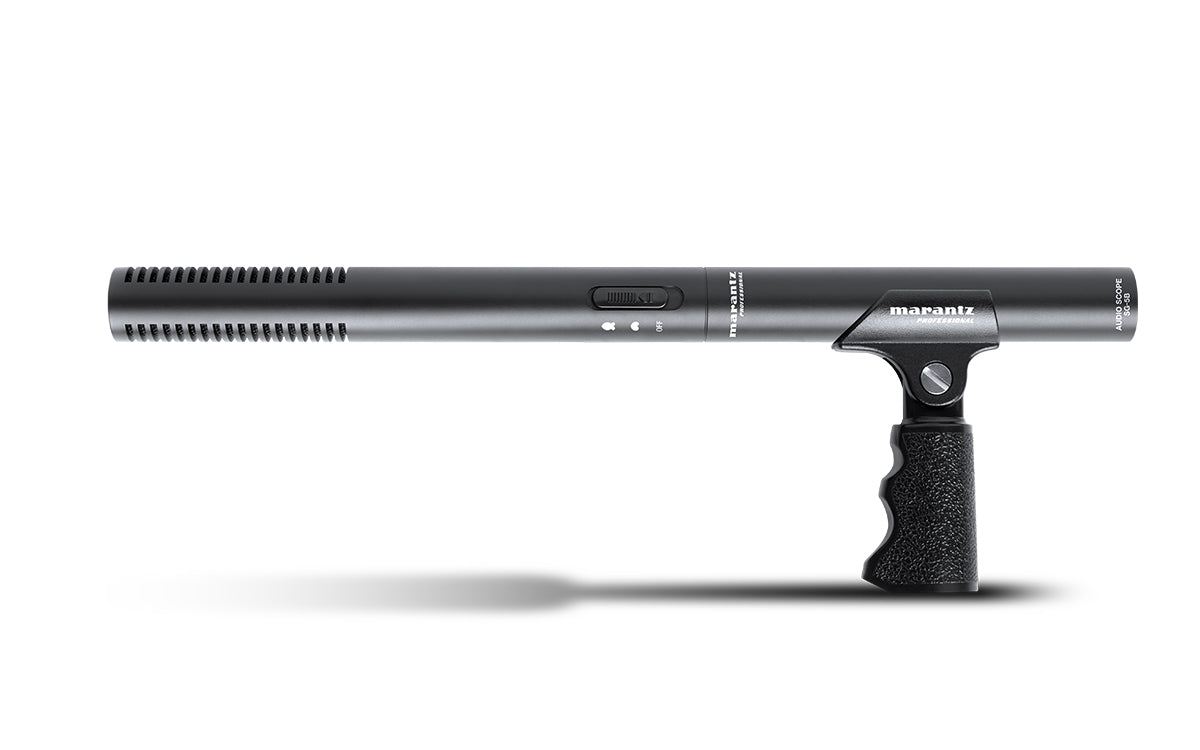

Marantz Professional Audio Scope SG-5B, short shotgun microphone

Marantz Professional series, short shotgun type microphone that meets the highest requirements set by the manufacturer.

• Frequency band: 70-16,000Hz .

• Sensitivity: Tele: -55 dB ± 3dB/ Normal: -72 dB ± 3dB
• Impedance: 250Ω ± 30% (@ 1 KHz).

The Audio Scope SG-5B is a professional shotgun built for the rigors of field use. It has a narrow pickup pattern and excellent off-axis rejection resulting in enhanced pickup from the front of the microphone. Perfect for boom pole use or static mounted for broadcast, film or theater applications.

• Professional shotgun microphone
• Superior off-axis rejection provides enhanced front pickup
• Powered by internal battery or phantom power
• Long interference tube provides narrow pickup from a distance
• Two selectable patterns - cardioid and supercardioid
• Rugged, durable build for the rigors of field use

SPECIFICATIONS

• Item

  • Electret Condenser
  • 10mm x 9.3mm (±0.4mm)



• Polar Pattern

  • Tele: Supercardioid
  • Normal: Cardioid



• Frequency Response

  • Tele: 200Hz-16kHz
  • Normal: 70Hz -16kHz



• Impedance

  • 250Ω ± 30% (@ 1 KHz)



• Operating Voltage:

  • 1.5V DC Battery (AA)
  • 9~52V DC Phantom Power



• Sensitivity

  • Tele: -55dB ± 3dB
  • Normal: -72dB ± 3dB



• Dimensions

  • 0.87" diameter x 11.9" length (22 x 302 mm)

INSTRUCTIONS

User Manual (EN).
