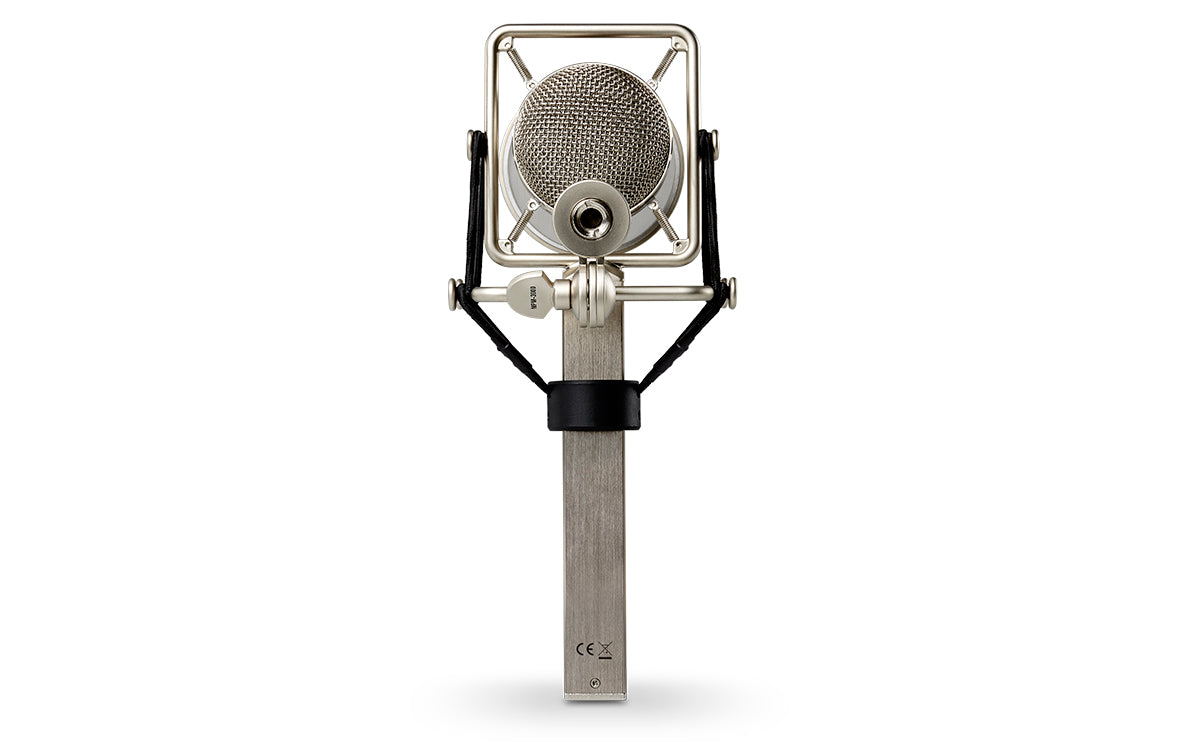

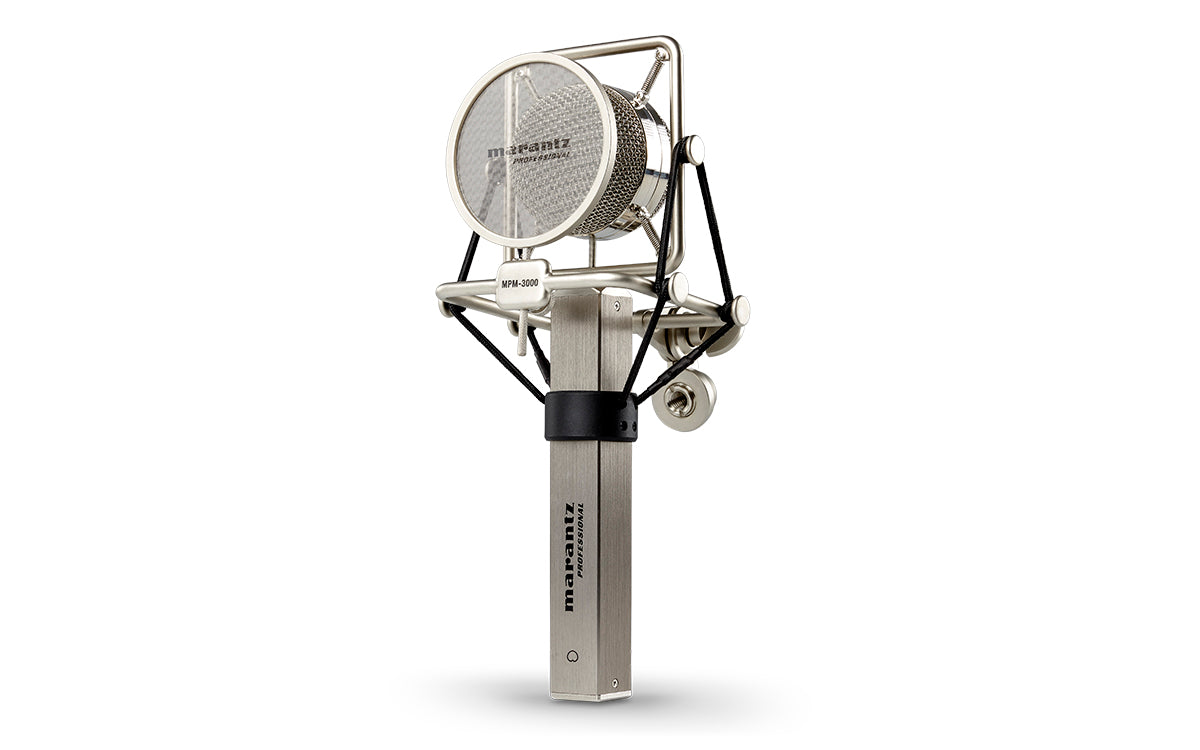

Marantz Professional MPM-3000, microphone

Marantz Professional series large-diaphragm microphone that meets the highest requirements set by the manufacturer.

• 34mm diameter diaphragm.
• Frequency band: 20-20,000Hz .

• Sensitivity: -36 dB ± 2 dB (0dB = 1 V/Pa @ 1kHz).
• Impedance: 250Ω ± 30% (@ 1 KHz).

Marantz Professional condenser microphones deliver the high-quality, accurate audio needed for critical recording applications. The MPM-3000 tops the line with its audiophile specs and construction. Premium-grade circuitry components provide superlative performance with negligible harmonic distortion. The microphone's smooth, warm character and fast transient response make it the perfect instrument to capture every nuance of sound - from subtle vocals to orchestral percussion

• Large diaphragm, cardioid condenser microphone
• High sensitivity, low self-noise and wide dynamic range
• Premium-grade electronic components for exquisite performance
• Uniquely designed integrated pop filter/shock mount assembly

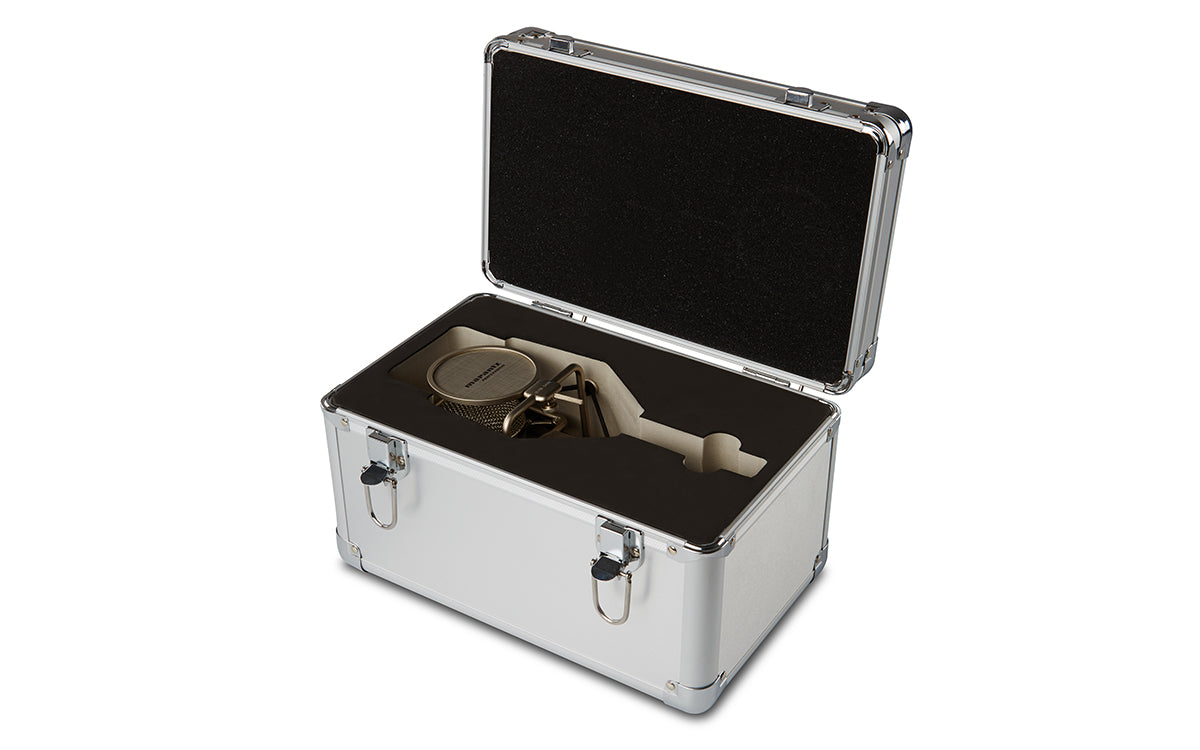

• Complete with windscreen and aluminum case

SPECIFICATIONS

• Type: Condenser capsule with gold-plated, 34mm-diameter diaphragm
• Polar Pattern: Cardioid
• Frequency Response: 20 - 20,000 Hz
• Open Circuit Sensitivity: -36 dB ± 2 dB (0dB = 1 V/Pa @ 1kHz)

• Impedance

  • Output: 100 Ohms ± 30% (@ 1kHz)
  • Load: >1000 Ohms


• Self-Noise: 13 dBA
• Maximum SPL: 138dB (THD ~ 0.9%, 1kHz)
• Signal-to-Noise Ratio: 81dB
• Phantom Power Requirements: 48 VDC, 3mA typical

• Dimensions

  • Head Diameter: 2.6" / 65 mm
  • Complete Assembly: 10.8" x 4.5" x 5.3" / 275 x 115 x 135mm


• Weight: 1.43 lbs / 0.65 kg

INSTRUCTIONS

User Manual (EN).
