MATCH UP

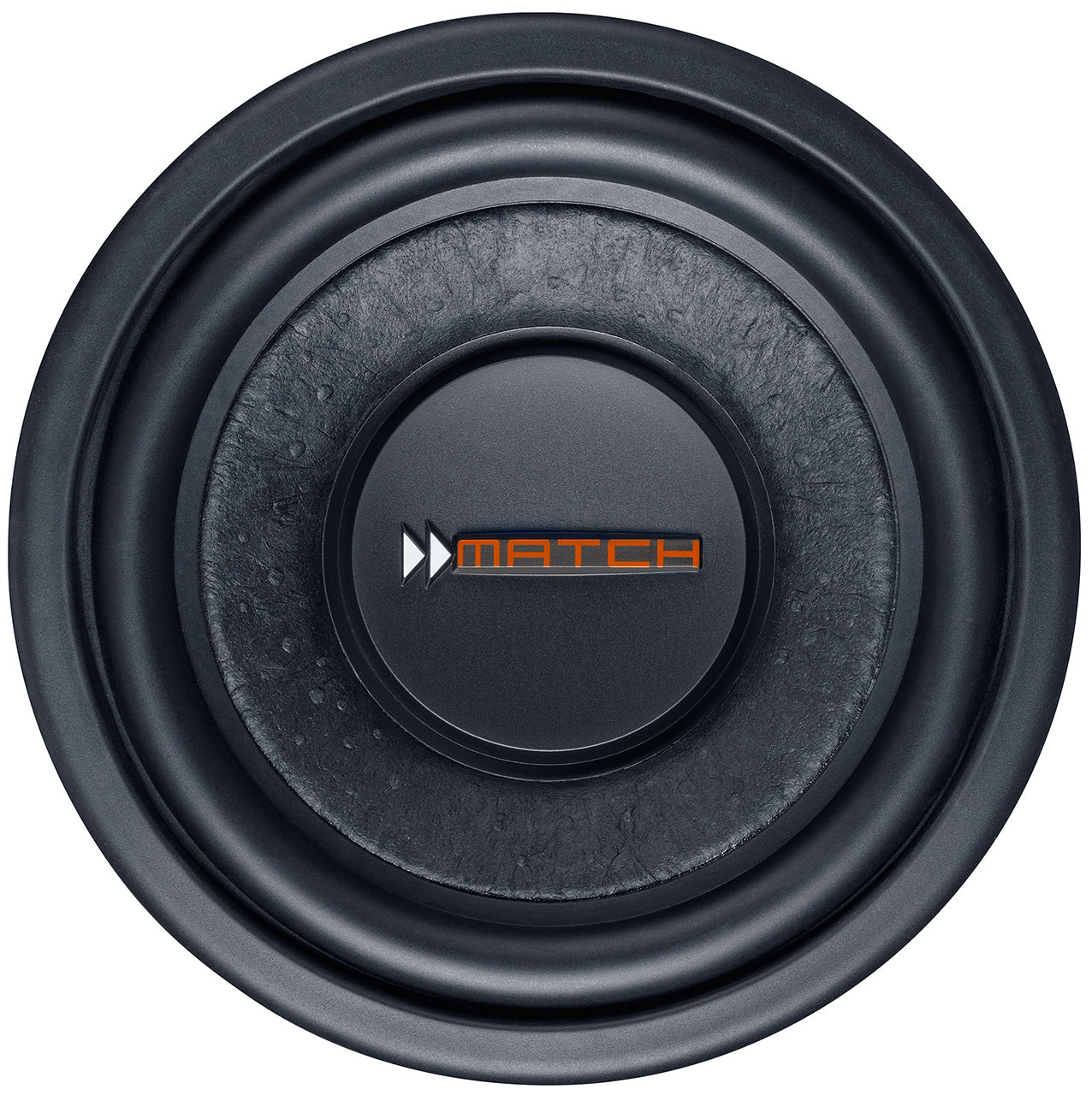

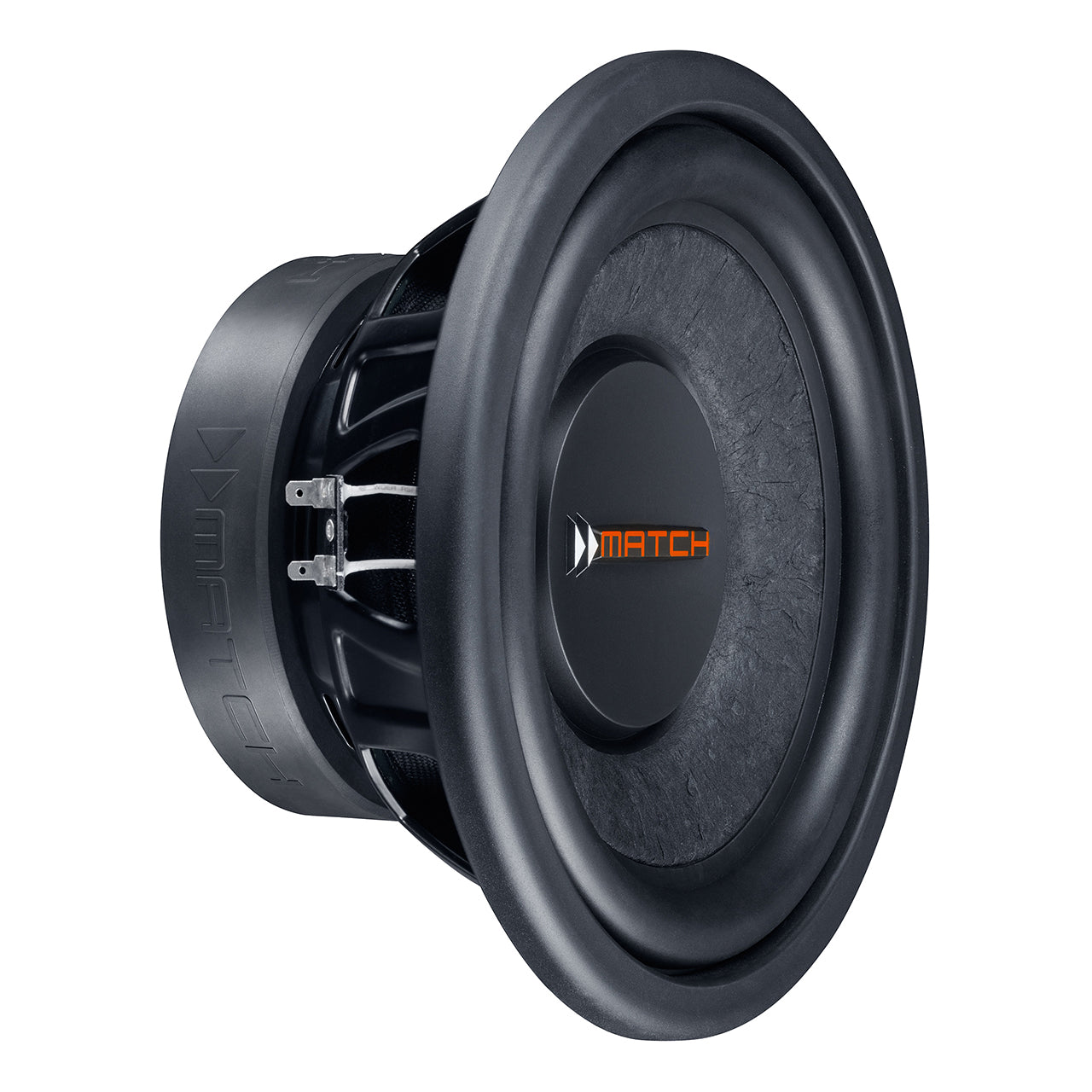

MATCH PP 10W-Q, car subwoofer

€129.00 EUR

MATCH PP 10W-Q, car subwoofer is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Car 10” / 250 mm Plug & Play subwoofer.

  • Power: 600W.
  • Resonant frequency: 29 Hz.
  • Performance: 87dB.
  • Resistance: 4 x 3 Ω

ATCH PP 10W-Q

You didn't find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and/or size, then you have the chance to build your "personalized" version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100% identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our "standard" subwoofers.

Features
  • 10” / 250 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
  • Extremely stiff hand-scooped paper cone for maximum sound pressure
  • Double ventilated voice coil for minimum compression effects
  • Powerful magnet for compact-sized vented enclosures
  • Optimized for the perfect interaction with MATCH Plug & Play amplifiers
  • Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery

SPECIFICATIONS

Power RMS / max. Mr 300 / 600 Watts
Impedance Z 4 x 3 Ω
DC resistance Re 4 x 3.0 Ω
Frequency response
Resonance frequency Fs 29 Hz
Mechanical Q factor Qms 3.12
Electrical Q factor Qes 0.40
Total Q factor Qts 0.35
Compliance Cms 299 µm/N
Equivalent air volume February 46 L
Force factor B*I 23.5 Vol
Efficiency 1 W / 1 m SPL 87 dB
Cone area Sd 333 cm²
Moving mass Mmm 98 st
Cone material   Hand-scooped paper cone
Mechanical resistance Rs 5.8 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height   21 mm
Max. linear excursion Xmax +/- 6.5 mm
Outer diameter ø 265mm / 10.43"
Installation diameter ø 232mm / 9.13"
Installation depth   128.5mm / 5.06"

Recommended enclosure volumes
Sealed box Not recommended
Even in volume -
Lower limiting frequency (-3dB) -
DSP settings -

Vented box
Even in volume   18 L
Port diameter ø 70mm / 2.75"
Port area   28 cm²
Port length   33 cm / 13"
Port tuning frequency Facebook 39 Hz
Lower limiting frequency (-3dB)   36 Hz
DSP settings   - Highpass: Self-Define; crossover frequency 33 Hz; Q factor 1.3
- Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz

WHAT'S IN THE PACKAGE?

1 x Subwoofer MATCH PP 10W-Q
1 x Connection terminal
