miniDSP

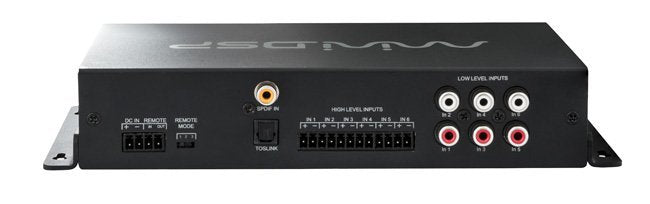

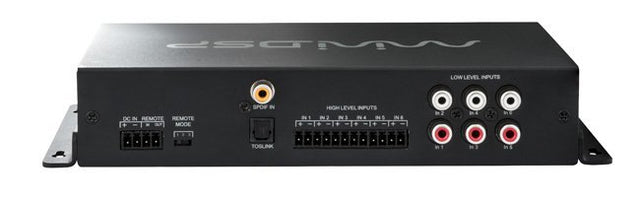

miniDSP C-DSP 8×12, car audio processor

€689.50 EUR

miniDSP C-DSP 8×12, car audio processor is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

A premium digital audio processor for mobile devices and car audio.

  • 400 MHz 32-bit Sharc floating-point processor, up to 192 kHz frequency processing.
  • Digital and analog inputs (low/high level), 12 analog outputs.
  • Flexible DSP processing units, back fill processing (LR, L+R..) due to internal matrix.
  • Windows/Mac compatible graphical user interface.
  • Remote control or preset/main and sub volume control.

miniDSP C-DSP 8×12 Digital Signal Processor for Mobile/Car audio

The C-DSP 8×12 is miniDSP's next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8×12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems.

The driverless USB interface is used to configure miniDSP's powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.

What's in the box?

  • 1 x C-DSP 8×12 DSP processor
  • 1 x 1m USB cable
  • 1 x 5m remote cable + Remote module
  • 1 x C-DSP 8×12 plugin license

SPECIFICATIONS

Item Description
Digital Signal Processor 400 MHz, 32-bit floating-point SHARC Digital Signal Processor (ADSP21489)
ADC/DAC Resolution 24-bit, up to 192 kHz native - check plugin for details
Control Driverless USB 2.0 control interface for control from Windows or Mac
Digital audio inputs Software selectable SPDIF (RCA) or TOSLINK (Optical) / 44.1–192 kHz
Analog audio inputs

6 x high-level differential inputs (terminal block) · Selectable max level: 8 or 12 V rms

· Zin: 68 Ω

6 x low-level differential inputs (on RCA)

· Selectable max level via DIP switches: 2 or 4 V rms

· Zin: 10 kΩ (at 4 V rms setting)
Analog audio outputs

12 x outputs on RCA connector with anti-pop mute circuit

· Max output signal 6 V rms @ 0 dB FS

· Zout = 560Ω
DSP processing Full suite of miniDSP processing (see the User Manual for specific plugins)
Wired external remote

External wired remote (RJ11 cable for power and data) selects active preset, master volume and master mute; LED indication of master volume and active preset.
microSD Card Allows setup and firmware upgrade of the unit offline without a laptop.
Power supply / REM in&out

Isolated DC–DC conversion / 10–14 V DC compliant

REM in (4 V DC trigger level)

REM out / 12 V DC @ 100mA max current out

Remote modes (1: Disabled 2: REM in trigger)
Dimensions (W x D x H) 41 x 205 x 122 mm
Enclosure Powder-coated steel with removable brackets

INSTRUCTIONS

User Manual (EN).
