miniDSP

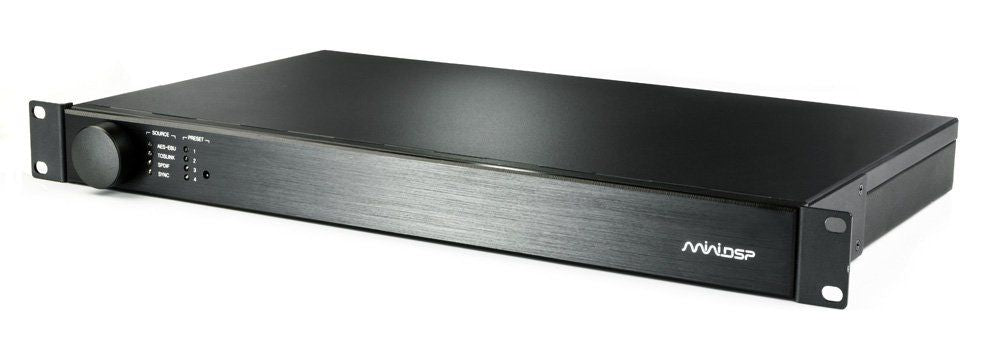

miniDSP 4×10 HD, digital signal processor

€665.50 EUR

miniDSP 4×10 HD, digital signal processor is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

miniDSP 4×10 Hd is a versatile multichannel digital signal processor (DSP) for analog and digital audio sources. Combining high-quality audio algorithms with flexible software configuration, this platform follows in the footsteps of our successful processor line.

  • 28/56-bit DSP engine.
  • 24-bit ADC/DAC IC with 114dB SNR.
  • 48/96 kHz sample rate depending on plug-in.
  • Digital (2 x IN, 2 x OUT via SPDIF/Toslink/AES-EBU) and analog (2 x IN,
  • 8xOUT balanced and unbalanced) connection.
  • Front panel rotary control and training IR control.
  • Plug&Play USB driver and software that can be configured in real-time using miniDSP plugins from Mac/Windows.
  • No PC required after setup.


4×10 HD Multi-Channel Digital Signal Processor

miniDSP 4×10 Hd is a versatile multi-channel Digital Signal Processor (DSP) for analog and digital audio sources. Combining high quality audio algorithms along with a flexible software configuration, this platform follows in the footsteps of our successful line of processors. With its balanced & unbalanced analog & digital audio I/O, the platform easily fits in the audio chain of most systems. Engineered for durability, the platform is packaged in a sturdy powder coated steel enclosure. The removable rack ears and thick brushed aluminum front panel match the needs of consumer (Home AV) or commercial (ProAV) installations.

Finally, miniDSP 4×10 ranks high on versatility thanks to our unique product concept of audio plug-ins: 'a single hardware platform for many applications'. From a multi-way speaker crossover unit to a multi-channel equalizer, the unit is easily configured in real time from the Mac/Windows control interface. Once the unit is configured, no computer is required anymore and the control of presets, master volume and digital source selection is available from the front panel encoder or Infrared (IR) receiver.

What's in the box?

  • 1 x MiniDSP 4×10 HD processor with removable rackmount ears
  • 1 x 12VDC universal power supply. IEC type removable plug
  • 1 x Shielded USB cable (1.5m)
  • 1 x Toslink audio cable

SPECIFICATIONS

Item Description
Digital Signal Processor 172MHz, 28/56bit Digital Signal Processor
Control Driverless USB 2.0 control interface for Windows/Mac OS x environments

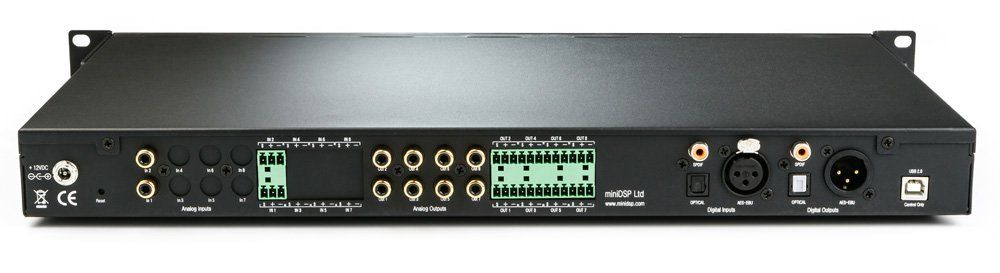

Audio inputs

2 x Balanced (Phoenix Terminal Block) or 2 x Unbalanced (RCA) inputs 114dB ADC IC / Measured SNR 105dB
Audio outputs

8 x Balanced (Terminal Block) and 8 Unbalanced (RCA) outputs 114dB DAC IC / Measured SNR 105dB
ADC/DAC Resolution 24bits – Available in 48kHz or 96kHz version depending on plug-in
Maximum Input signal

Unbalanced Input (RCA): 2Vrms (+8 dBu) or 0.9Vrms (see input jumpers)

Balanced Input (Terminal block): 4Vrms (+14 dBu)
Maximum Output signal

Dip switch on motherboard attenuates outputs by 6dB (RCA & Terminal blocks)

Unbalanced outputs (RCA): 2Vrms (+8 dBu) or 0.9Vrms

Balanced outputs (Terminal block): 4Vrms (+14 dBu) or 8Vrms (20dBu)
Digital Audio inputs

1 x SPDIF on RCA connector, transformer isolated

1 x Optical input on Toslink connector

1 x AES-EBU on balanced XLR Neutrik connector, transformer isolated
Digital Audio outputs (all active)

1 x SPDIF on RCA connector, transformer isolated

1 x Optical input on Toslink connector

1 x AES-EBU on balanced XLR Neutrik connector, transformer isolated
Sample rate converter

Up/Down sample digital audio input signal to the correct plug-in sample rate (48/96kHz) based on the loaded plug-in. Up to 216kHz sample rate.
Rotary Encoder Front Panel rotary encoder for Master volume control (all output channels)
Infrared Red (IR) receiver Front panel IR receiver controls volume, mute, source selection and preset recall
USB Control USB type B connector
Rack mounting Removable rack mount ears pre-installed
Power supply External 12VDC universal power supply (25W)
Dimensions (H x W x D) mm 41.5 x 429 x 252 mm – 1RU height

INSTRUCTIONS

User Manual (EN).
