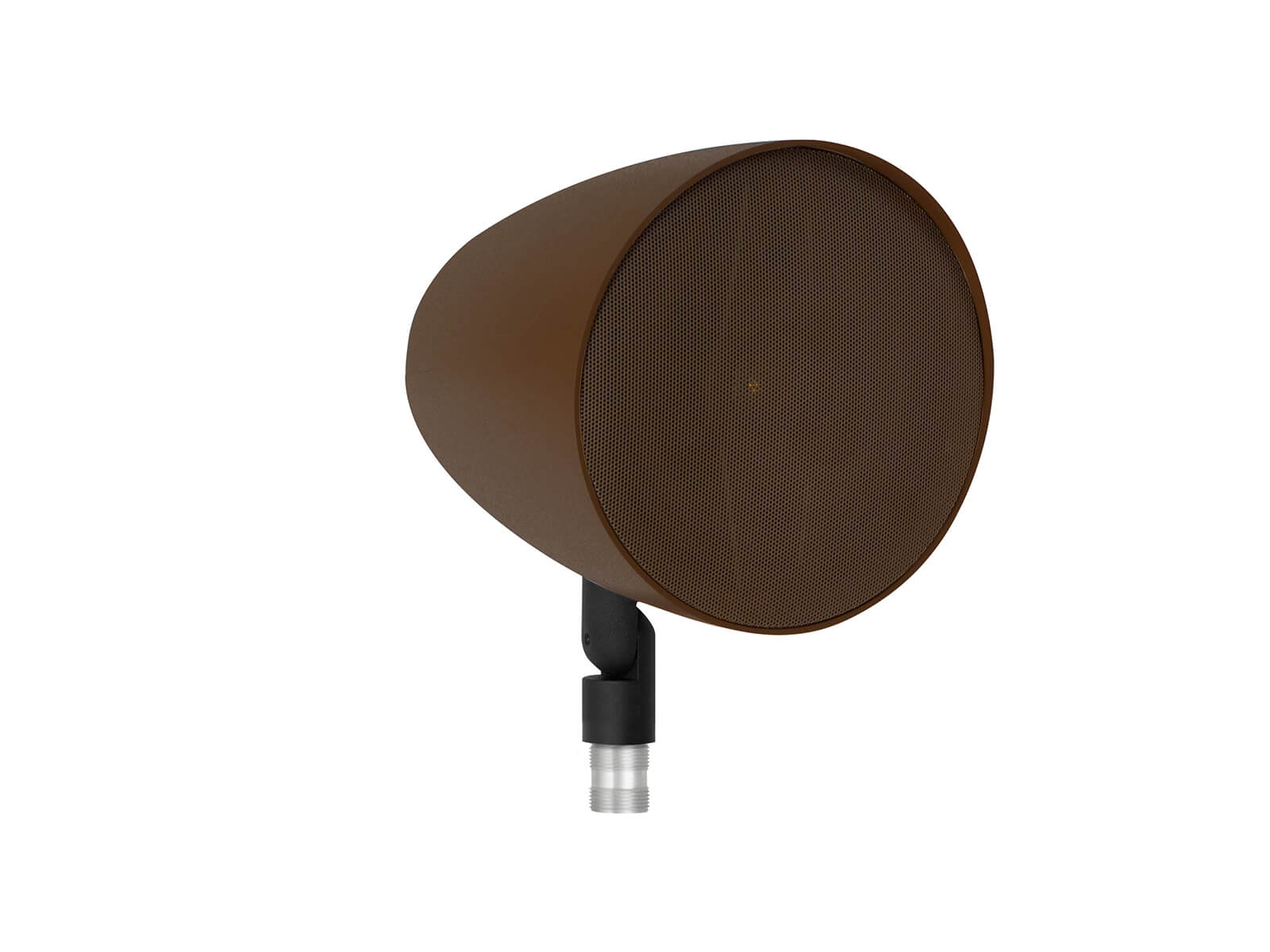

Monitor Audio CLG160, an outdoor wall-set speaker
Monitor Audio CLG160, an outdoor wall-set speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
You do not collect sound columns ?
You do not collect sound columns ?
We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.
Delivery home from € 4.99
Delivery home from € 4.99
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up in the store for € 0
Pick up in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
Setalite sound system of the Climate Garden series, designed to convey the best music experiences in your yard or garden!
- Power: 70W.
- Frequency band: 80 Hz - 30 KHz .
- Sensitivity: 89 dB.
- SPL: 107dBA.
Installation is simple, thanks to the requirement for the speaker to be wired in a mono configuration and powered by one amplifier channel. The other amplifier channel can be used to power the subwoofer. This configuration allows the levels between bass and mid-high range to be easily equalized. Alternatively, the system can be designed to provide stereo operation if desired by creating stereo left/right zones.
Despite being installed outside, the aesthetics of the speakers are just as important. Finished in dark brown, the CLG160 blends seamlessly into this environment to provide high quality sound for outdoor entertainment, while not distracting from the landscape. The speaker casing can be painted a different color, if required.
Technology
- Purposely designed 6" MMP II bass-mid range driver
- 25 mm C-CAM Gold Dome tweeter - coaxially mounted
- 70/100v line level operation – internal matching transformer
- Tree or pole mounting possible with additional fixings
- Garden spike ( CLG-SPIKE R ) and mount ( CLG-MOUNT ) available separately
- PTC overload protection against power overload
SPECIFICATIONS
Frequency Response (-6 dB)
80 Hz — 30 kHz
Sensitivity (1W@1M)
89 dB
Line Level Voltage
70/100 Volt line level
Maximum SPL
107 dBA
Power Handling (RMS)
60 Watts (crossover set to minimum 80 Hz @12 dB/Octave)
Recommended Amplifier Requirements
10 — 60 W per speaker
Drive Unit Complement
1 x 6" MMP II cone bass-mid driver
1 x 25mm C-CAM Gold Dome tweeter – Coaxially oriented
Crossover Frequency
80 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

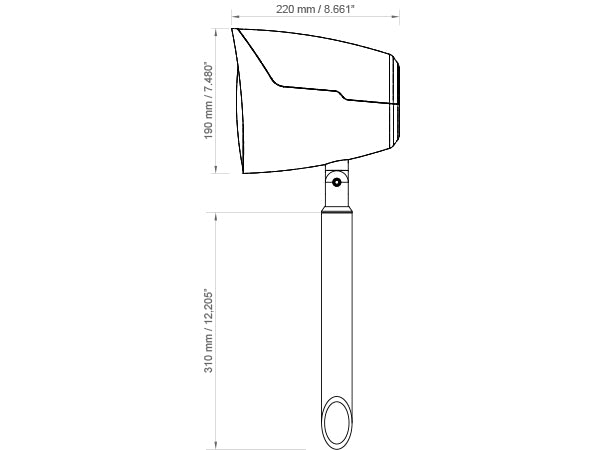

External Dimensions (Excluding Spike and Mount (H x W x D))
190 x 220 mm (7 1/2 x 8 11/16 ")
Total Bracket Pivot Angle
180 degrees
Connection
Encapsulated cable connection
Environmental Protection Rating
IP55
Operating Temperature Range
-20° to 70° C / -4° to 158° F
Colour/Finish
Dark Brown
Dispersion
60 degrees
Weight
2.76 kg (6 lb 2 oz)
Sold As
Single Unit
INSTRUCTIONS
User Manual (EN).Bad
