Monitor Audio

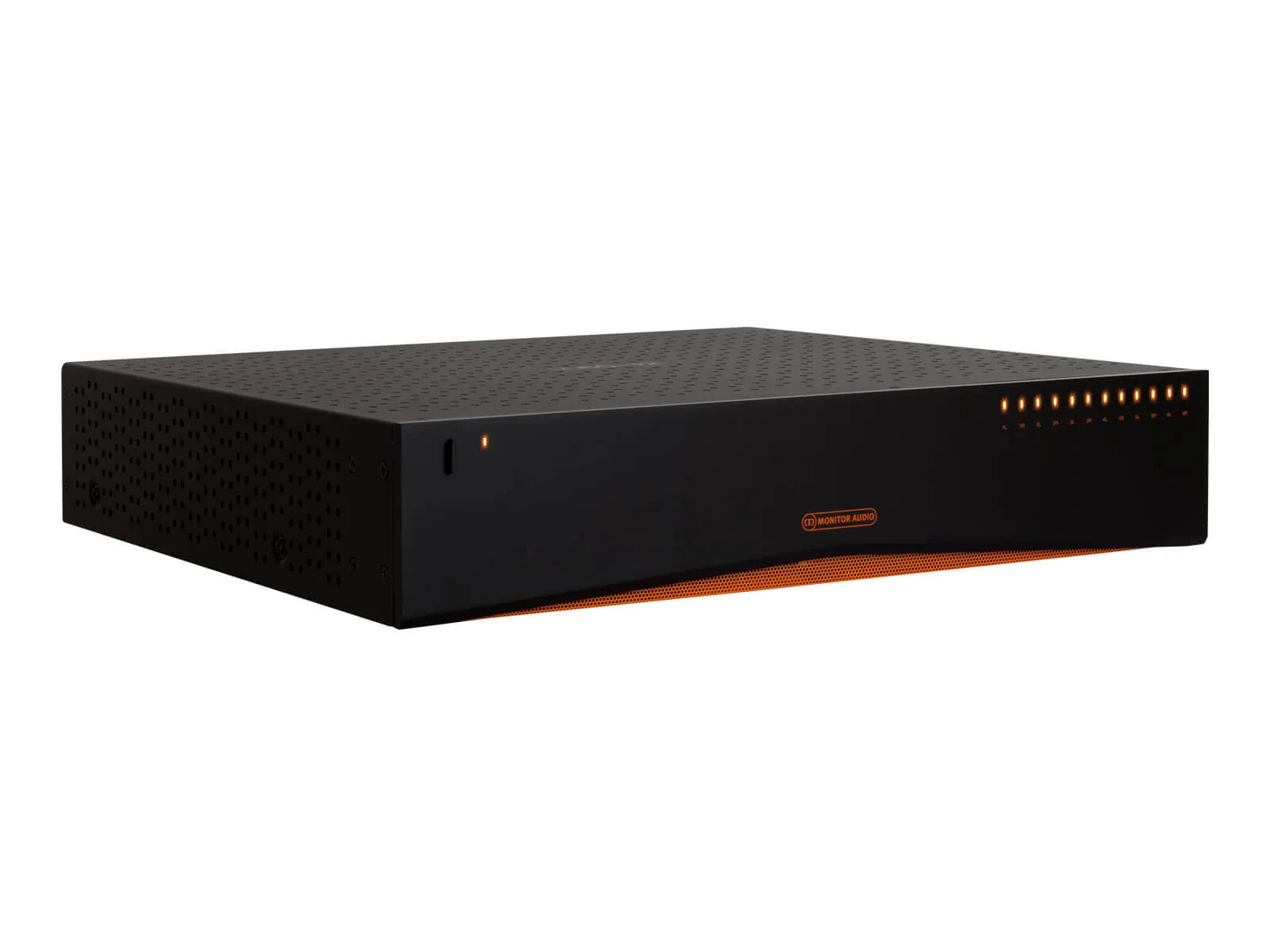

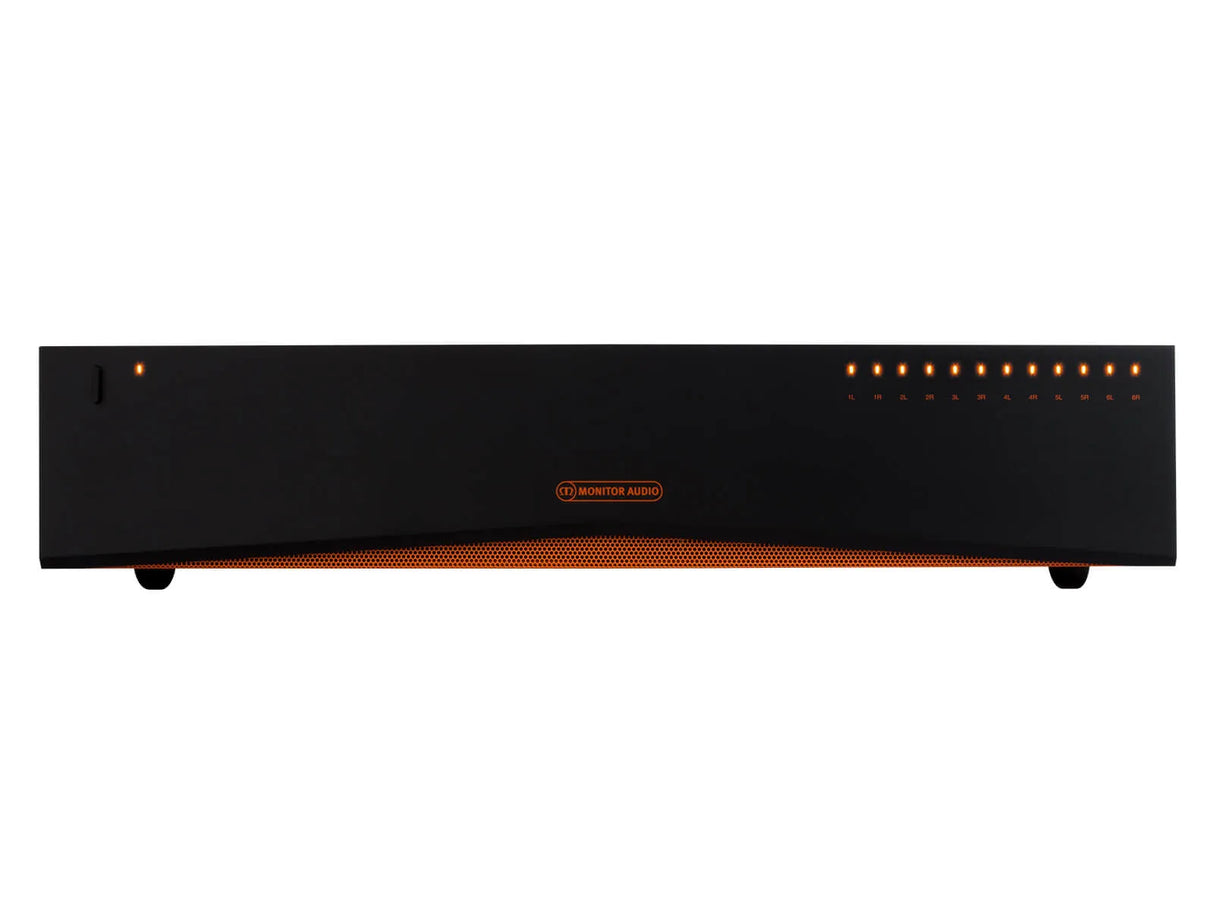

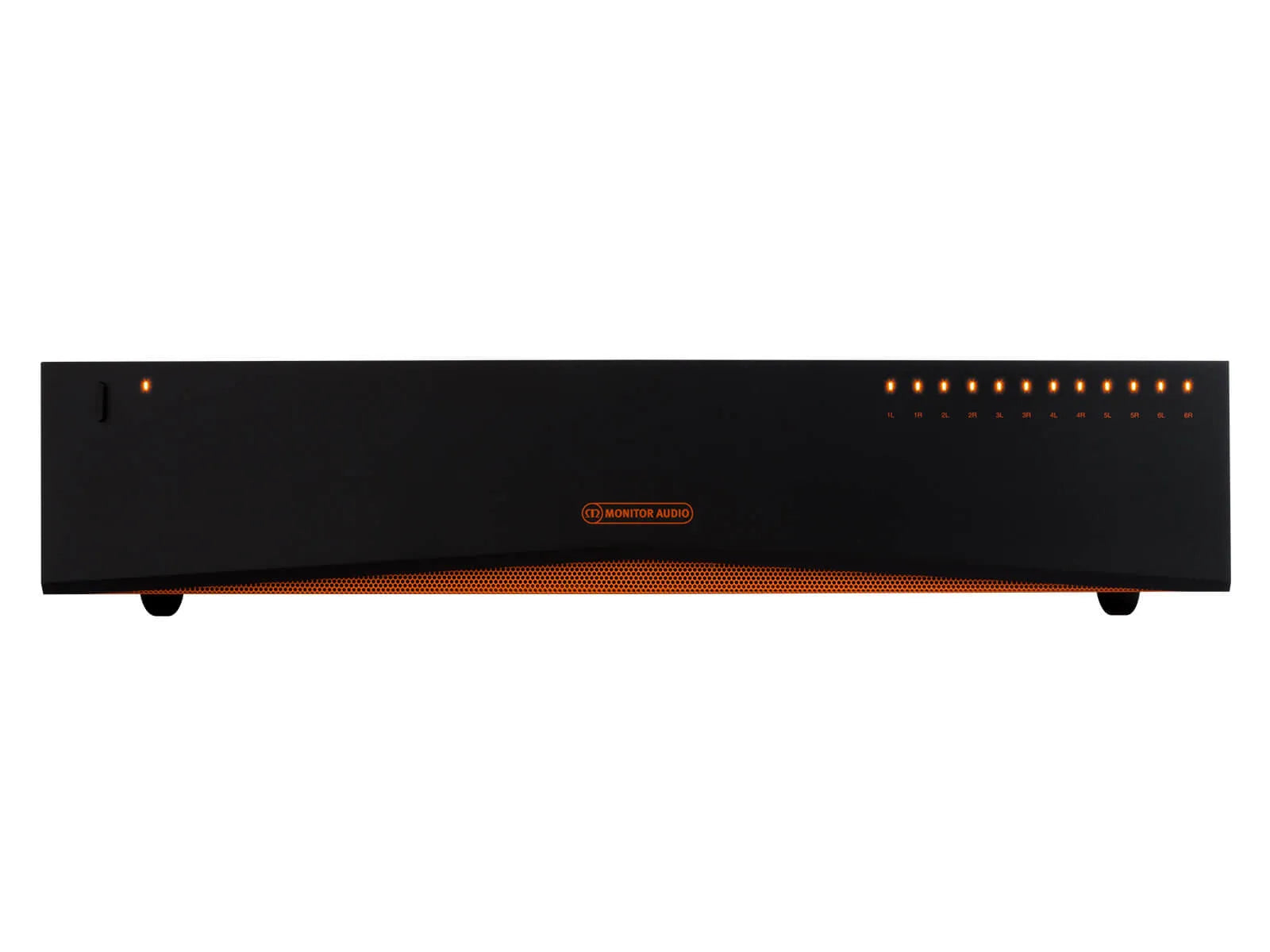

Monitor Audio IA60-12, installation audio amplifier

€1,755.00 EUR

Monitor Audio IA60-12, installation audio amplifier is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

With a discreet design, the 12-channel installation sound amplifier is characterized by excellent technological functionality and excellent performance characteristics.

  • Power: 12 x 60 W.
  • Resistance: 4 ohms.
  • Input sensitivity: 100 mV / 1 W, 700 mV.
  • SN:R frequency: -100 dB (20 Hz - 20 kHz).

From our line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels . Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides a signal for additional amplifiers or other equipment.

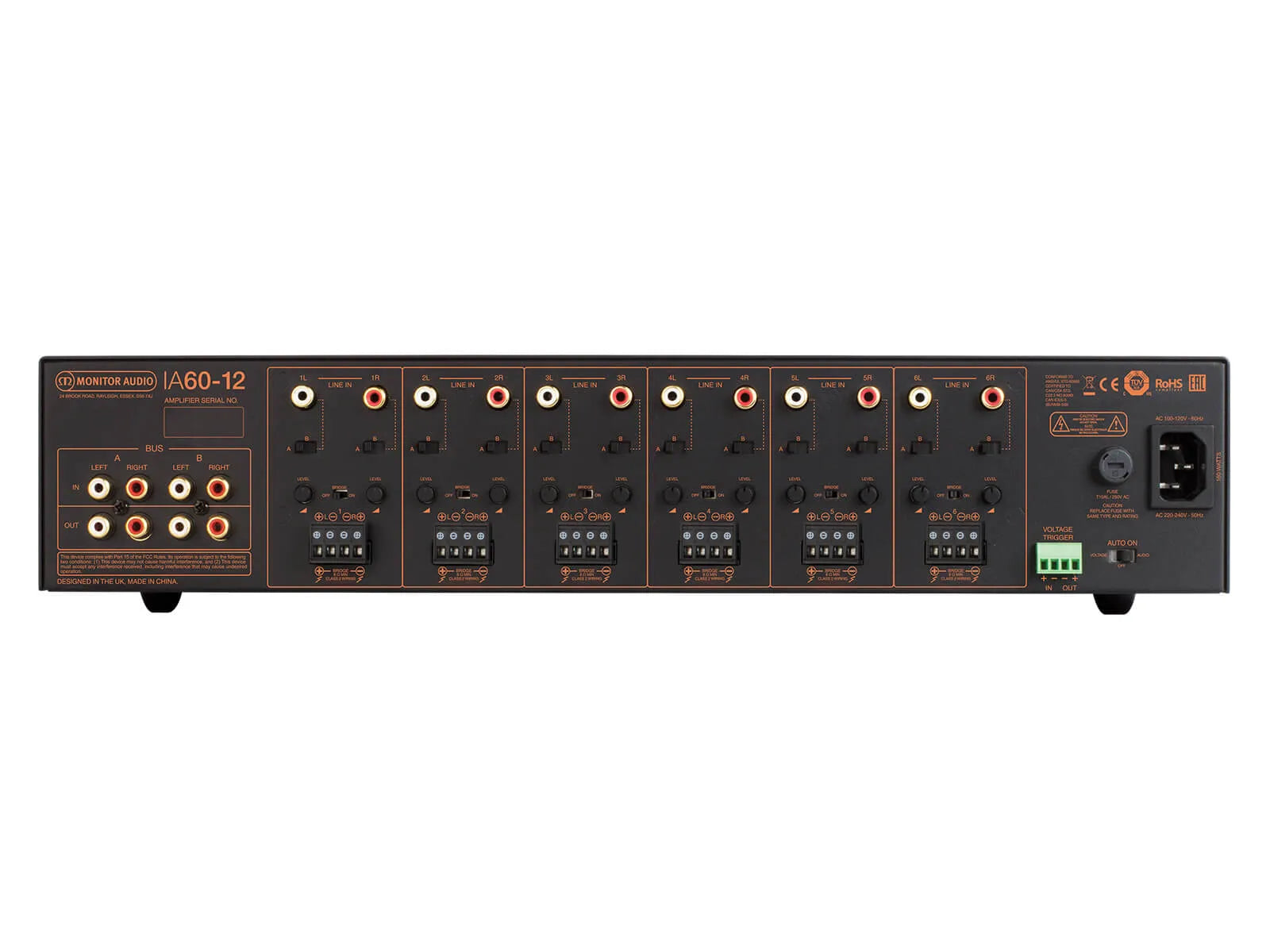

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to succeed in your project.



SPECIFICATIONS

'Connect' IP Control

N/A
Channel Number

12 (6 Stereo Pairs)

Power (W/Channel) | 4 ohms

60 W

Power (W/Channel) | 8 ohms

45 W

Power (W/Channel) | Bridge (8 ohms)

100W (6CH)

Power (W/Channel) | 70V

N/A

Input Impedance

20K ohms

Output Impedance (Loop RCA)

600 ohms

Input Sensitivity

100 mV / 1 W, 700 mV - Full power

Maximum Input Voltage

2.9V

Signal to Noise (SN:R)

-100 dB (20 Hz - 20 kHz)

Frequency Response

5 Hz to 50 kHz

Total Harmonic Distortion THD + N@1 KHz

0.03%

Rack Height

2U

Dimensions (Excluding Feet (H x W x D))

86.8 x 438 x 427 mm (3 7/16 x 17 1/4 x 16 13/16 ")

Dimensions (Including Feet (H x W x D))

97.2 x 438 x 427 mm (3 13/16 x 17 1/4 x 16 13/16 ")

Width (including rack brackets)

482mm (19")

IP Communication

N/A

Change Operating Voltage

100-120V @ 60Hz
220 - 240 V @ 50 Hz

Fuse Rating

10 A (T10AL ~ 250VAC)

Standby Power Consumption

<0.5 W (green mode)

Networked Standby Power Consumption

N/A

Weight

7.34 kg (16 lb 2 oz)

Sold As

Single Unit




INSTRUCTIONS

User Manual (EN).
