Monitor Audio

Monitor Audio IA800-2C, installation audio amplifier

€2,240.00 EUR

Monitor Audio IA800-2C, installation audio amplifier is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.


Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

With a discreet design, the 2-channel installation sound amplifier is characterized by excellent technological functionality. It is one of the best and most powerful amplifiers in its class.

  • Power: 2 x 800 W.
  • Resistance: 4 ohms.
  • IP Management is supported.
  • SN:R frequency: -100 dB (20 Hz - 20 kHz).

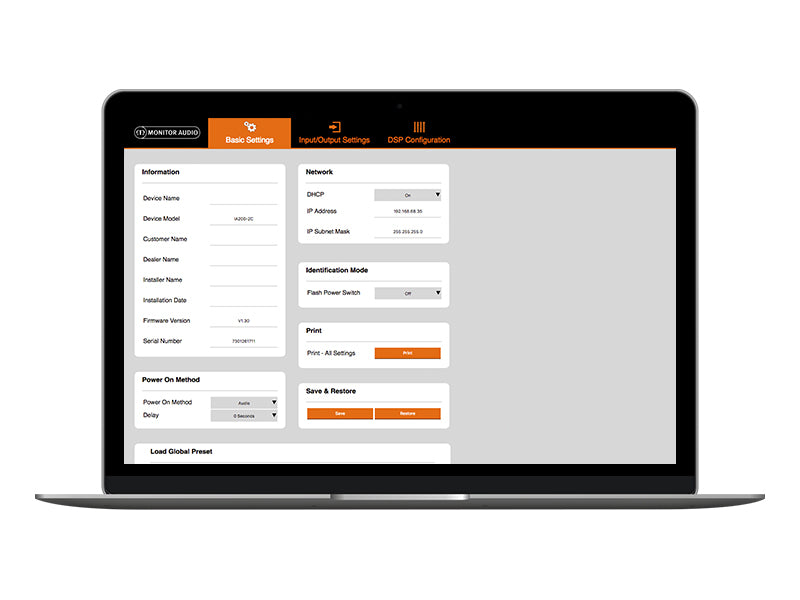

The IA800-2C is part of our Connect Amplifiers division, bringing our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

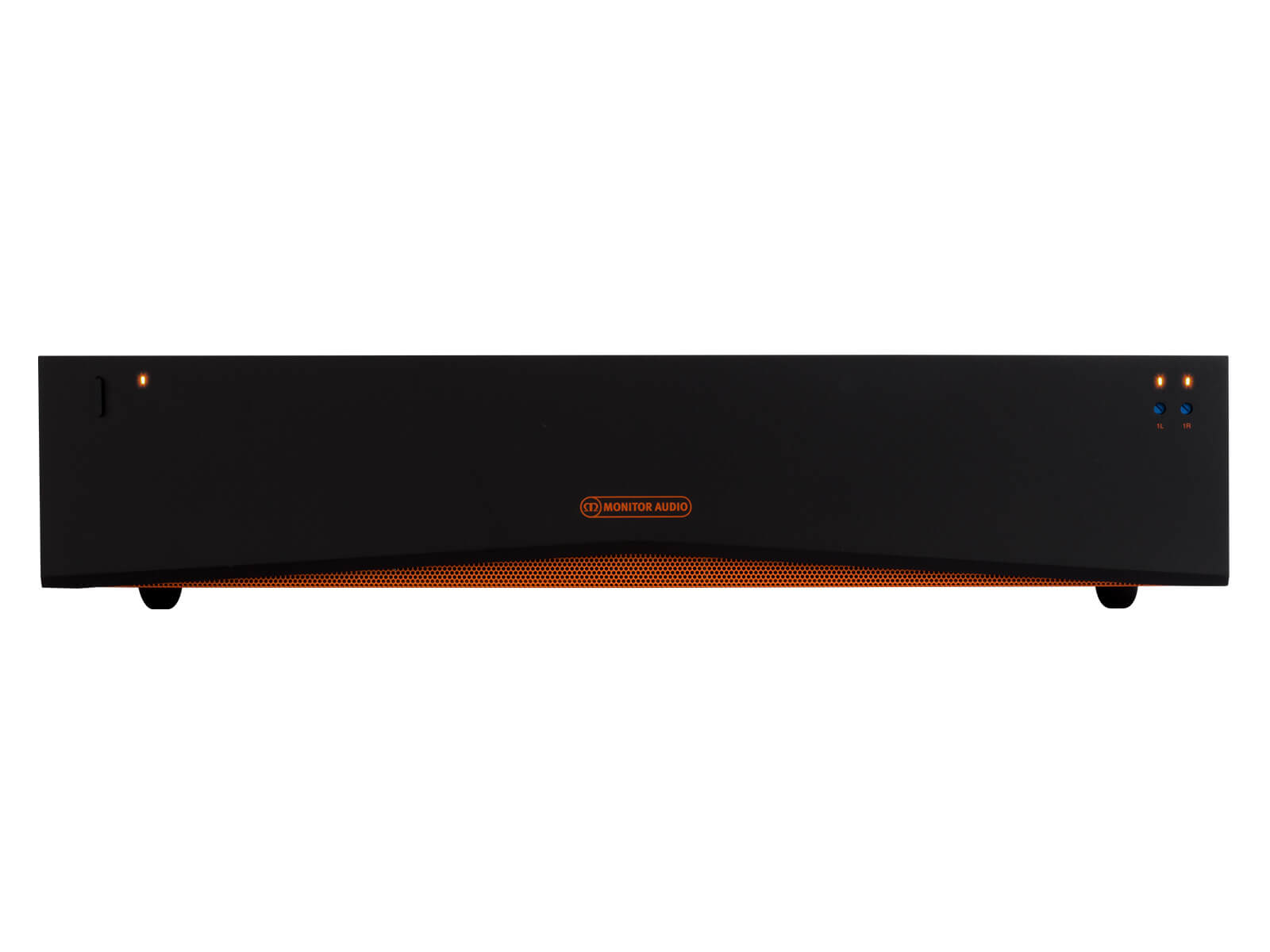

Fluently delivering up to 800 watts per channel, this two-channel powerhouse can directly drive 70 V line speakers without a line matching transformer. Each channel has a volume adjustment on the front panel and the 2U high case universally fits into most racks while delivering 93% energy efficiency. And even though its likely to live its life on the rack, our design team have produced an especially handsome Installation Amplifier. Ready and waiting for any project.

Works with -


SPECIFICATIONS

'Connect' IP Control

Yes

Channel Number

2 (1 Stereo Pair)

Power (W/Channel) | 4 ohms

800 W

Power (W/Channel) | 8 ohms

500 W

Power (W/Channel) | Bridge (8 ohms)

2000W (1CH)

Power (W/Channel) | 70V

800 W

Input Impedance

20K ohms

Output Impedance (Loop RCA)

600 ohms

Input Sensitivity

100 mV / 1 W, 2200 mV - Full power

Maximum Input Voltage

2.9V

Signal to Noise (SN:R)

-100 dB (20 Hz - 20 kHz)

Frequency Response

5 Hz to 50 kHz

Total Harmonic Distortion THD + N@1 KHz

0.03%

Rack Height

2U

Dimensions (Excluding Feet (H x W x D))

86.8 x 438 x 438 mm (3 7/16 x 17 1/4 x 16 13/16 ")

Dimensions (Including Feet (H x W x D))

97.2 x 438 x 438 mm (3 13/16 x 17 1/4 x 16 13/16 ")

Width (including rack brackets)

482mm (19")

IP Communication

TCP/IP (RJ-45 10/100 Base T)

Change Operating Voltage

100-120V @ 60Hz
220 - 240 V @ 50 Hz

Fuse Rating

100-120VAC: T15AL/250V AC
220-240VAC: T10AL/250V AC

Standby Power Consumption

<0.5 W (green mode)

Networked Standby Power Consumption

<2W

Weight

9.2 kg (20 lb 4 oz)

Sold As

Single Unit

INSTRUCTIONS

User Manual (EN). The latest drivers are required to ensure good operation of the amplifier. You can download them here:LATEST DRIVERS.
