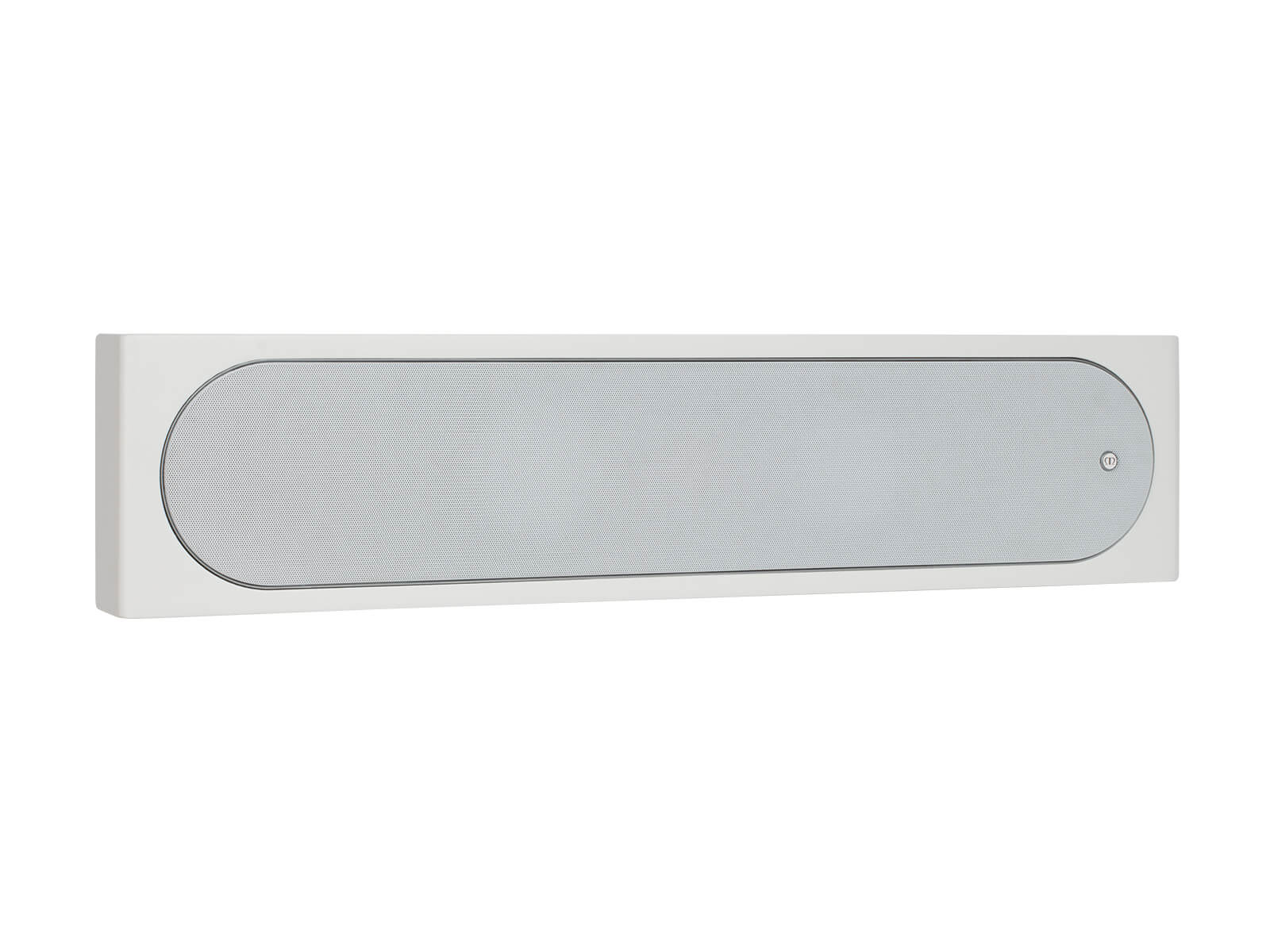

Monitor Audio Radius 225. central speaker (various colors)

€435.00 EUR

Color

Product variants

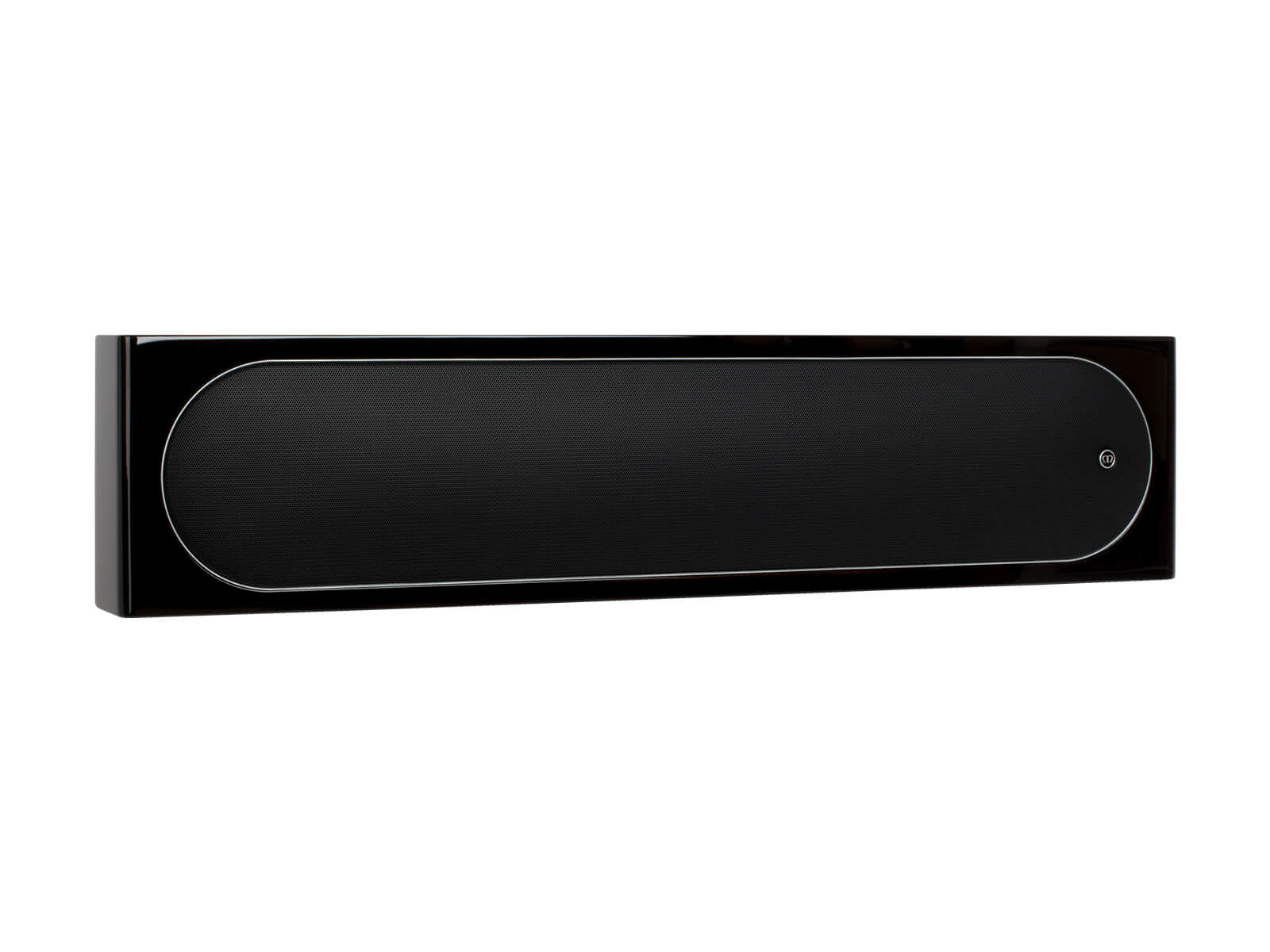

Monitor Audio Radius 225. central speaker (various colors) - Gloss Black Lacquer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

You do not collect sound columns ?

We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

Radius series central speaker from Monitor Audio with an exclusive design and high-quality sound. A column that will not leave you indifferent!

Power: 150W.
Frequency band: 80 Hz — 35 kHz.
Sensitivity: 87 dB.
Resistance: 6 ohms.

DESCRIPTION

This product is now available to use with home theater design software, The CEDIA Designer. Read more .

Technology

4" C-CAM bass driver - Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modeling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
C-CAM Gold Dome tweeter - optimized to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
HiVe II port design - Straight from Platinum's design blueprint, the HiVe reflex port makes its Radius debut. It's shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
Comes complete with a dedicated wall bracket.

TECHNICAL DATA

SPECIFICATIONS

Frequency Response

80 Hz — 35 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

100W

System Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 — 150 W

Maximum SPL

107 dBa

Bass Alignment

Bass reflex - Front ported

Drive Unit Complement

2 x 4" (100mm) C-CAM cone bass/mid driver
1 x 1" (25mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)

140 x 610 x 67 mm (5 ^1/2 x 24 x 2 ^5/8 ")

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

140 x 610 x 77mm (5 ^1/2 x 24 x 3 ^1/16 ")

Cabinet Dimensions (Including Grille and Bracket (H x W x D))

140 x 610 x 84 mm (5 ^1/2x 24 x 3 ^5/16 ")

Pre-Construction Bracket

Dedicated bracket included

Weight

4.2 kg (9 lb 4 oz)

Sold As

Single Unit

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
