Monitor Audio

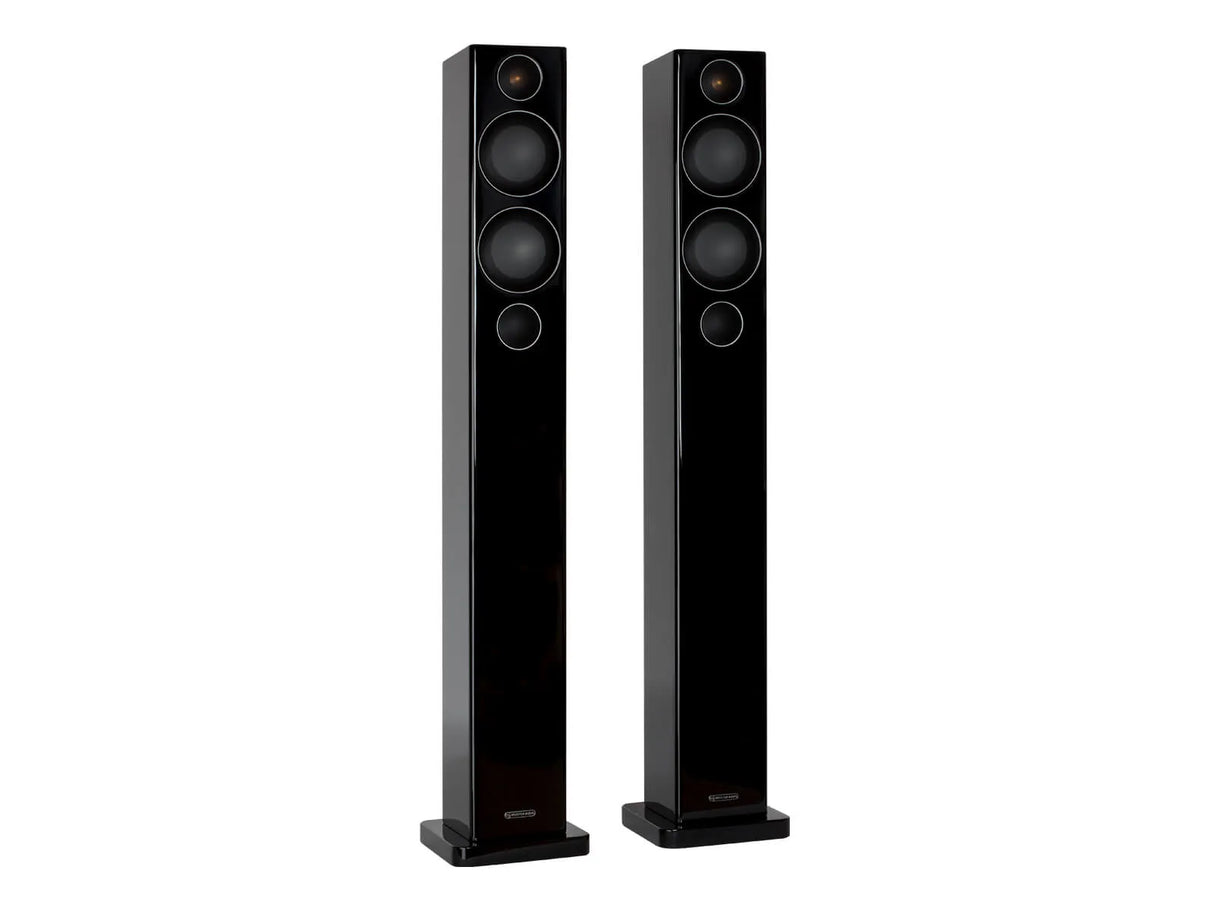

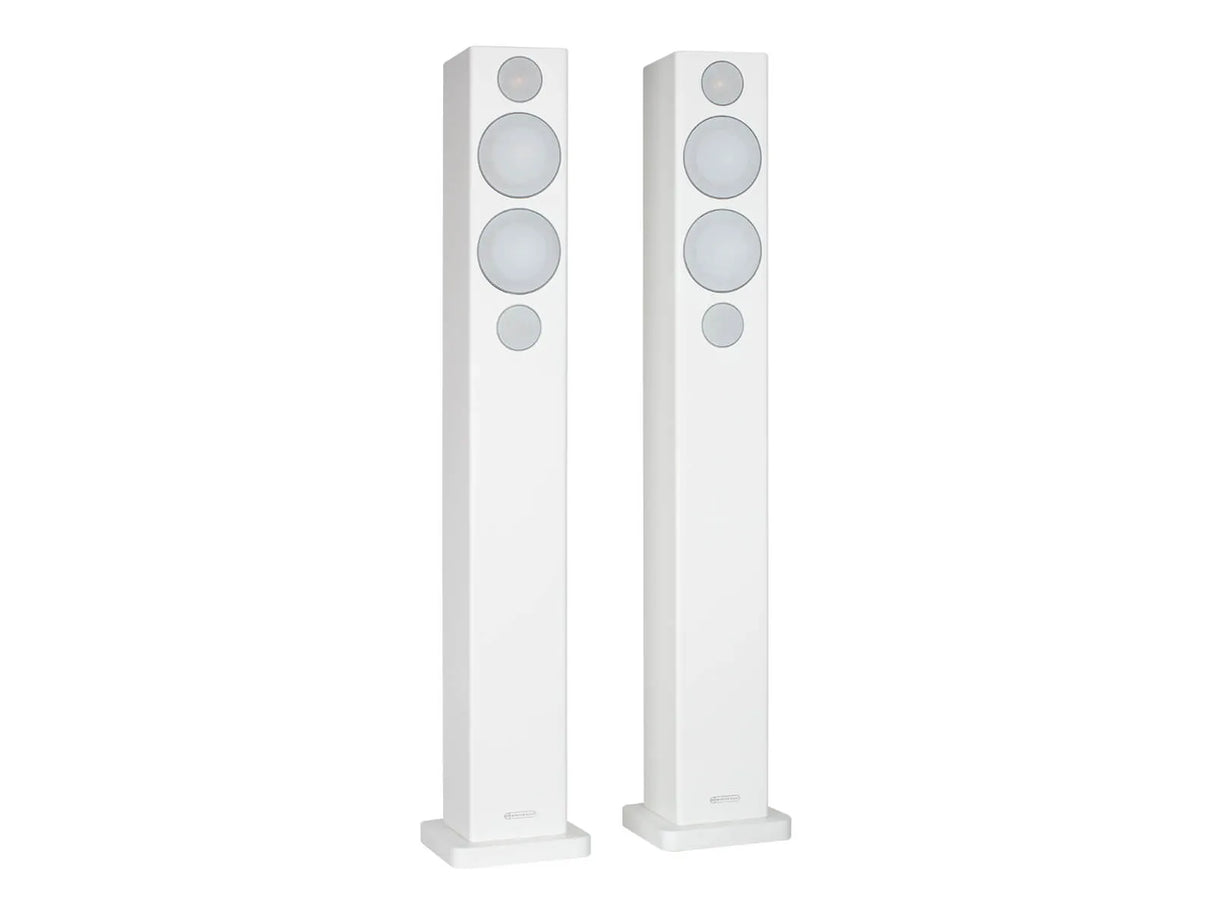

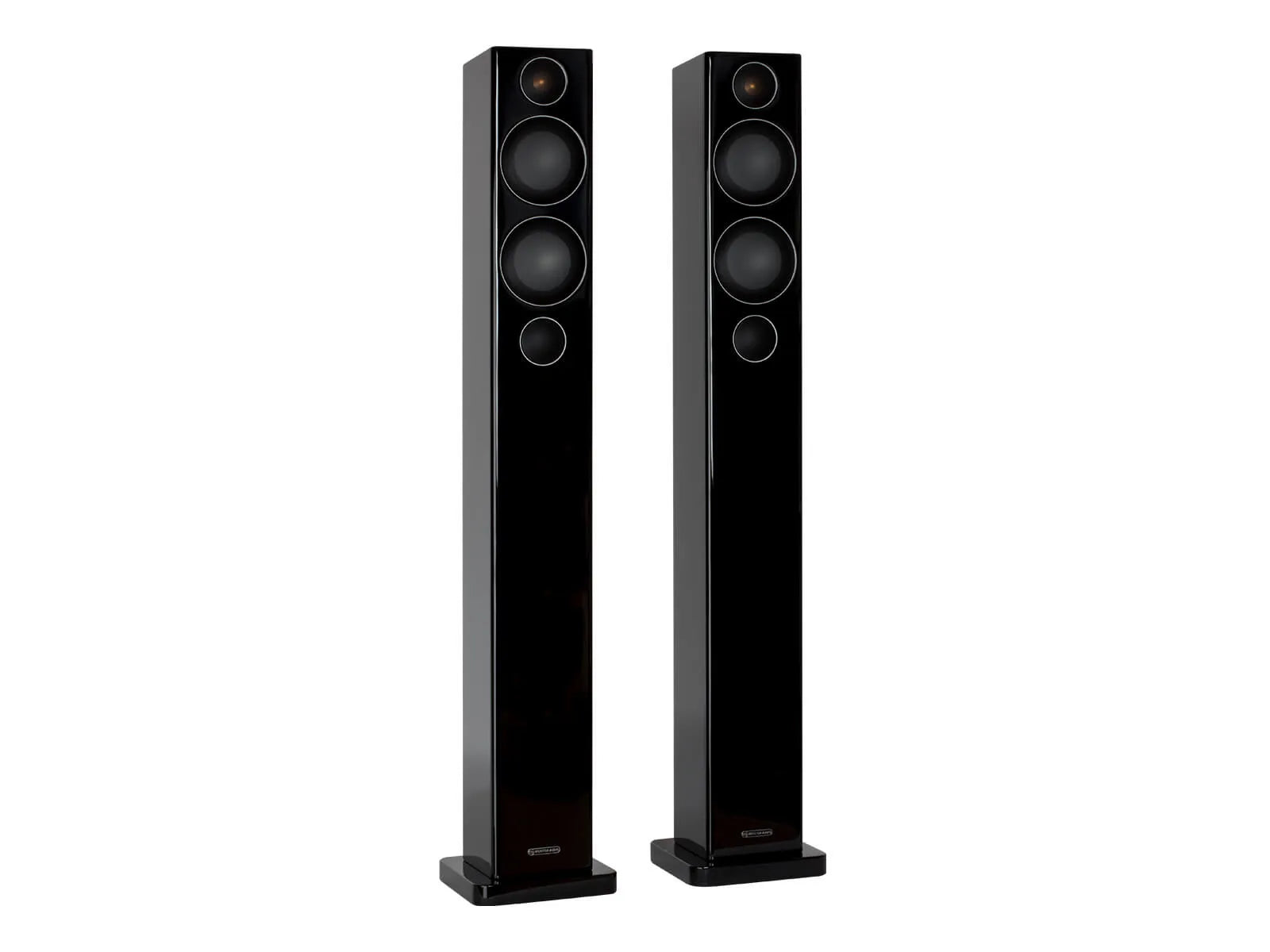

Monitor Audio Radius 270. floor speaker (various colors)

€1,155.00 EUR

Monitor Audio Radius 270. floor speaker (various colors) - Gloss Black Lacquer is backordered and will ship as soon as it is back in stock.

Neišsirenkate garso kolonėlių namams? Turime Jums sprendimą!
Kviečiame atvykti garso aparatūros perklausai.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Atsiimkite parduotuvėje 0 €

Display general product information or specific product information using metafields.

Floor speakers that will not leave you indifferent with their sound and will impress even those who have heard everything!

  • Power: 150W.
  • Frequency band: 50 Hz — 35 kHz.
  • Sensitivity: 87 dB.
  • Resistance: 6 ohms.

This product is now available to use with home theater design software, The CEDIA Designer. Read more .

  • 4" C-CAM bass driver - Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and subsequently applied to Gold GX. Extensive research and FEA modeling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
  • C-CAM Gold Dome tweeter - optimized to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
  • HiVe II port design - Straight from Platinum's design blueprint, the HiVe reflex port makes its Radius debut. It's shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
  • Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.

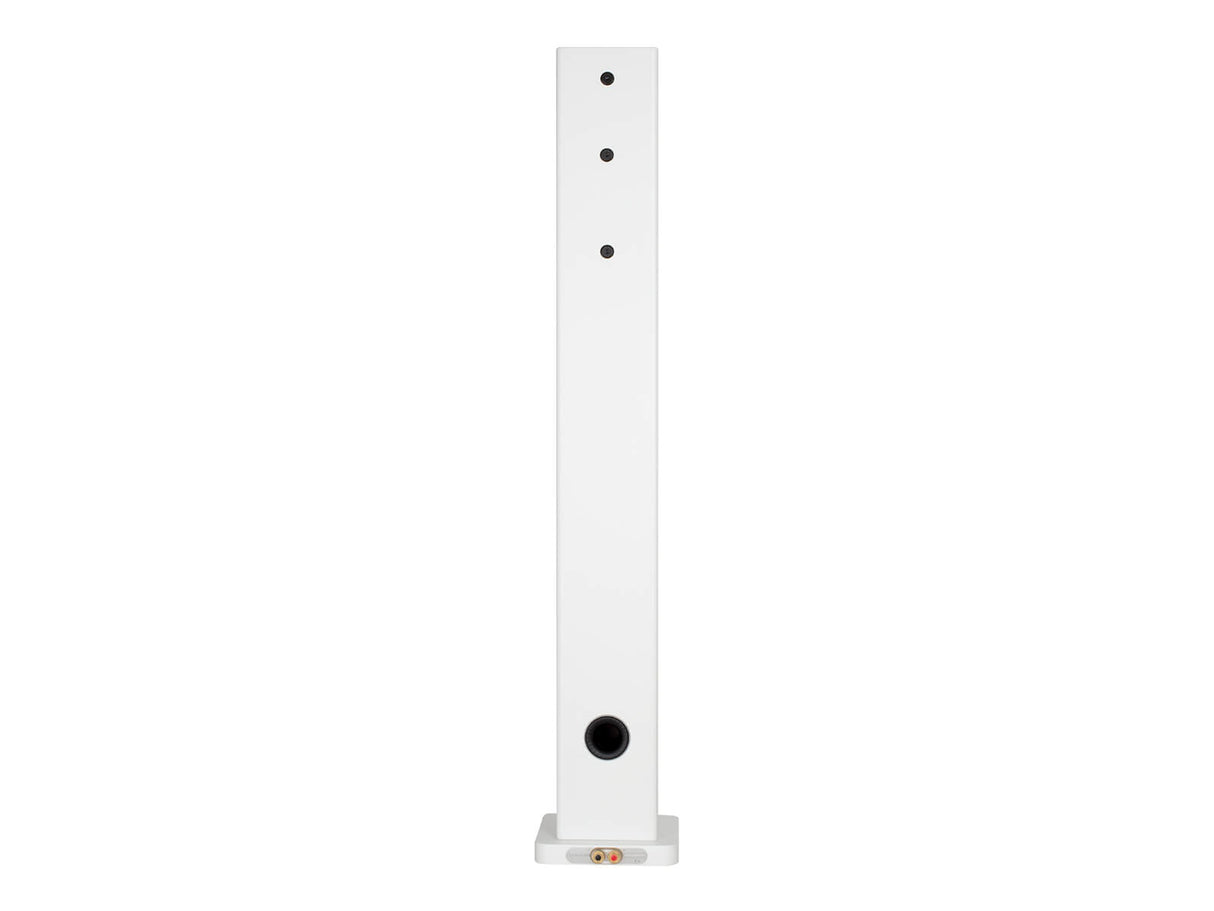

  • Front and rear ported reflex design

SPECIFICATIONS

Frequency Response

50 Hz — 35 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

100W

System Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 — 150 W

Maximum SPL

107 dBa

Bass Alignment

Bass reflex - Front and rear ported

Drive Unit Complement

2 x 4" (100mm) C-CAM cone bass/mid driver
1 x 1" (25mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)

1000 x 177 x 208 mm (39 3/8 x 6 15/16 x 8 3/16 ) Inc Plinth, Without Spikes

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

1025 x 177 x 208 mm (40 3/8 x 6 15/16 x 8 3/16 ") Inc Plinth, With Spikes

Weight

9.9 kg (21 lb 12 oz)


INSTRUCTIONS

User Manual (EN).

Categories

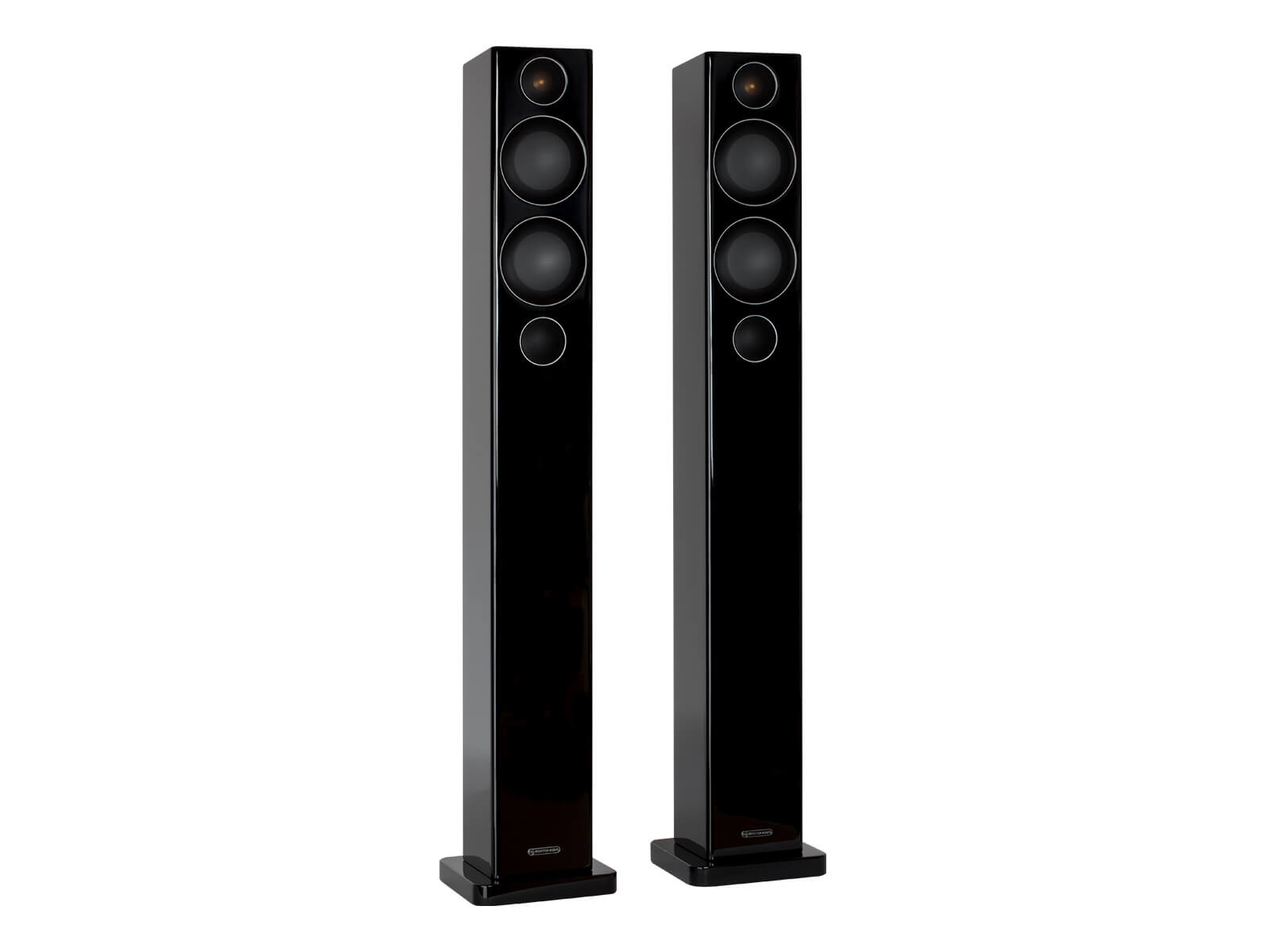

Monitor Audio Radius 270. grindinė garso kolonėlė (įvairių spalvų) - Lacquer Black
