Monitor Audio Radius 380, subwoofer (various colors)

€780.00 EUR

Monitor Audio Radius 380, subwoofer (various colors) - Gloss Black Lacquer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


You do not collect sound columns ?

We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

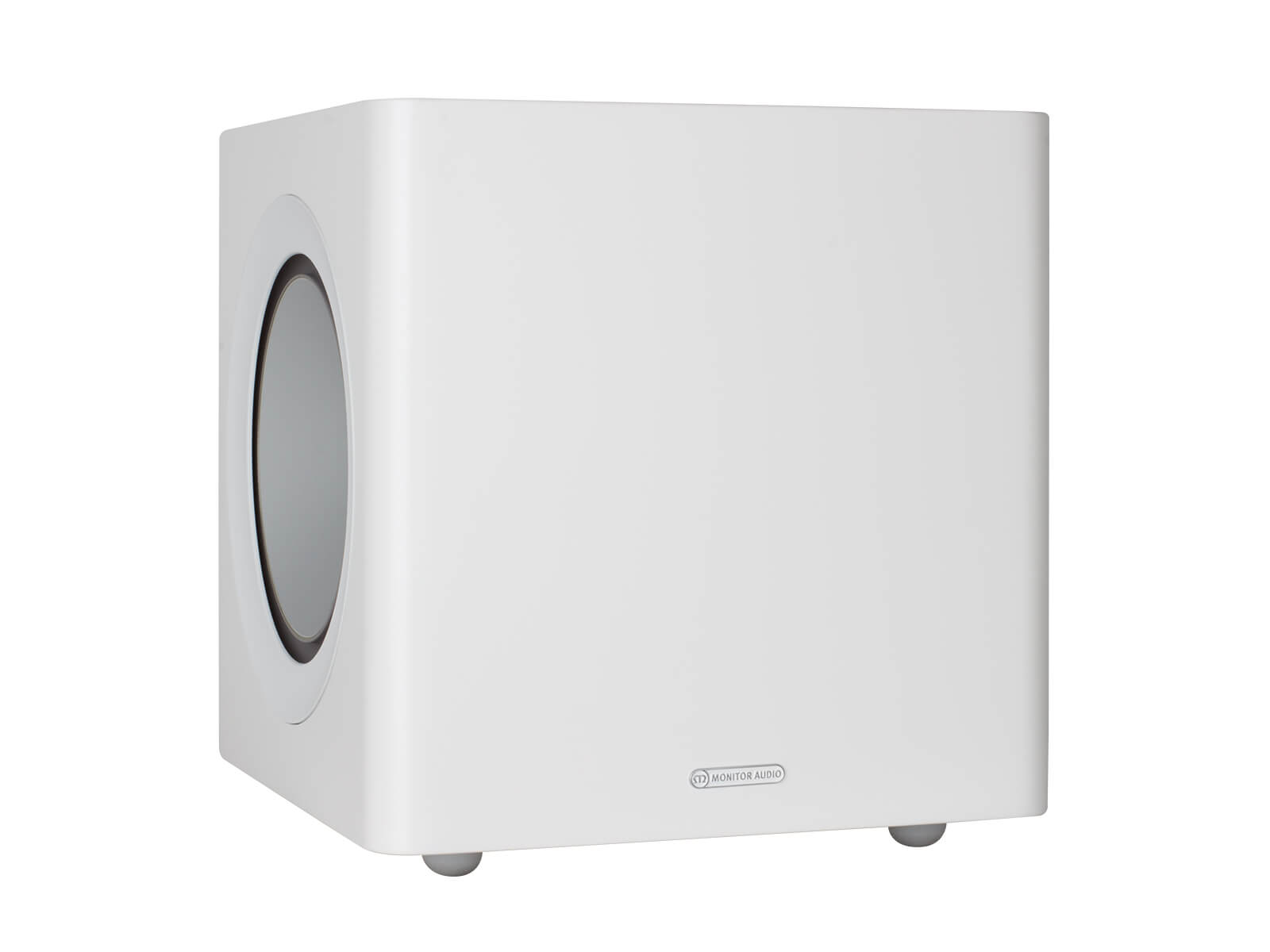

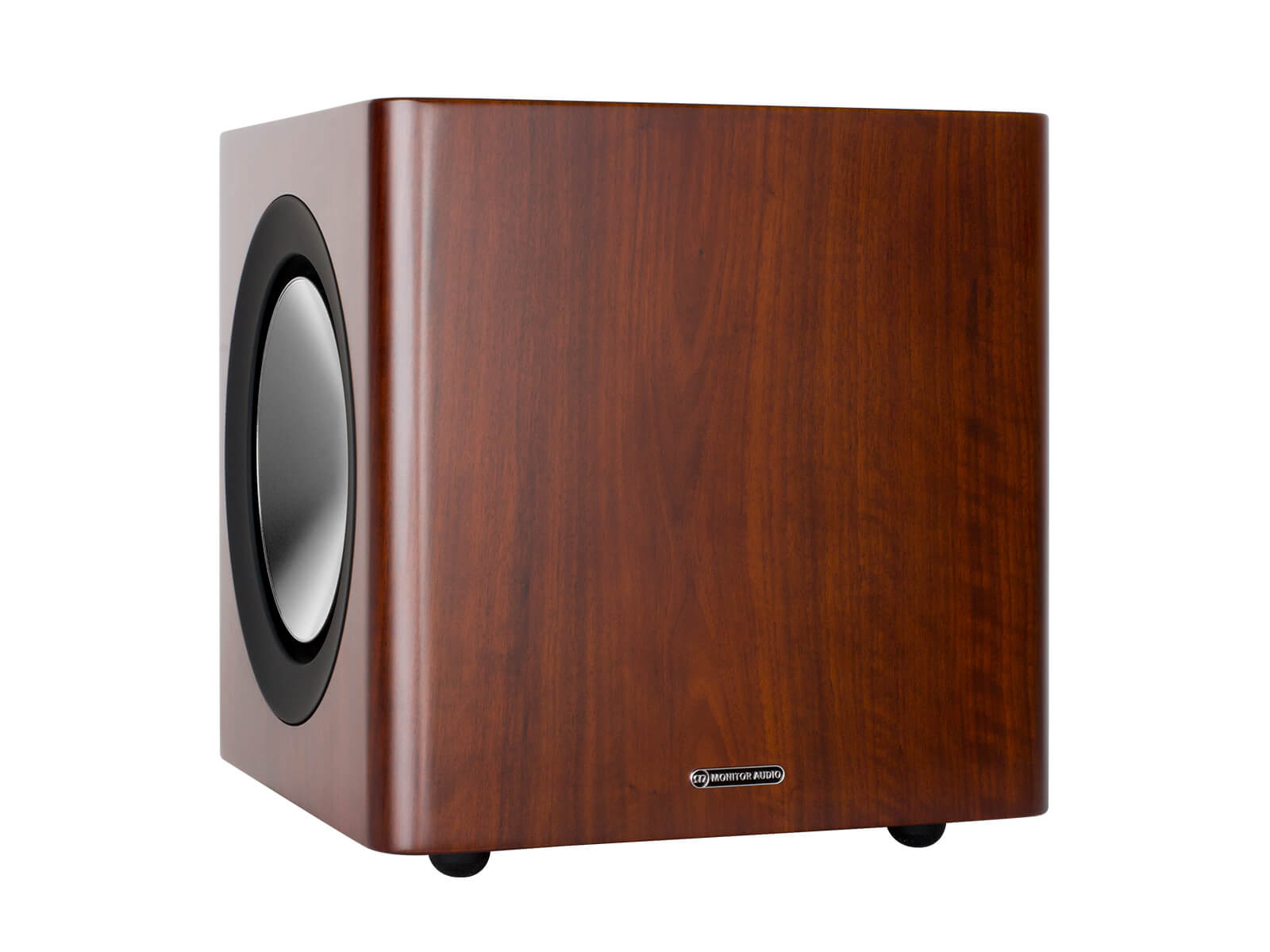

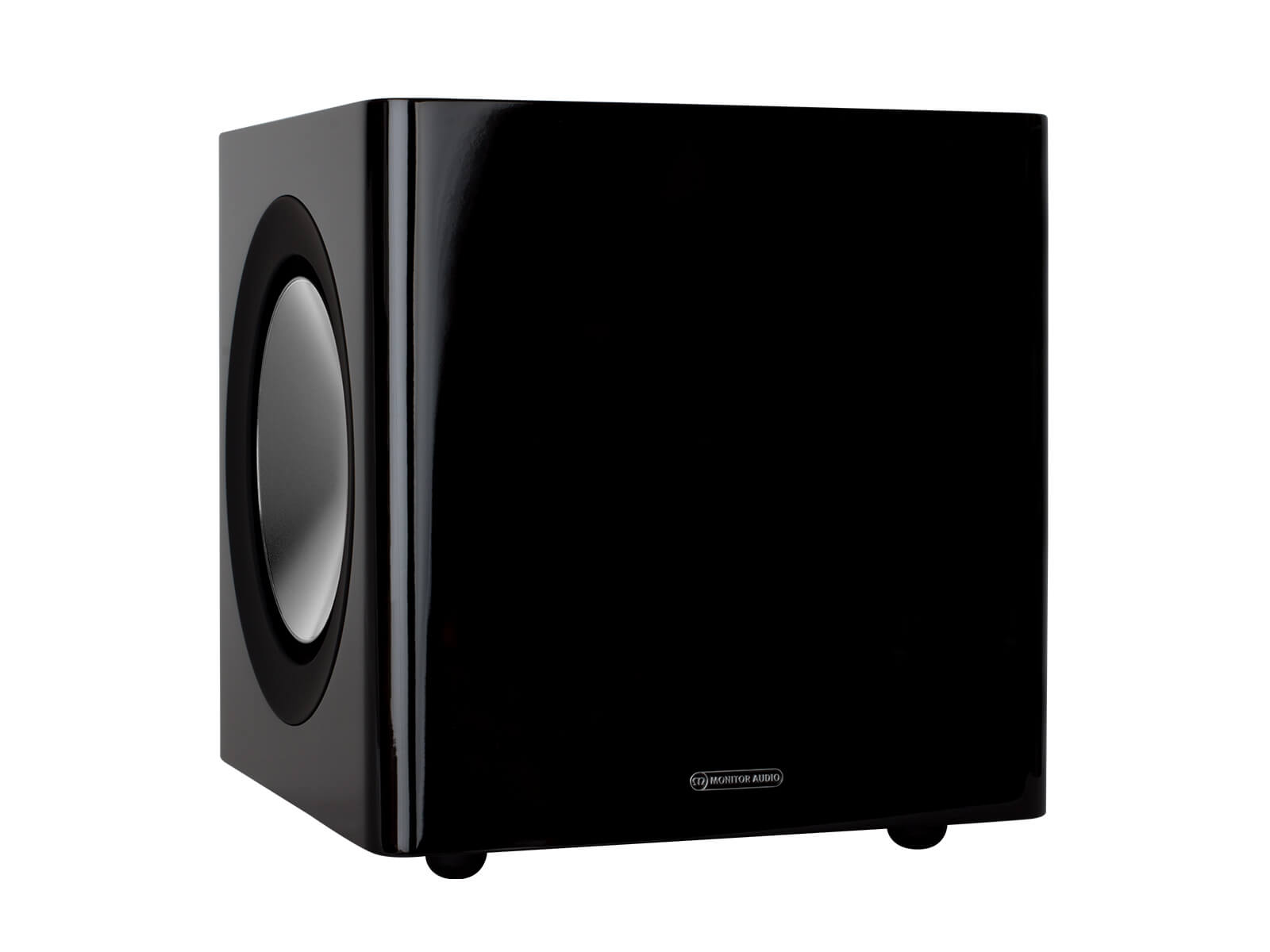

The Radius series subwoofer from Monitor Audio has an exclusive design and high-quality sound. A column that will not leave you indifferent with its features!

  • Power: 140W.
  • Class D amplifier.
  • MDF body.
  • Resistance: > 20 ohms.

This product is now available to use with home theater design software, The CEDIA Designer. Read more .


Technology

  • 18 mm MDF cabinet construction with internal bracing
  • Cool-running 140 W Class D amplifier with switch mode power supply (SMPSU)
  • Twin side-firing 8" C-CAM drivers - one active and one passive ABR
  • Low pass filter switch – for LFE or Stereo input selection
  • Power switch with ON – Auto-Off/ trigger settings
  • Stereo/ LFE RCA inputs
  • 3 x Pre-set EQ settings – Music/Movie/Impact

SPECIFICATIONS

System Format

Active sub-woofer system – Auxiliary ( ABR ) loading. 18 mm MDF cabinet

Lower Frequency Limit

30Hz (-6dB)

Upper Frequency Limit

Variable 40 – 120 Hz @ 24 dB/Octave

Amplifier Output

140 W @ 1% THD+N

Amplifier Classification

Class D amplifier with Switch mode power supply (SMPSU)

Bass EQ Profiles

Music / Movie / Impact

Phase Control

0 & 180 degrees

Auto Sensing

Line Level >3.5mV

Input Level Requirements

Standby after approximately 15 minutes if no signal is sensed

Drive Unit Complement

1 x 8” (200mm) C-CAM long throw driver 1 x 8” (200 mm) ABR

Input Impedance

> 20 ohms

Changes Input Voltage

AC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)

Dimensions (Including Amp and Feet (H x W x D))

308 x 290 x 305 mm (12 1/8 x 11 7/16 x 12")

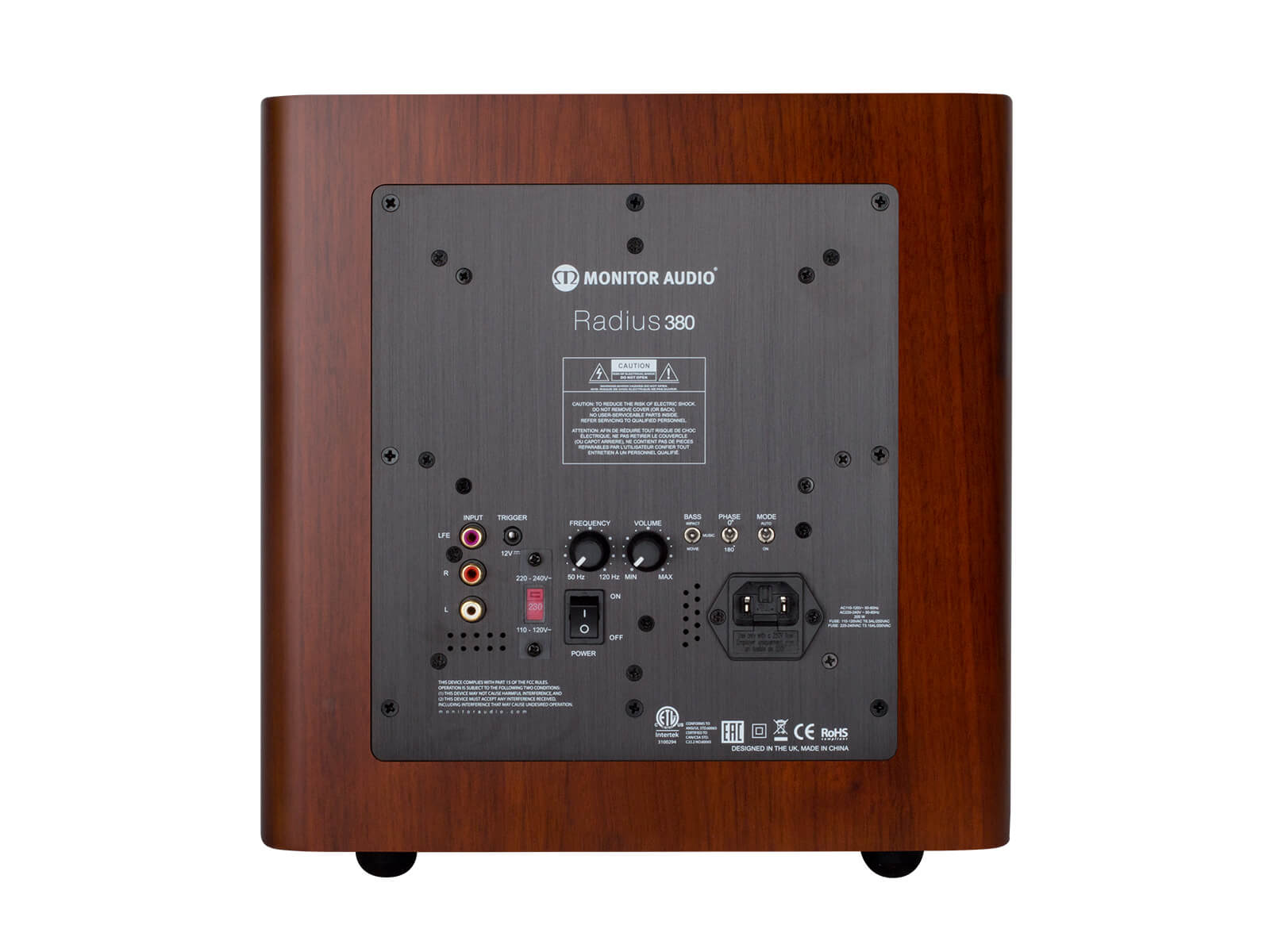

Connection

Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)

Trigger Input

5 - 12v via 3.5 mm mono mini-jack socket

Power Consumption

200 W / 0.5 W in Standby (ErP approved)

Weight (unpacked)

10.16 kg (22 lb 6 oz)

Sold As

Single Unit


INSTRUCTIONS

User Manual (EN).
