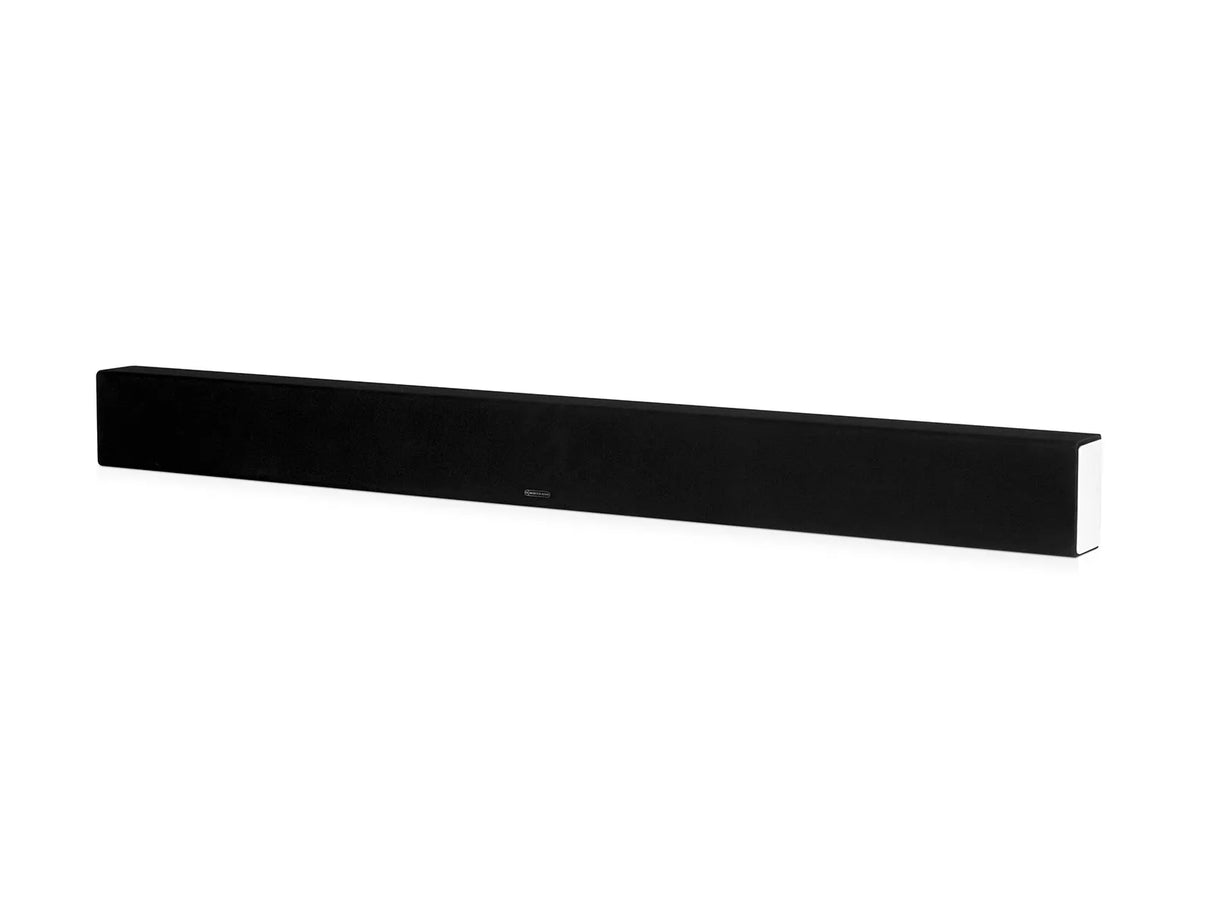

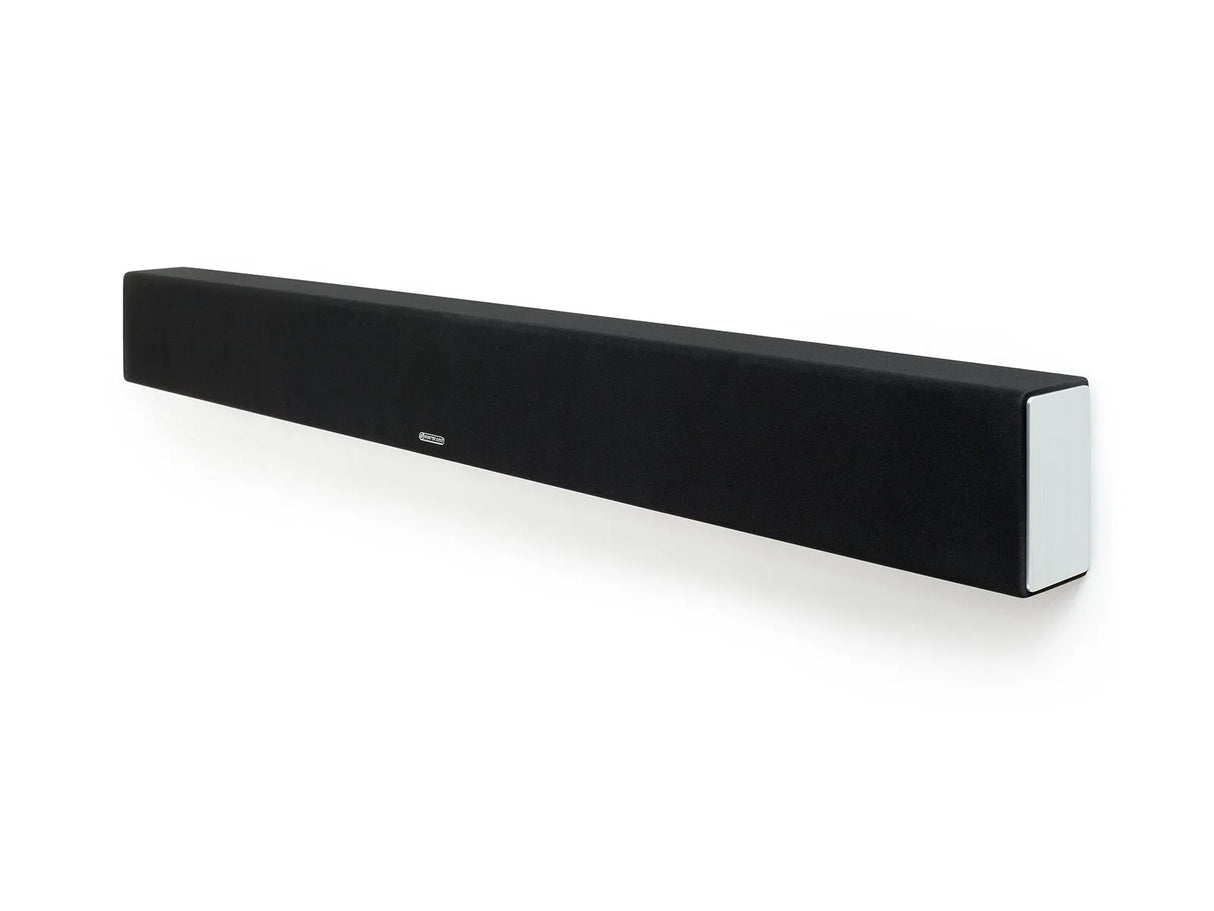

Monitor Audio SB-4, passive soundbar
Monitor Audio SB-4, passive soundbar - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
You do not collect sound columns ?
You do not collect sound columns ?
We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.
Delivery home from € 4.99
Delivery home from € 4.99
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up in the store for € 0
Pick up in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
Passive, compact SB-4 soundbar. This soundbar works best with TVs larger than 70 inches.
- Power: 100W.
- Frequency range: 70 Hz - 30 kHz.
- Sensitivity: 87 dB.
- Resistance: 8 ohms.
The SB-4 incorporates a series of clever technical features and design innovations which demonstrate Monitor Audio's revered attention to detail and commitment to quality.
Ease of installation is another key advantage of the SB-4. High quality, low profile binding posts provide an easy and trouble free connection, with the terminals recessed neatly to enable a flush to wall installation. The terminal panel also houses standard fixing points compatible with SANUS TV mounts, with many options for TV and wall installation. Wall mounting is also possible using Monitor Audio's low-profile wall mount bracket with cable access, easy pre-alignment and fixing template.
The SB-4 is designed to be used with a partnering sub-woofer and crossed over to provide the best possible experience and increased system power handling. Alternatively, the soundbar can be used independently to deliver an impressive uplift in TV audio performance with only a slightly reduced power handling.
Technology
- All MDF construction. Internally braced for additional rigidity
- Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet
- Wrap around acoustically open, black cloth finish with solid brushed Silver aluminum end trims – provides stealthy appearance for perfect placement near a TV

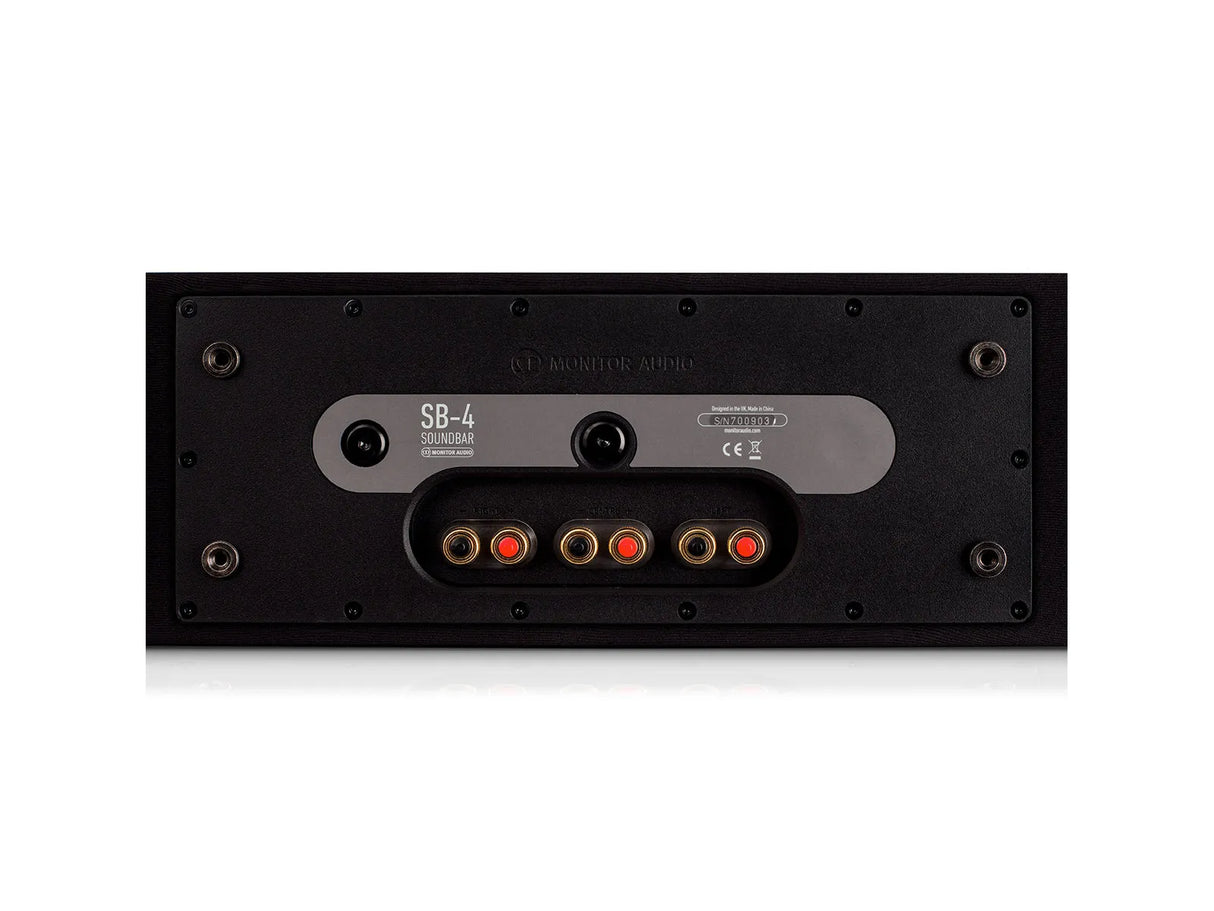

- Neat terminal panel with high quality, low profile gold plated binding post terminals
- High quality crossovers utilizing polypropylene capacitors and low loss laminated steel core inductors
- Designed to fit SANUS TV mounting systems
- Optional sturdy wall bracket with cable hole access and template installation
- Low profile Silicon rubber feet integrated for secure cabinet top placement
SPECIFICATIONS
Frequency Response (-3 dB)
70 Hz - 30 kHz
Sensitivity (1W@1M)
87 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
80W
System Power Handling (RMS)
100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements
30 - 100 Watts
Crossover Frequency
80 — 120 Hz
Maximum SPL
104 (108.8 all channels driven)
Bass Alignment
Left and Right Channels: 1 x Auxiliary Bass Reflex ( ABR ) Loading.
Center Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
All Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1562 x 92mm (5 13/16 x 61 1/2 x 3 5/8 ")
External Dimensions (Including Bracket (H x W x D))
145 x 1562 x 100 mm (5 3/4 x 61 1/2 x 3 15/16 ")
Bracket
BSB
Weight
12 kg (26 lb 7 oz)
Sold As
Single Unit
