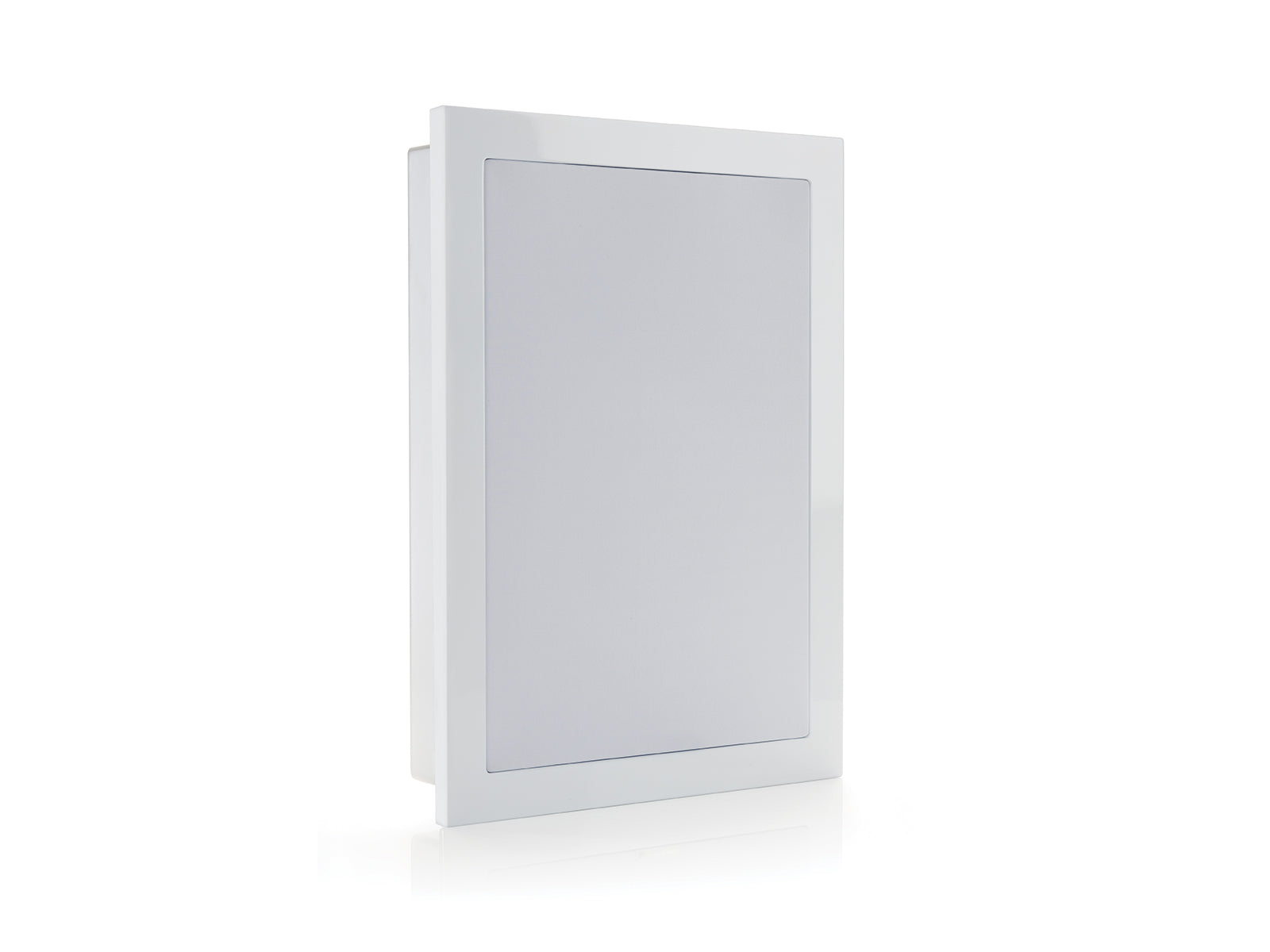

Monitor Audio SoundFrame 1 In-Wall, wall-mounted sound column (various colors)
Monitor Audio SoundFrame 1 In-Wall, wall-mounted sound column (various colors) - Black is backordered and will ship as soon as it is back in stock.
Can't choose speakers for your home? We have a solution for you!
We invite you to come for an audition of the audio equipment .
Neišsirenkate garso kolonėlių?
Neišsirenkate garso kolonėlių?
Display general product information or specific product information using metafields.
Home delivery from €4.99
Home delivery from €4.99
Venipak courier within 1-2 working days.
Collect in store €0
Collect in store €0
Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
Wall-mounted sound frame of the SoundFrame series from Momitor Audio. If necessary, this column can be installed with or without a frame.
- Power: 100W.
- Frequency band: 55 Hz — 35 kHz.
- Sensitivity: 86dB.
- Resistance: 8 ohms.
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

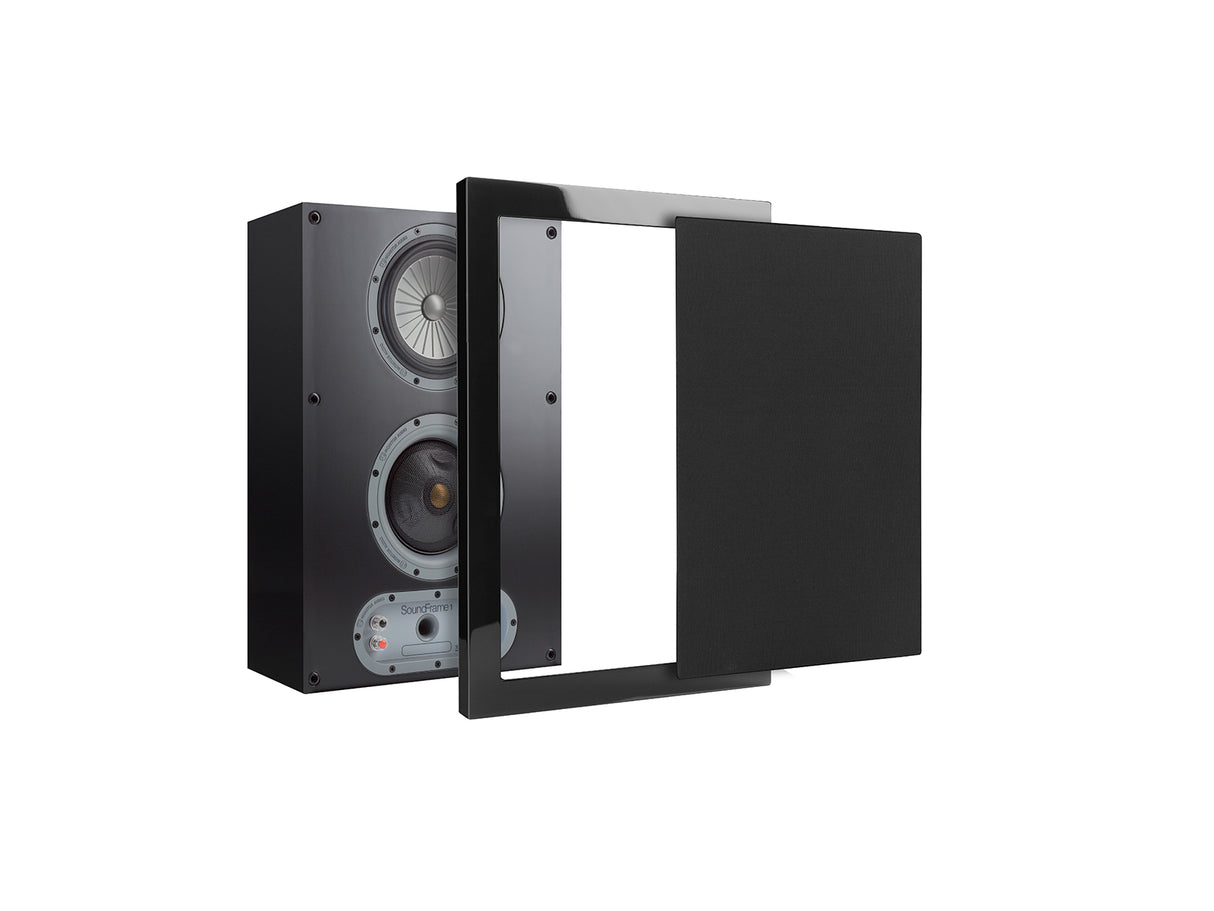

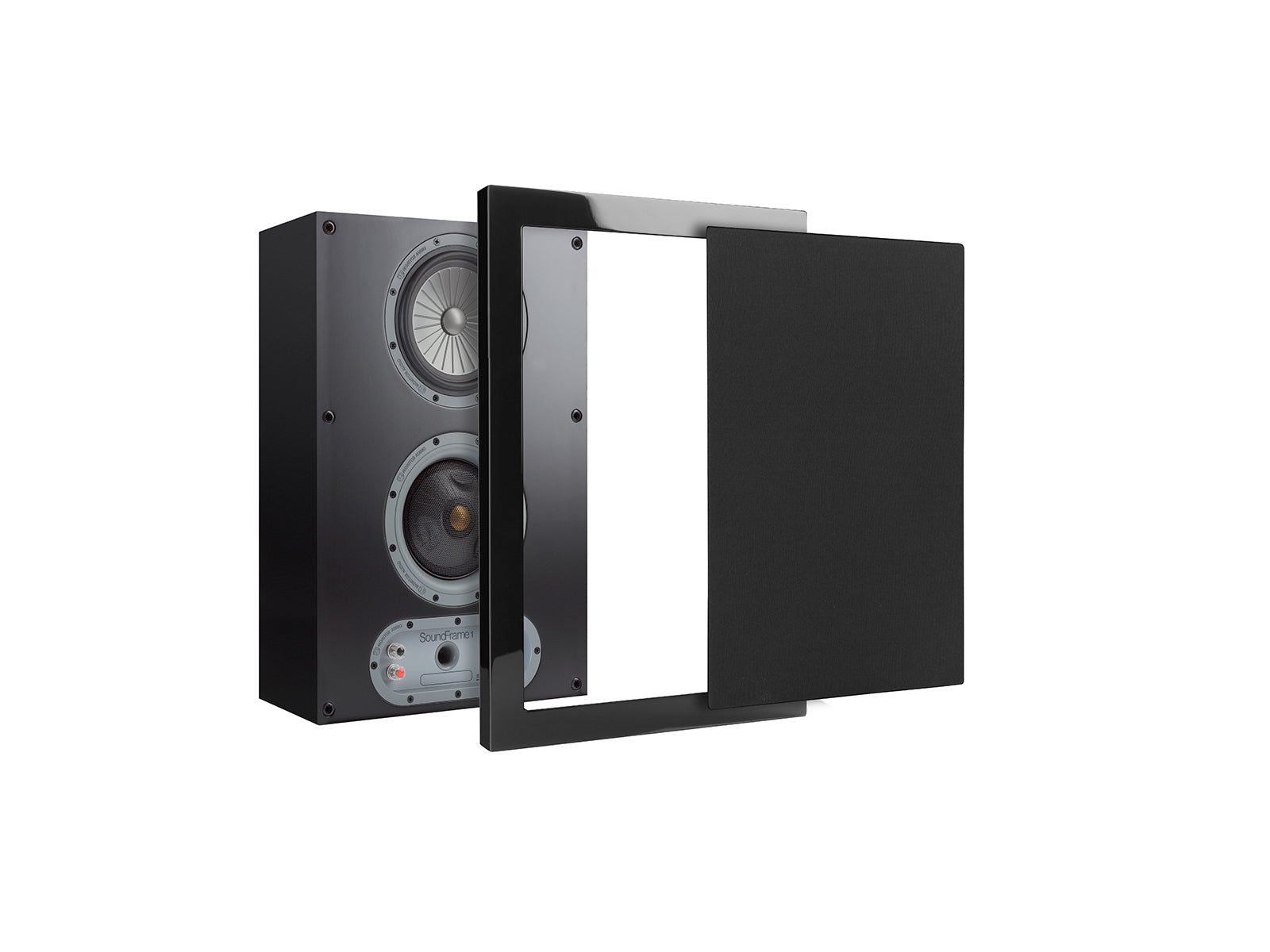

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grills option.

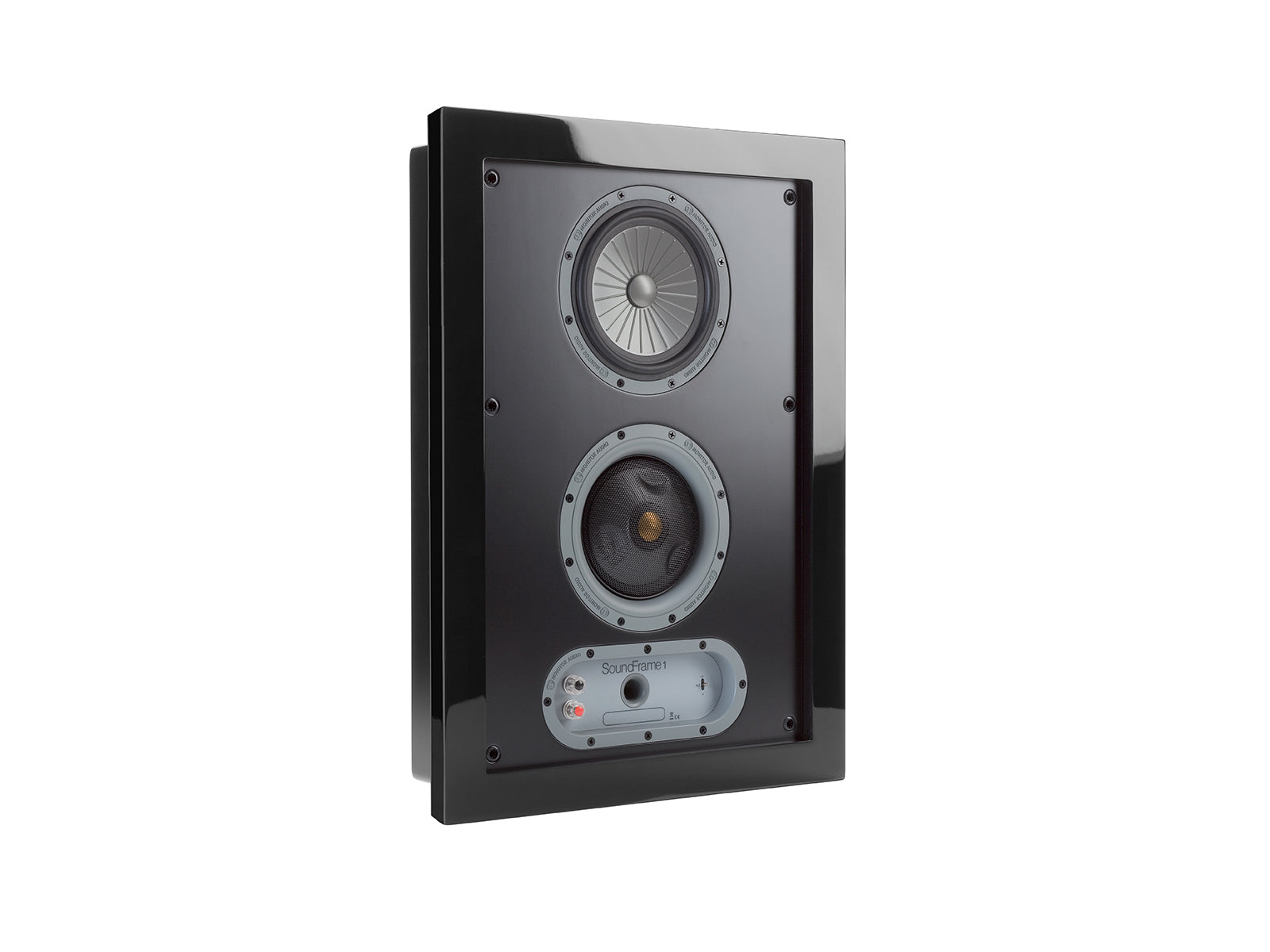

The SoundFrame 1 In-Wall utilizes a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
Technology
- Quick and easy installation.
- Slender 87 mm (3.5") cabinet depth.

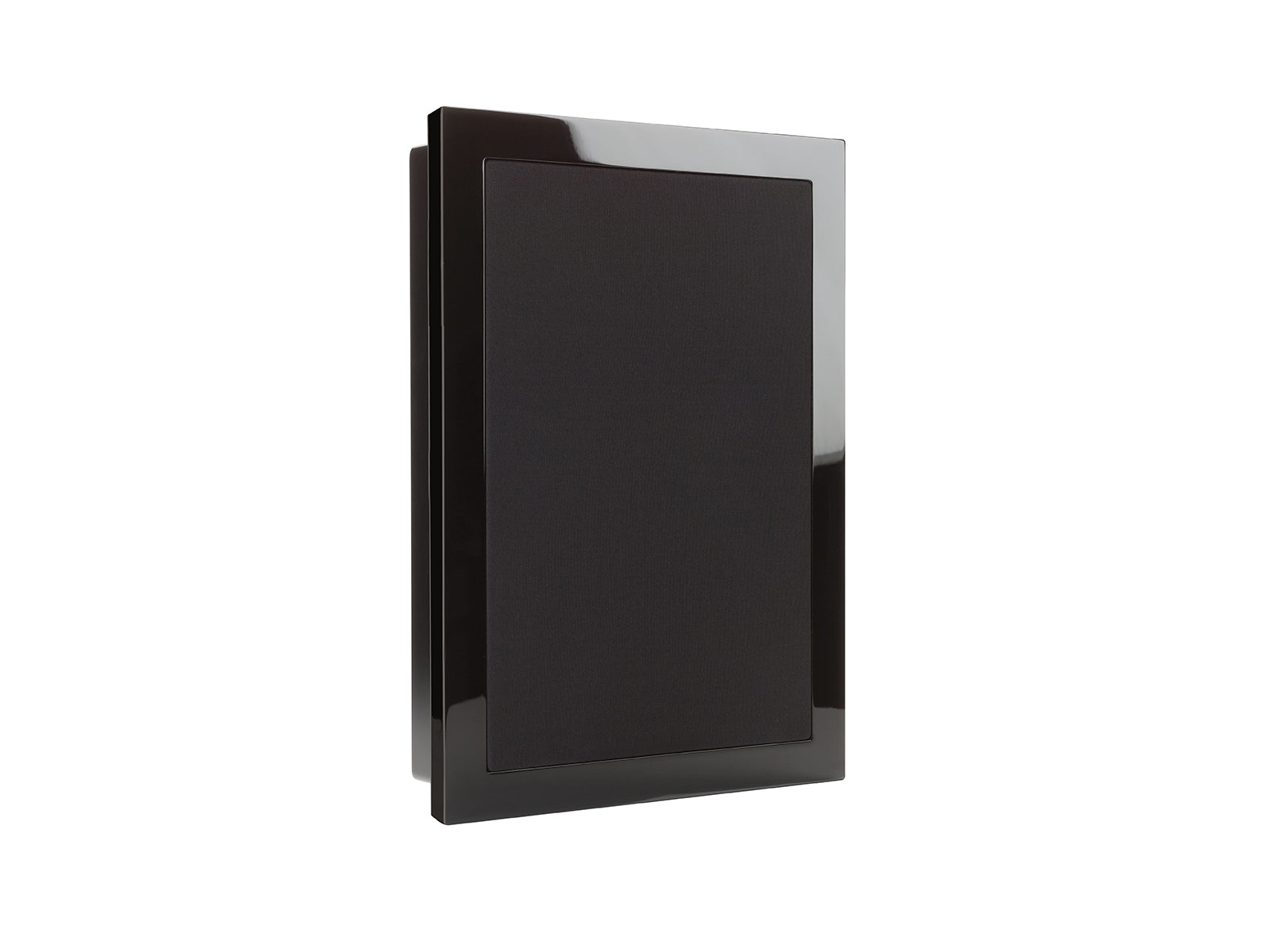

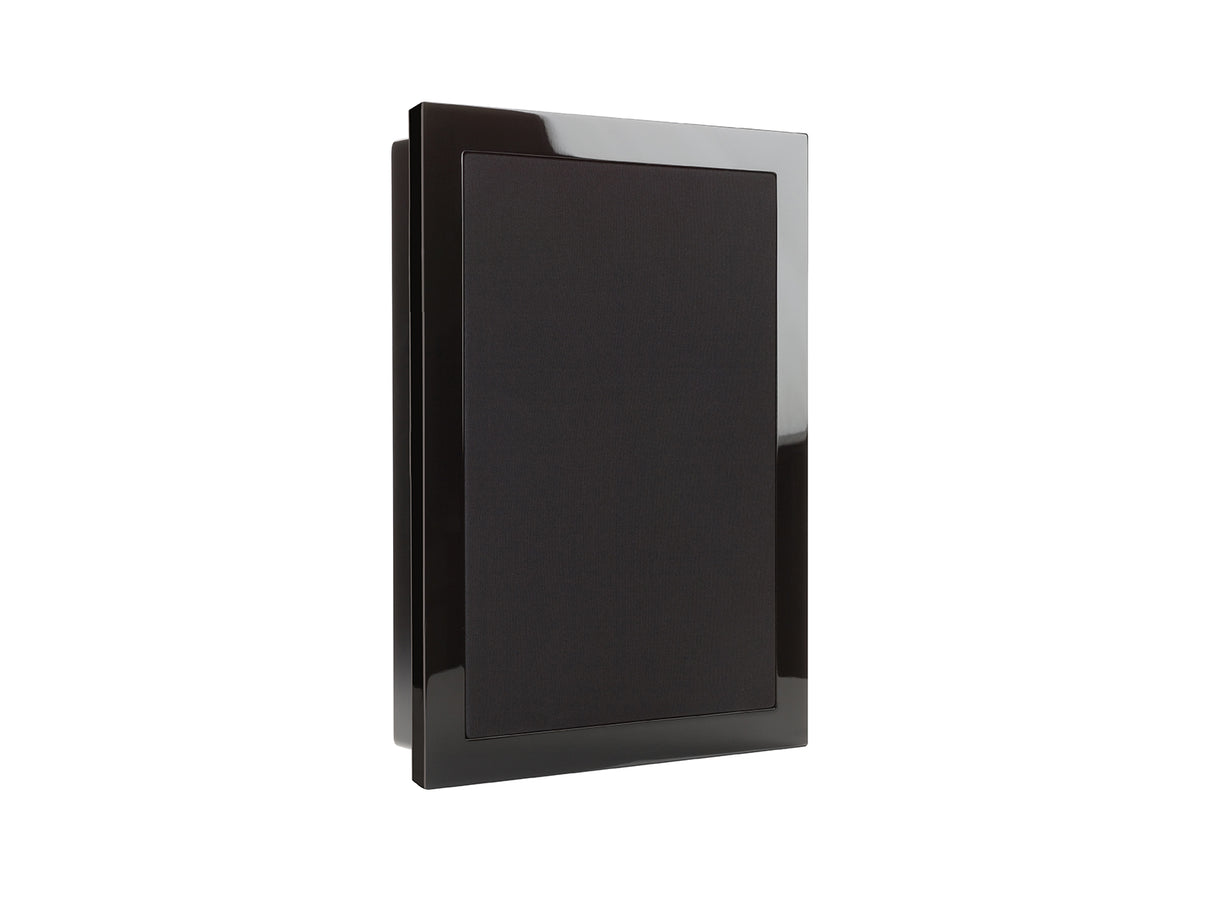

- Choice of high gloss white or black lacquer frames.
- SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RST cone for a super-fast life-like response.
- High frequency attenuation +- 3 dB.
- Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
Product Video
SPECIFICATIONS
Frequency Response
55 Hz — 35 kHz
Sensitivity (1W@1M)
86 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
100W
Maximum SPL
106 dBA
Recommended Amplifier Requirements
25 — 100 W
Bass Alignment
Sealed Box
Crossover Frequency
550 Hz & 3.3 kHz
System Configuration
3-Way
Drive Unit Complement
1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST
1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter
Dimensions (Including Frame (H x W x D))
552 x 402 x 87.5 mm (21 3/4 x 15 13/16 x 3 7/16 ")
Cut-Out Dimensions
501 x 351 x 75mm (19 11/16 x 13 3/4 x 2 15/16 ")
Weight (packaged)
7.53 kg (16.6 lbs)
Sold As
Single Unit
