Monitor Audio

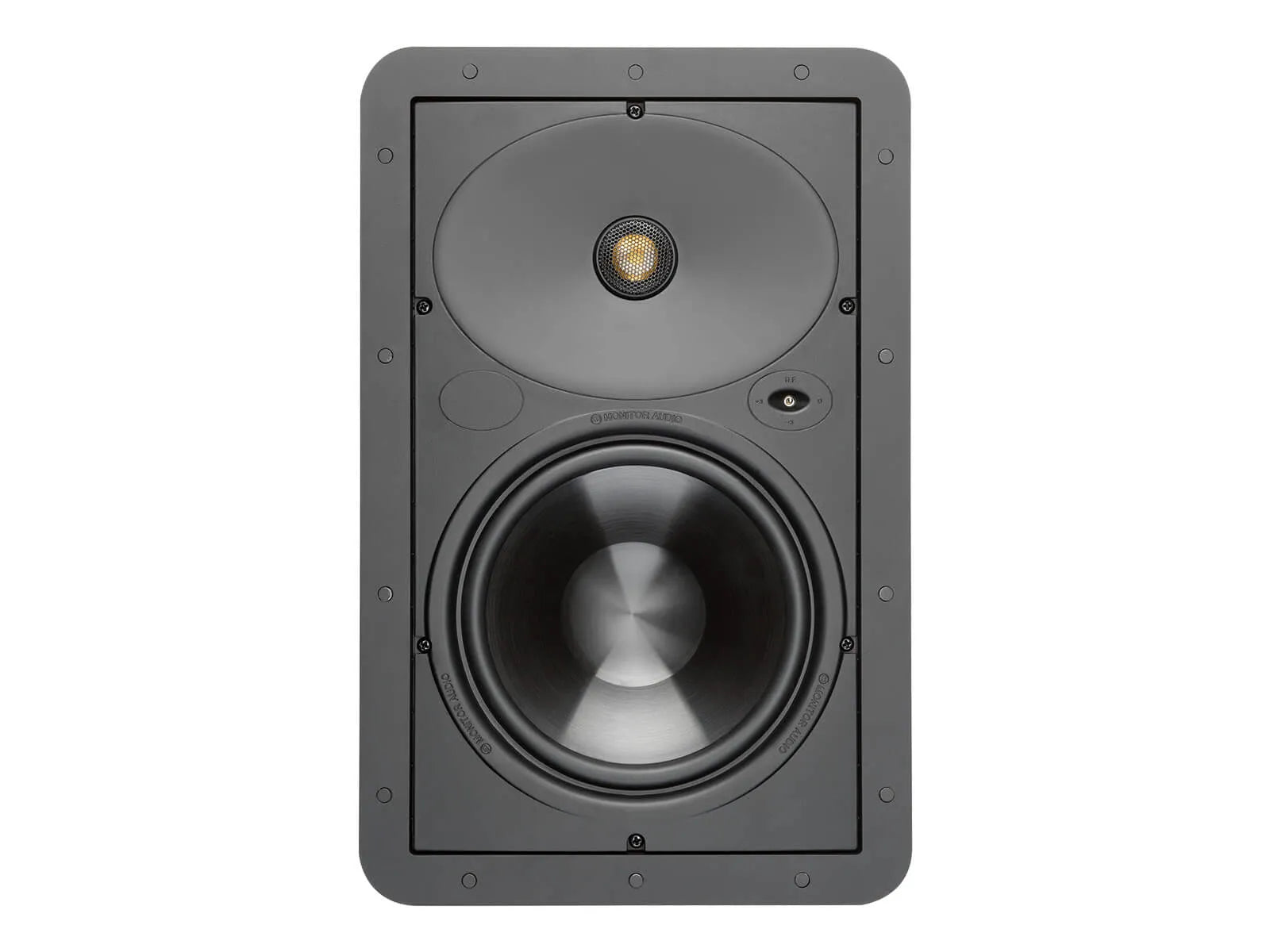

Monitor Audio W180, wall speaker

€275.00 EUR

Monitor Audio W180, wall speaker is backordered and will ship as soon as it is back in stock.

Neišsirenkate garso kolonėlių namams? Turime Jums sprendimą!
Kviečiame atvykti garso aparatūros perklausai.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Atsiimkite parduotuvėje 0 €

Display general product information or specific product information using metafields.

Wall mounted speaker from Monitor Audio. The speaker has excellent sound and easy installation/installation.

  • Power: 120 W.
  • Frequency range: 50 Hz - 25 kHz.
  • Sensitivity: 90 dB.
  • Resistance: 6 Ohms.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

SPECIFICATIONS

Frequency Response

50 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Drive Unit Complement

8" MMP II cone bass driver
1" C-CAM Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)

441 x 288 mm (17 3/8 x 11 5/16 ")

Overall Depth (Including Grille)

104mm (4 1/8 ")

Mounting Depth

100mm (3 15/16 ")

Cut-Out Hole Diameter

387 x 234mm (15 1/4 " x 9 3/16 ")

Fixing Type

6 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

3.08 kg (6 lb 12 oz)

Pre-Construction Bracket

WB8 Pre-Construction Bracket (Green)

Back Box

WCBOX-L

Sold As

Single Unit


INSTRUCTIONS

User Manual (EN).
