1 3
Monitor Audio

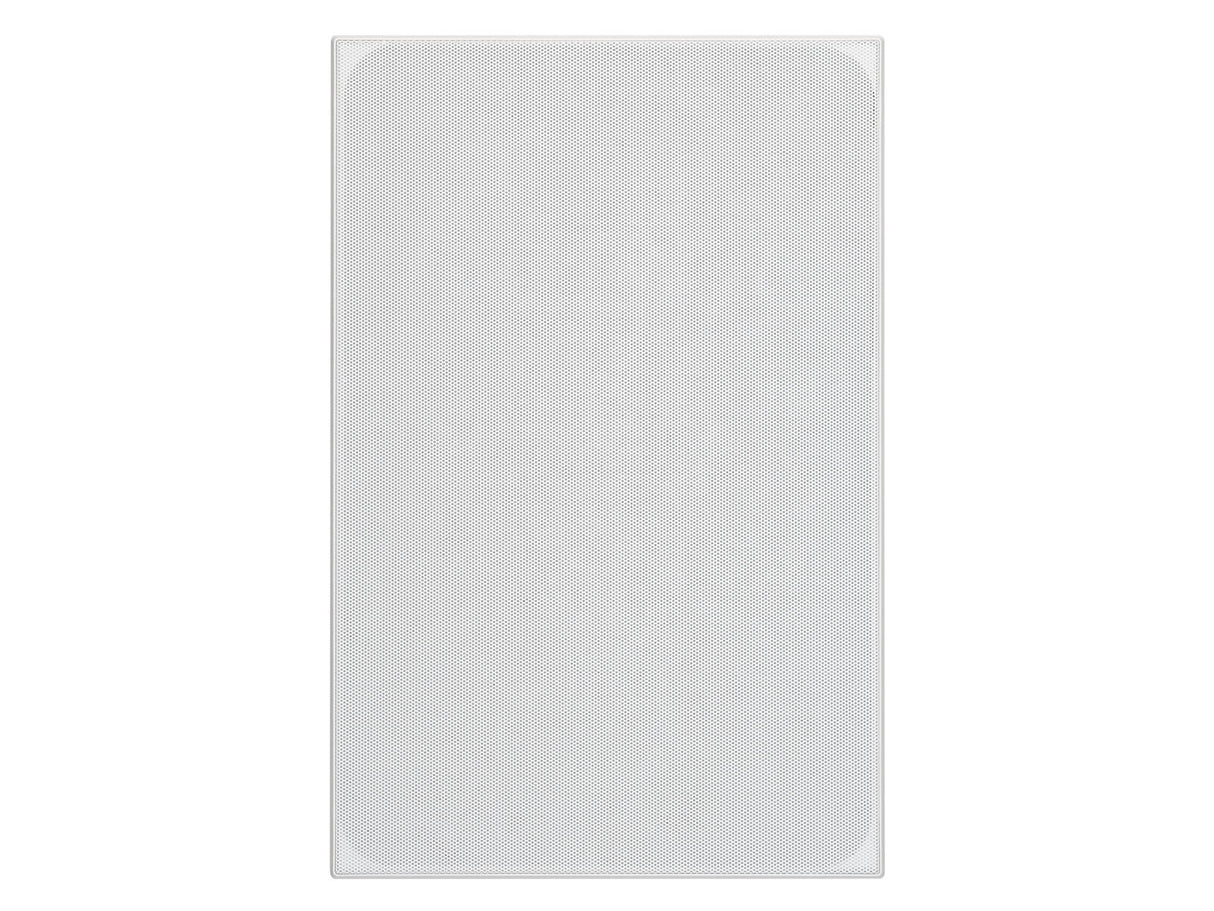

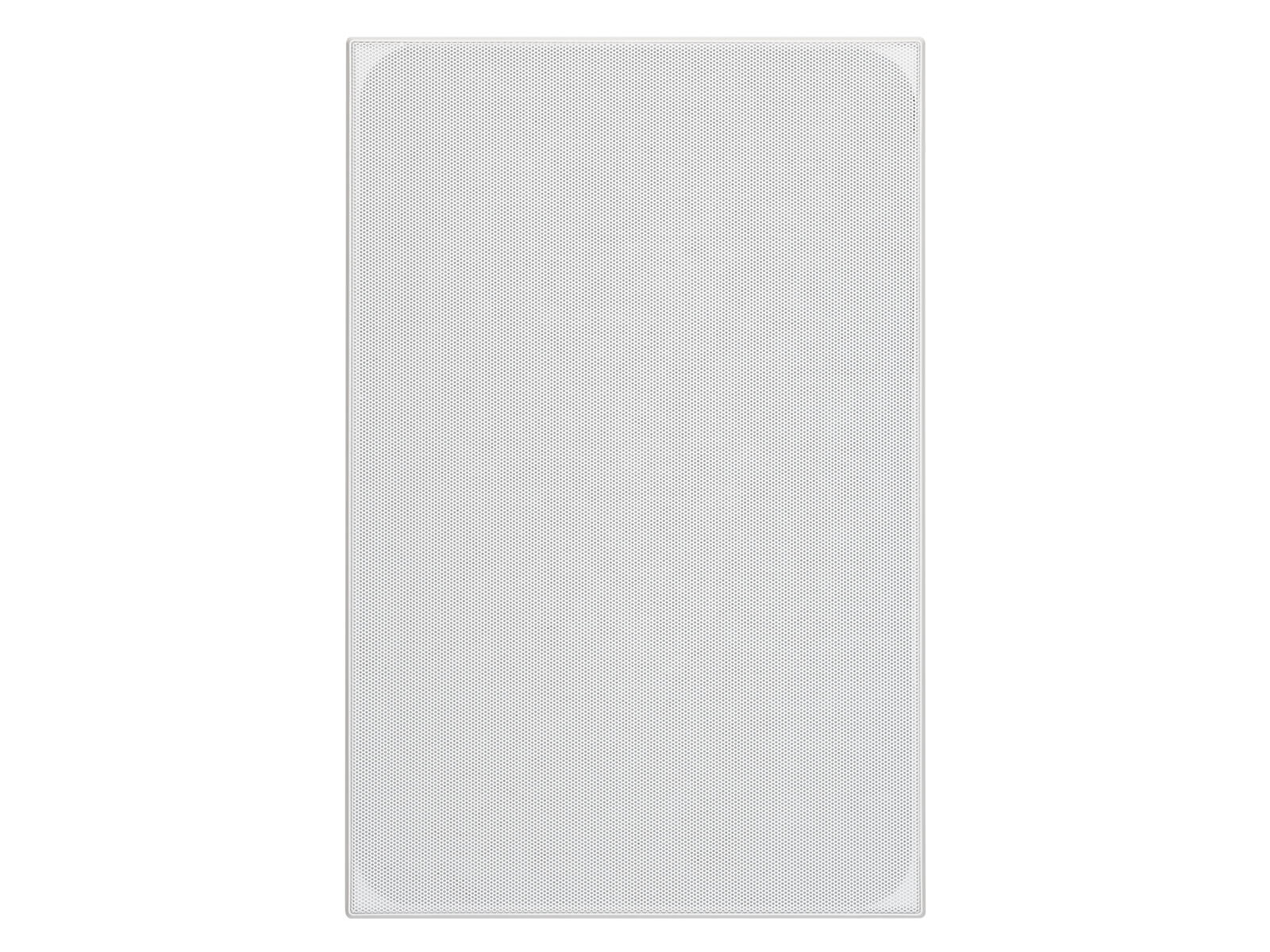

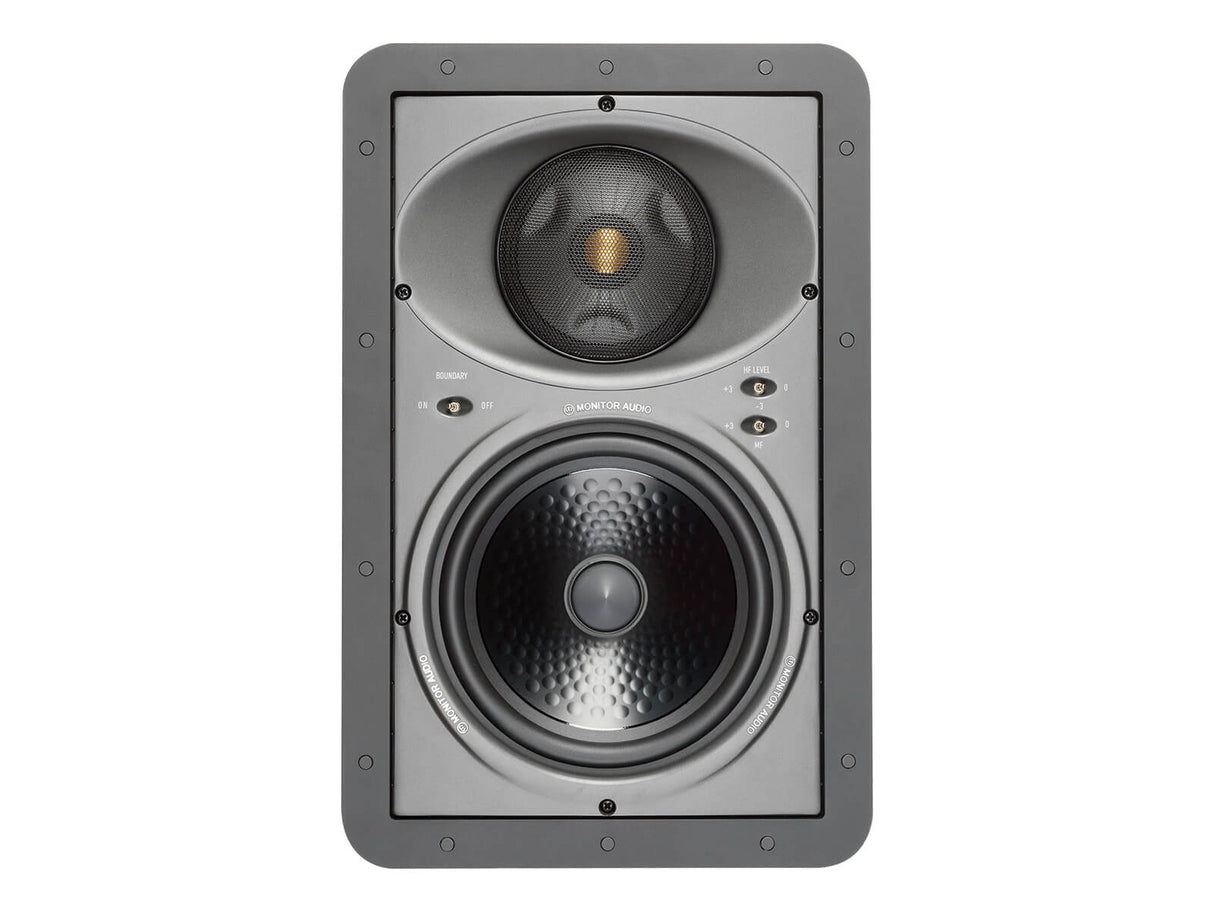

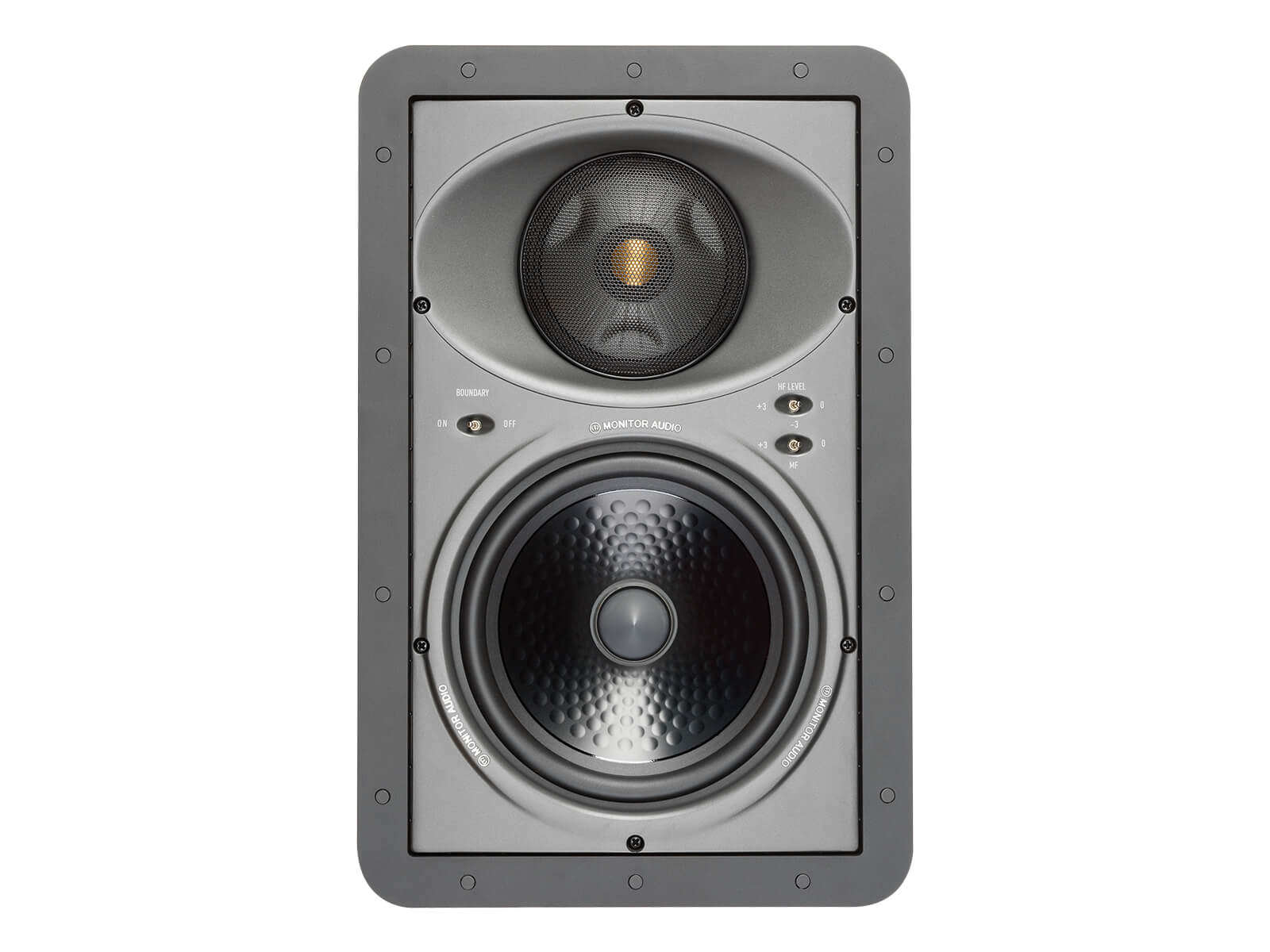

Monitor Audio W380-IDC, wall speaker

€585.00 EUR

Monitor Audio W380-IDC, wall speaker is backordered and will ship as soon as it is back in stock.

Neišsirenkate garso kolonėlių namams? Turime Jums sprendimą!
Kviečiame atvykti garso aparatūros perklausai.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Atsiimkite parduotuvėje 0 €

Display general product information or specific product information using metafields.

3-way in-wall speaker from Monitor Audio. The speaker has excellent sound and easy installation/installation.

  • Power: 150 W.
  • Frequency range: 45 Hz - 30 kHz.
  • Sensitivity: 90 dB.
  • Resistance: 6 Ohms.

True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localization.

Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

SPECIFICATIONS

Frequency Response

45 Hz - 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 - 150 W

Drive Unit Complement

8" C-CAM cone bass driver featuring RST, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver
1" C-CAM Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

441 x 288 mm (17 3/8 x 11 5/16 ")

Overall Depth (Including Grille)

104mm (4 1/8 ")

Mounting Depth

100mm (3 15/16 ")

Cut-Out Hole Diameter

387 x 234 mm (15 1/4 x 9 3/16 ")

Fixing Type

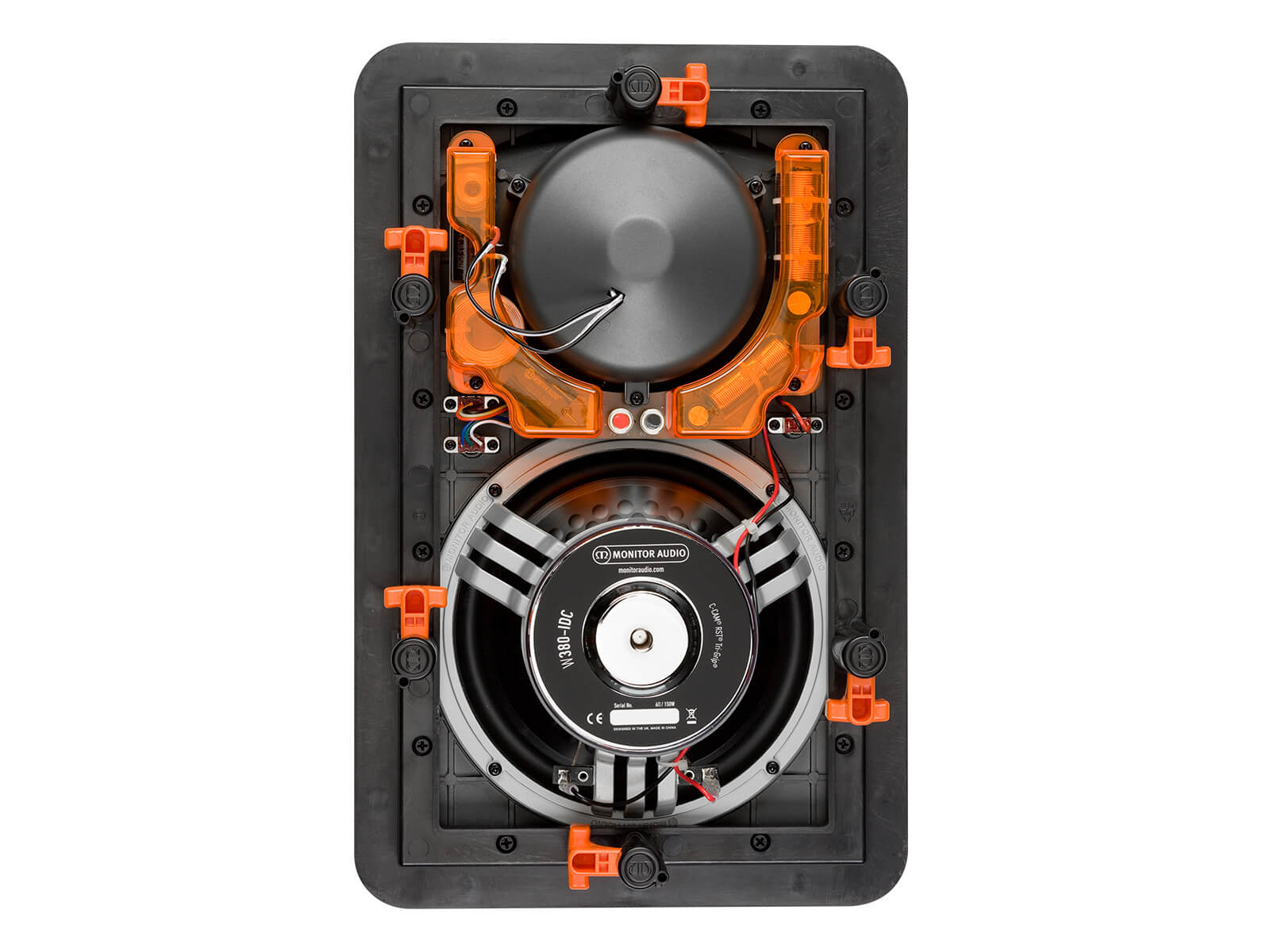

6 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

4.1 kg (9 lb)

Pre-Construction Bracket

WB8 Pre-Construction Bracket (Green)

Back Box

WCBOX-L

Sold As

Single Unit



INSTRUCTIONS

User Manual (EN).
