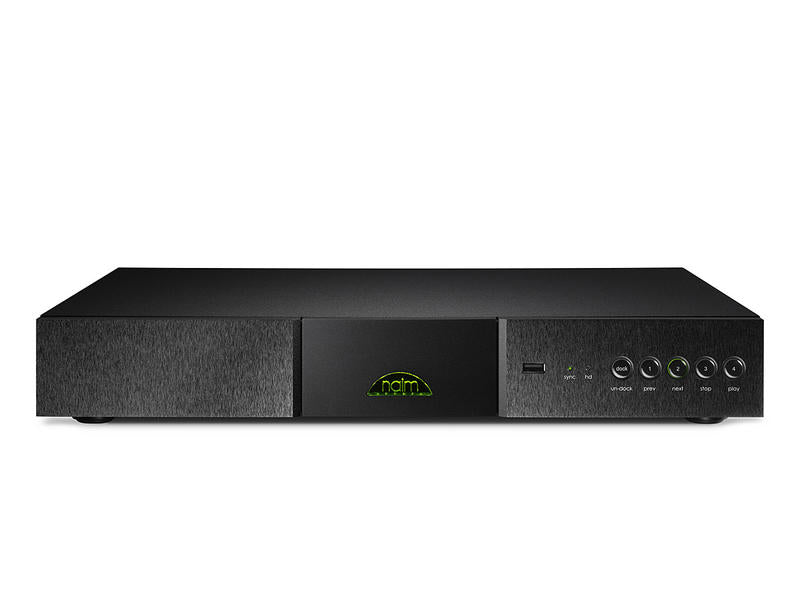

Naim

Naim DAC, DAC Converter

3,299.00 €

Naim DAC, DAC Converter is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Now you have the ability to connect and upgrade almost any of Naim Audio's systems, this DAC has more in common with our CD players than any other DAC converter.

  • Audio outputs: Analog DIN, RCA.
  • Output impedance: 20Ω
  • Line output: 2.2V RMS.
  • Load resistance: 10kΩ (min.).
  • Frequency band: 10Hz – 20kHz, +0.1/-0.5dB.
  • THD: <0.002%.

Capable of partnering and upgrading a wide range of Naim Audio products, the DAC has more in common with our CD players than with any conventional DAC. Its Burr-Brown converter chips, for instance, are also found in our flagship CD555 CD player. The DAC overcomes the jitter inherent in standard digital connections by reading data independent of its timing signal. Its digital filtering, based on a 40bit floating-point SHARC DSP chip running unique Naim Audio code, sets new standards in its class. Our DAC is now DSD compatible and able to play 64 (2.8MHz sample rate) and 128 (5.6MHz sample rate) files; the upgrade required significant optimization of the core DSP code which has also improved its sound quality.

If the DAC's music performance is extreme, its flexibility is just as remarkable. With eight S/PDIF and two USB inputs, it's adaptable to any system configuration and can grow to meet any need.

Features
  • Eight S/PDIF inputs for digital sources like game consoles, set top boxes and hard disk servers
  • Two USB inputs (one front, one rear)
  • 40bit SHARC DSP chip handling filtering and oversampling
  • Plays audio files at up to 24bit/768kHz resolution

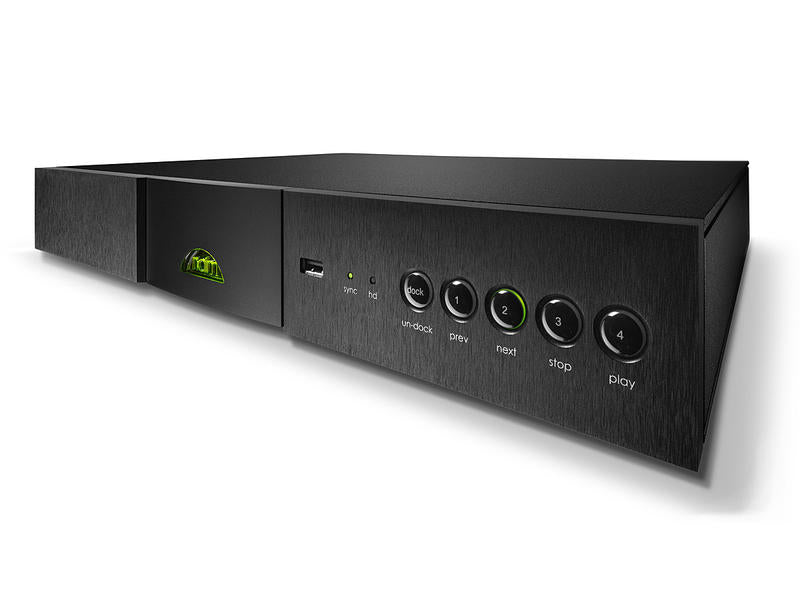

  • Front-panel input controls adapt to become playback controls when iOS or USB devices are connected

Use to upgrade the onboard DAC of the CD5 XS and CDX2 CD players and the HDX hard disk player/server

Technology & Craft

The Naim Audio DAC is the end result of several years of research. It introduced several original digital music technologies that have since gone on to help inform the development of an entire range of streaming products.

The DAC overcomes the jitter issues of S/PDIF by reading the music into a "rotating" data RAM buffer independently of its timing signal and reading it out again clocked by one of ten extremely low noise, fixed frequency crystal sine-wave oscillators. The data entering the downstream digital filtering and DAC chips is then completely isolated from the incoming S/PDIF jitter. The Naim Audio DAC also suppresses RF noise from S/PDIF through electrical isolation of its DSP front end from the digital to analogue converter and analogue circuits. Each element is also run from separate power supplies.

The Naim Audio DAC's digital filtering is handled by a powerful SHARC DSP chip running unique Naim Audio authored code to create an ultra-high precision 40-bit floating point filter. The filter over-samples by 16 times on 44.1kHz data and provides stop-band attenuation of 180dB on all data. Following the digital filter are the two mono Burr-Brown digital to analogue converter chips, as used in the CD555 CD player. Finally the Naim Audio DAC features a very high performance, low noise, and low distortion fully discrete analogue output stage.


SPECIFICATIONS

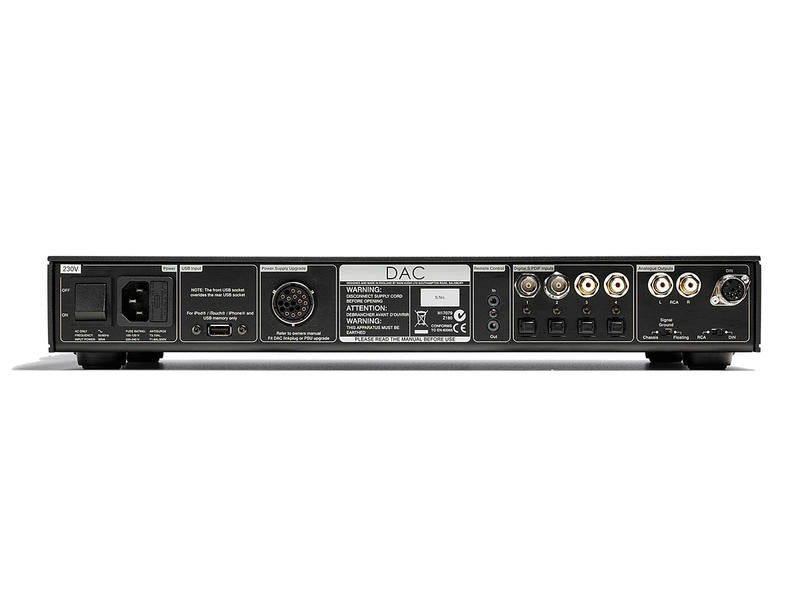

Audio Inputs
Digital

8 x S/PDIF:
- 2 x coaxial BNC
- 2 x coaxial phono
- 4 x optical TOSLINK

USB

Front and rear panel - the front overrides the rear. Type-A

Audio Outputs
Line Output

2.2V RMS

Load Impedance

10kΩ (min)

Output Impedance

20Ω

Analog

DIN, RCA

THD

<0.002%

Frequency Response

10Hz - 20kHz, +0.1/-0.5dB

Connectivity
Remote Output

1 x rear panel 3.5mm jack (RC5)

Remote Input

1 x 3.5mm jack on rear (RC5)

Physical
Weight

5.6 kg

Dimensions (HxWxD)

70 x 432 x 301 mm

Power
Power Consumption

<30VA (max. incl. iPod charging)

Supply Voltage

100V, 115V, 230V; 50 or 60 Hz

Sample Rates Supported
iPod, iPhone

48kHz (max.)

USB

Added support for DSD 64 and DSD128, 32kHz - 768kHz , 32-bit

S/PDIF

Added support for DSD64, 32kHz -192kHz, 32-bit

Supplied with
Supplied with

Standard Interconnect, Power-Line Lite mains cable (UK denominations only)

User Control
IR Output

Real panel socket

IR Input

Front and rear panel

Front Panel

Front panel buttons

Remote Control

Infrared (RC5)

INSTRUCTIONS

User Manual (EN).
