Naim

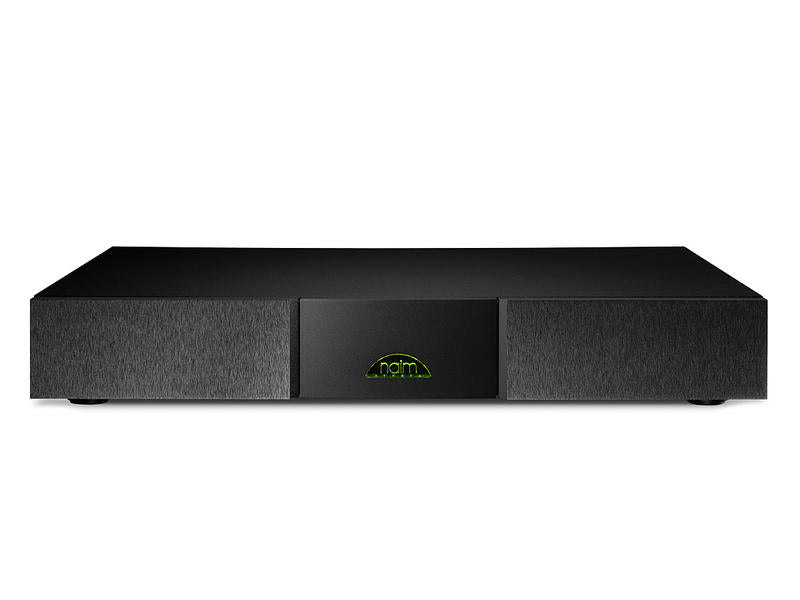

Naim Flatcap XS, Power Supply

1,199.00 €

Naim Flatcap XS, Power Supply is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Designed to complement our XS series. FlatCap XS double connector gives you the opportunity to power not one but even 2 Naim Audio components.

  • Power output: 4 x 24V.

  • Power source: 115V, 230V; 50 or 60Hz.

Designed to complement our XS range, the FlatCap XS is a dual-rail, dual-output power supply that powers not just one, but two Naim Audio components if required. For example, an XS Series owner could add a FlatCap XS to enhance the performance of both a CD5 XS and a NAC 152 XS, and so enjoy all the improvements to clarity, dynamics and timing you'd expect from any Naim Audio power supply upgrade . It's a logical, high-value and highly effective upgrade path – just as you'd expect from Naim Audio.

Features
  • Dual-rail power supply with four 24V power outputs
  • Four low-noise regulators
  • Black-anodised chassis with brushed front panel plus anti-vibration feet

      Use to upgrade the onboard DAC of the CD5 XS and CDX2 CD players and the HDX hard disk player/server

      Technology & Craft

      The FlatCap XS transformer has two separate secondary windings to isolate each of the dual supplies from the other. It includes four Naim Audio-tested and selected low-noise regulators to achieve its exceptional performance.

      SPECIFICATIONS

      Finish
      Case

      Black powder coated

      Front

      Brushed and black anodised

      Outputs
      Power Outputs

      4 x 24V

      Physical
      Shipping Weight

      7.6 kg

      Shipping Dimensions

      200 x 590 x 500 mm

      Weight

      5.5 kg

      Dimensions (HxWxD)

      70 x 432 x 301 mm

      Power
      Mains Supply

      100V, 115V, 230V; 50 or 60 Hz

      Supplied with
      Supplied with

      SNAIC

      Upgrades
      Other

      Power-Line Lite mains cable (UK denominations only)

      INSTRUCTIONS

      User Manual (EN).
