Naim

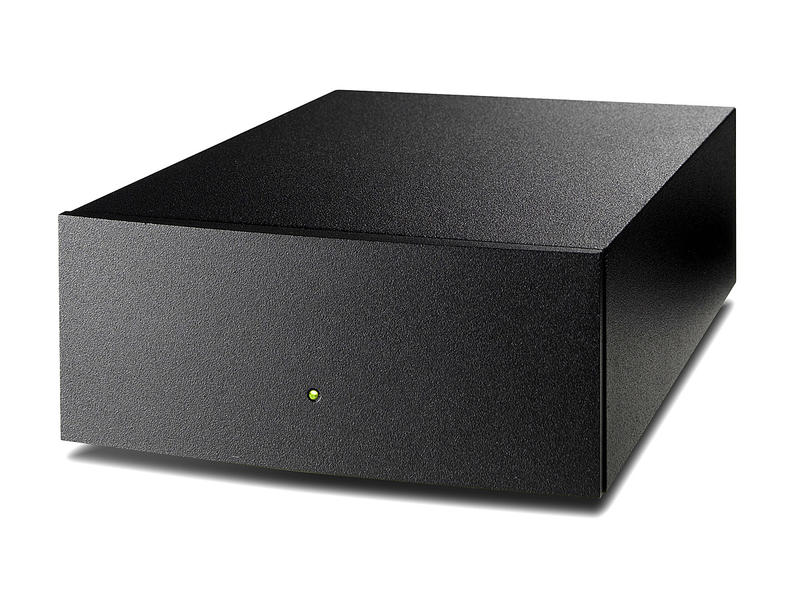

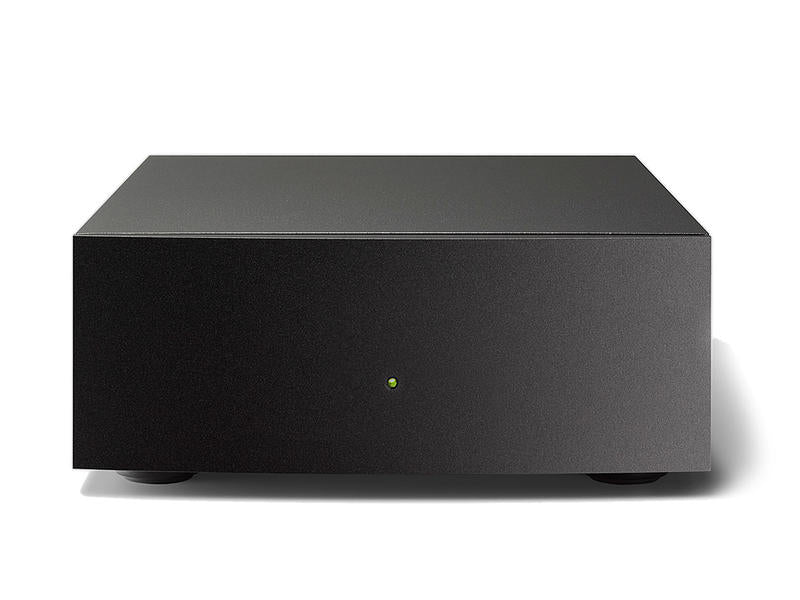

Naim StageLine MC, Phono correction amplifier

549.00 €

Naim StageLine MC, Phono correction amplifier is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

As the makers of Naim say, "We may not be able to build a turntable, but we've decided you'll get the most out of your black magic plates. Our StageLine phono equalizer is available in both MM and MC versions, which can be powered solely by our NAIT XS 2 amplifier or via a dedicated power supply, such as: FlatCap XS. But you can connect it and configure it further, and you can be assured of musicality and sound quality."

  • Suitable for MC or MM type cartridges.
  • Input load: S= 470Ω//6.8nF, K= 560Ω//1nF, E= 560Ω//6.8nF, N= 47kΩ//470pF.
  • Compatible power supplies: NaimUniti, NAIT XS, SuperNait, 152XS, 202, 282, 252, 552, FlatCap XS, HiCap, SuperCap.

We have decades of experience making the most of the black magic offered by the vinyl LP. Our StageLine phonostage, available in either moving coil or moving magnet versions, can be powered just from our NAIT XS 2 amplifier or via its own dedicated power supply, such as a FlatCap XS. However you connect and configure it, you can be assured of the consummate musicality so fundamental to every Naim Audio product.

Features
  • RCA inputs
  • Moving coil or moving magnet versions available
  • 24V supply voltage from NaimUniti 2, NAIT XS2, SUPERNAIT 2, Hi-Cap-DR, Nait XS-3 & Supernait 3, a Naim Audio preamplifier (except NAC-N172 XS & NAC-N 272), FlatCap XS, HiCap or SuperCap required.

SPECIFICATIONS

Audio Inputs
Analog Input

RCA

Input Sensitivity

K & S 100μV, E 400μV, N 2mV

Audio Outputs
Good

N 35dB at 1kHz, K & S 60dB at 1kHz

Finish
Case

Black powder coated

Front

Black powder coated

Phono Specific
Input Load Options

S= 470Ω//6.8nF, K= 560Ω//1nF, E= 560Ω//6.8nF, N= 47kΩ//470pF

Physical
Shipping Weight

1.2 kg

Shipping Dimensions

100 x 170 x 265 mm

Dimensions (HxWxD)

57 x 121 x 187 mm

Power
Power Supply Options

NaimUniti, NAIT XS, SuperNait, 152XS, 202, 282, 252, 552, FlatCap XS, HiCap, SuperCap

Supply Voltage

24V

Supplied with
Supplied with

Standard Interconnect


INSTRUCTIONS

User Manual (EN).
