Naim

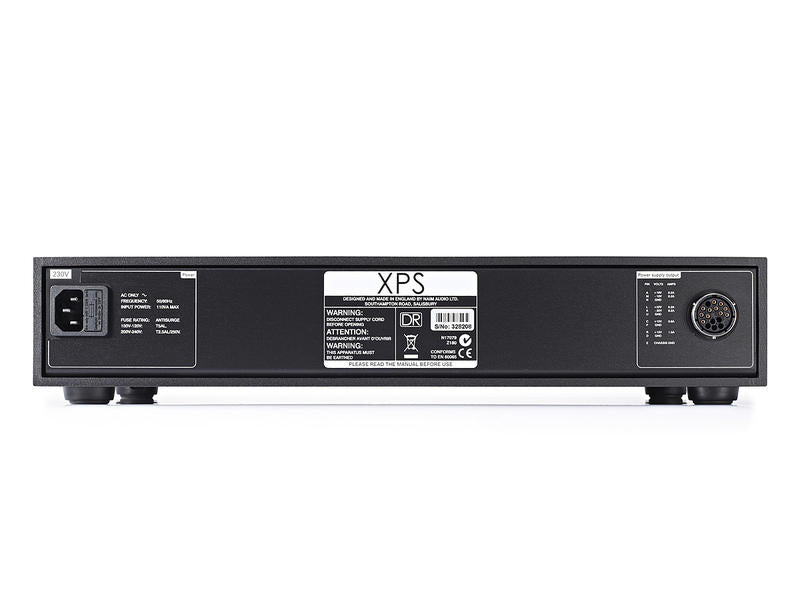

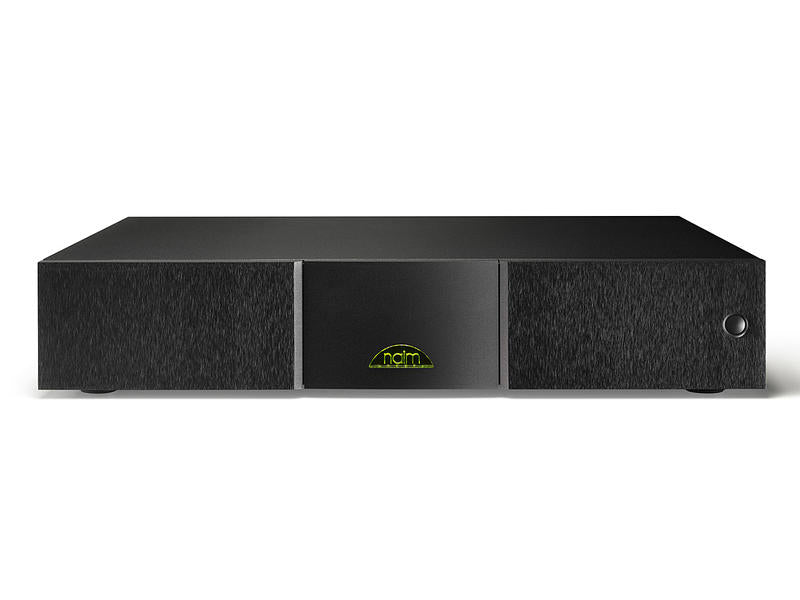

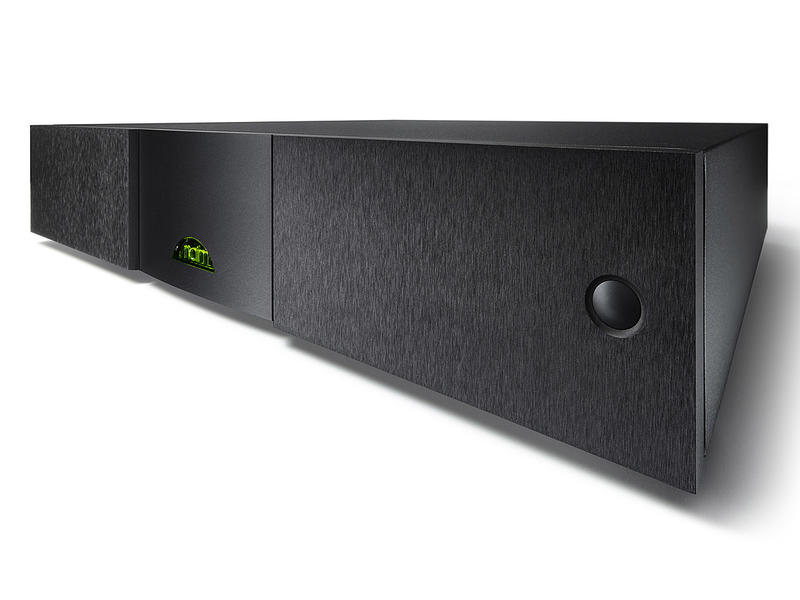

Naim XPS DR, Power Supply

4,999.00 €

Naim XPS DR, Power Supply is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

XPS is a simple and effective upgrade to strengthen the music playback capabilities of your Naim system. As one of our most versatile components, it can be used to upgrade our CDX2 CD player and DAC digital/analog converter and can also be used for our NDS, NDX and ND5 XS network players and HDX hard disk player/server.

  • Power output: ±22V, ±10V, 2x 15V
  • Power source: 100V, 115V, 230V; 50 or 60Hz.

The XPS is a simple and effective upgrade to enhance the music-making ability of your Naim Audio source component. As one of our most flexible performers it can be used to upgrade our CDX2 CD player and DAC digital to analogue converter, and it is also suitable for use with our NDS, NDX and ND5 XS network players and HDX hard-disk player/server. Its large toroidal transformer features four separate windings, coupled to six low-noise regulators and benefits from Naim Audio DR voltage regulator technology

Features
  • Four isolated transformer windings with six low-noise DR power regulators - configured as two isolated regulators for digital at +15V, isolated +/-10V for DACs and isolated +/-23V for analogue stages
  • All-new Discrete Regulator (DR) configuration, delivering Naim Audio's best-ever standards of stable, low-noise power
  • Brushed, black-anodised aluminum chassis plus anti-vibration feet

        Use to upgrade the onboard DAC of the CD5 XS and CDX2 CD players and the HDX hard disk player/server

        Technology & Craft

        The Naim Audio XPS is a highly sophisticated power supply with six separately regulated, very low noise outputs, featuring a toroidal transformer and six power regulators. These supplies are branched and re-regulated, sometimes twice in the CD player.

        The addition of anti-vibration, resonance-controlling feet complement the elegant cast and extruded anti-magnetic chassis protect the sensitive internal components from resonance and microphonic vibration.

        The XPS was updated in 2012 as a result of a two-year project to develop a new discrete regulator (DR) for Naim Audio power supplies. The new Naim Audio DR now features, alongside improvements to the mechanical decoupling and internal layout. These enhancements, developed through intensive listening tests, significantly raise performance and make music even more communicative and enjoyable.

        A technical white paper on the Naim Audio Discrete Regulator technology is available here.

        Please note: only new classic series XPS units are compatible with the NDX network player, not 'Olive' versions. The old 'Olive' XPS is still compatible with CDX and CDS model CD players, the HDX hard disk player and the DAC digital to analogue converter however. Please consult your Naim Audio retailer if you are unsure of compatibility.

                 e.

        SPECIFICATIONS

        Finish
        Case

        Black powder coated

        Front

        Brushed and black anodised

        Outputs
        Power Outputs

        ± 22V, ± 10V, 2 x 15V

        Physical
        Shipping Weight

        15.1 kg

        Shipping Dimensions

        240 x 590 x 500mm

        Weight

        12.4 kg

        Dimensions (HxWxD)

        87 x 432 x 314mm

        Power
        Mains Supply

        100V, 115V, 230V; 50 or 60 Hz

        Supplied with
        Supplied with

        Burndy

        Upgrades
        Other

        Power-Line Lite mains cable (UK denominations only)

        INSTRUCTIONS

        User Manual (EN).
