NAVLINKZ | Barcode: 20030026

NAVLINKZ CAM-E-309F, Front video camera for the car

Name: NAVLINKZ CAM-E-309F, Front video camera for the car
Brand: NAVLINKZ
SKU: CAM-E-309F
Price: 179.00 EUR
Availability: InStock

€179.00 EUR

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA

INFORMACIJA

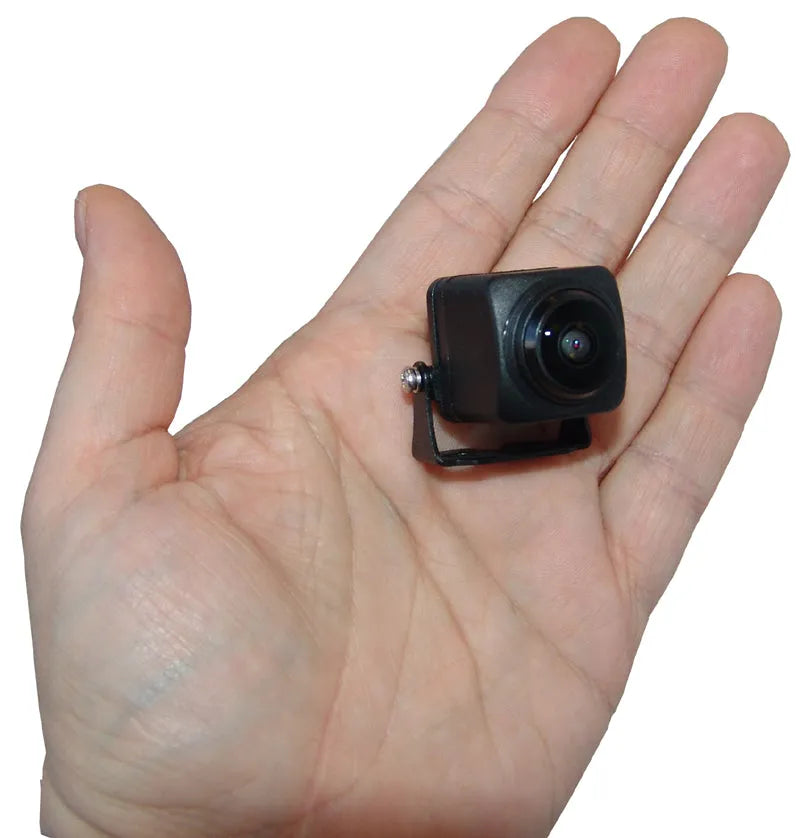

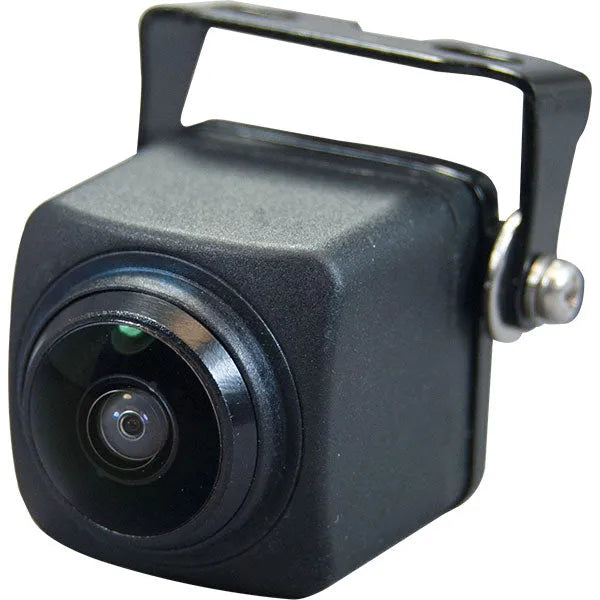

Mini front or rear camera, viewing angle 205 °.

Viewing angle 205 °.
Sensor 1/4 " CMOS.
Image format: NTSC colour.
Resolution: 720x480 px.
Resistance standard: IP69K.

DESCRIPTION

Properties

Mini mount-under front camera
Sensor type 1/4 inch CMOS
Picture format NTSC color
Resolution 720 x 480 pixels
Min illumination 0.5 Lux
Angle horizontal 185°, vertical 80°, diagonal 205°
Unmirrored picture (fixed)
System cable with throughput, eg for reverse signal
Protection class IP69K
Suitable for permanent operation
Holder and camera color black

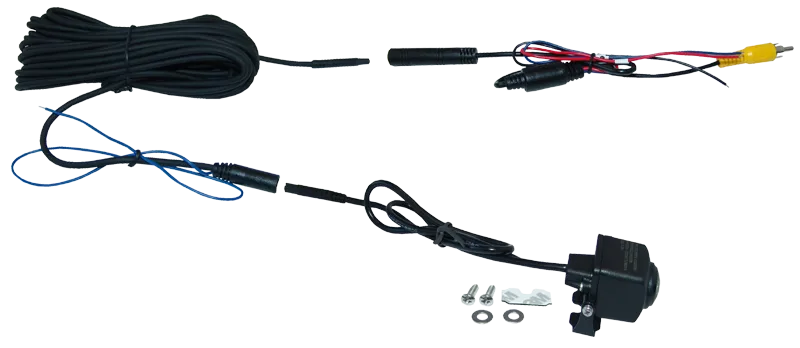

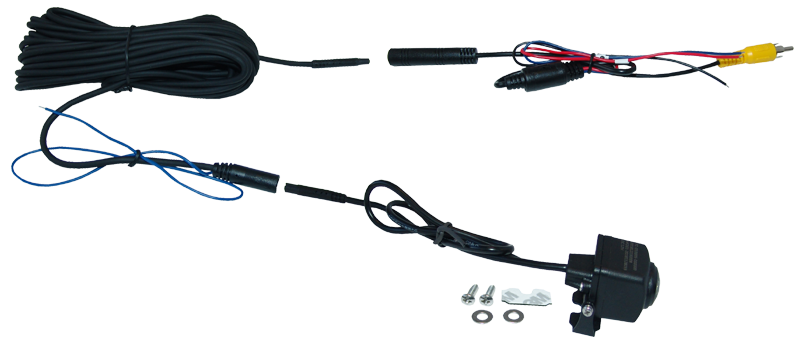

Total cable length about 8.80 m
Video-connector RCA male connector
System connector camera 4pin BM
Diameter camera connector 5mm

TECHNICAL DATA

SPECIFICATIONS

Operating voltage	+12V DC (9~16V)
Current consumption	100mA
Weight incl. cable about	218 g
Operating temperature range	-40°C to +85°C
Dimensions camera only	40 x 23 x 23mm (W x H x H)
Dimensions camera with holder	40 x 33 x 30mm (W x H x H)

SPECIFICATIONS

Operating voltage

+12V DC (9~16V)

Current consumption

100mA

Weight incl. cable about

218 g

Operating temperature range

-40°C to +85°C

Dimensions camera only

40 x 23 x 23mm (W x H x H)

Dimensions camera with holder

40 x 33 x 30mm (W x H x H)
