NAVLINKZ CAM-E-B180, Front camera for car

Mini front camera (can also be used as a rear camera) with adjustable viewing angle.

• Sensor CMOS 1/4 inch HD low-light.
• Resistance standard: IP69K.

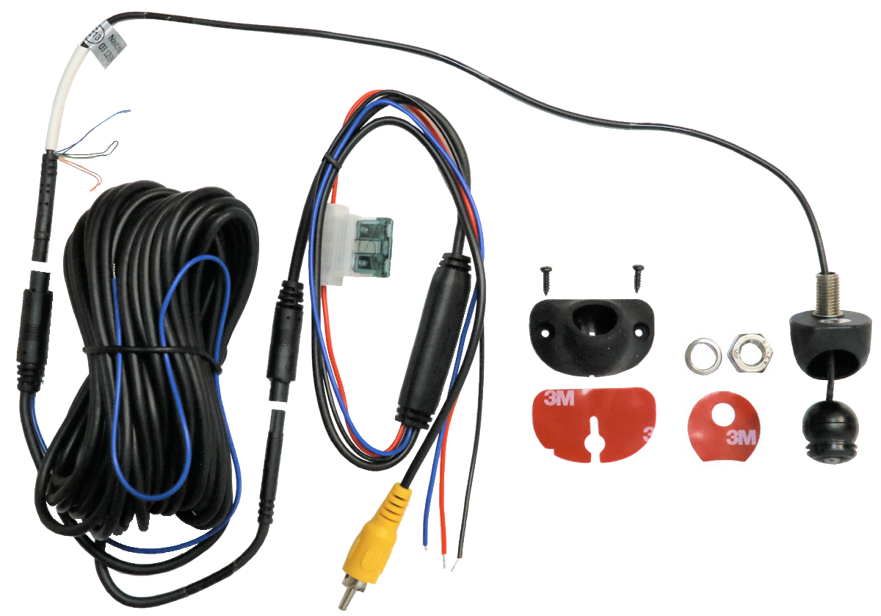

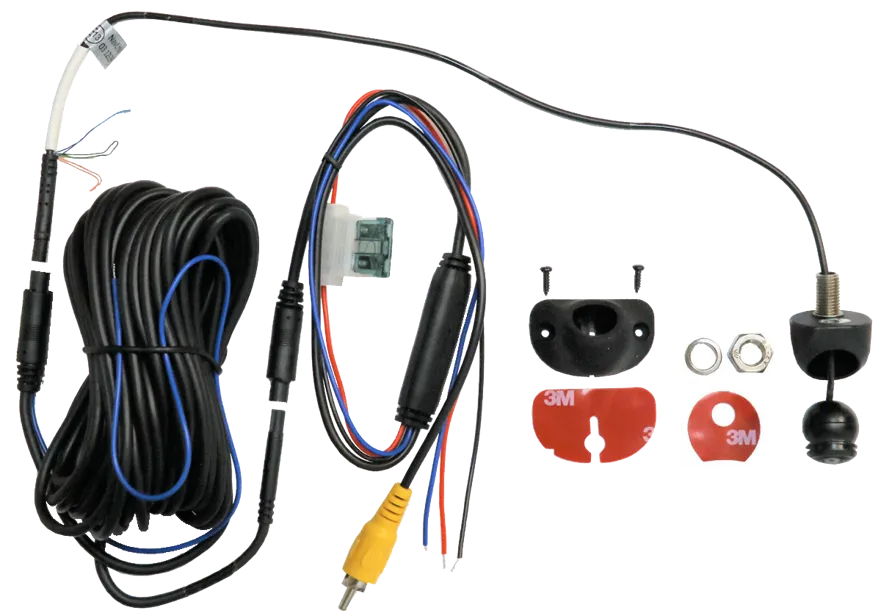

• All necessary elements for installation are included in the set.
• RCA connector.

Mini NTSC front and rear-view camera with adjustable ball head with 2 housings. Simple installation through threaded tube with cable guide and counternut (housing 1) or screw or adhesive housing (housing 2). Horizontal mount-under and vertical mount-on possible by rotating the ball. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

Properties

• Mini ball camera NTSC (black) with 2 housings
• Housing 1: Cable-guided thread tube with counternut
• Housing 2: Screw or glue fixing
• Optional housing 3: Rubber ring for in-mount (Article No. HD-B168-02 must be ordered separately)
• Horizontal mount-under and vertical mount-on possible (by rotating the ball)
• System cable with throughput wire, eg for reverse signal
• Mirroring can be switched off - suitable also as front camera
• Sensor type CMOS 1/4 inch HD low-light sensitive
• Bezel F1.2
• Minimum illumination 0.01Lux, 800 TV lines
• Angle horizontal=180°, vertical=125°, diagonal=210°
• Guide-lines can be switched off
• Guide-lines‘ width selectable between car or truck
• Protection class IP 69K
• Suitable for permanent operation (connection to ACC)
• Video connection: RCA male connector
• System cable of camera: 4pin 3V

SPECIFICATIONS

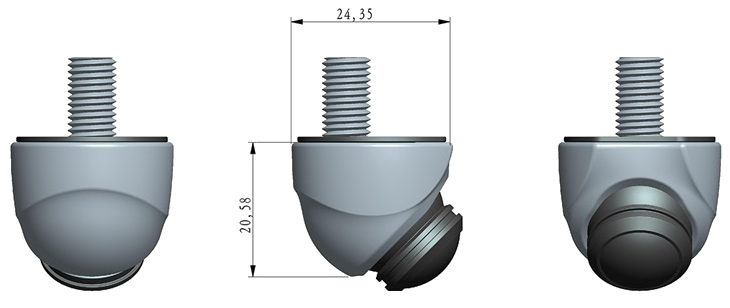

Dimensions

Specifications
