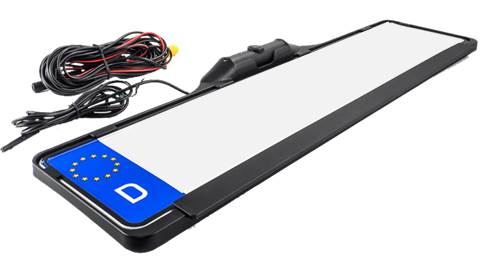

NAVLINKZ CAM-E-N505, Front camera built into license plate frame

€119.00 EUR

NAVLINKZ CAM-E-N505, Front camera built into license plate frame - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

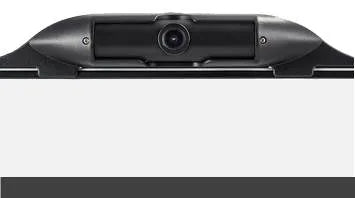

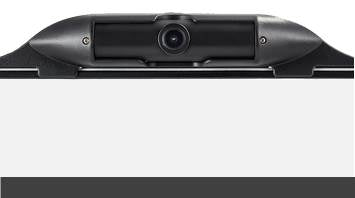

Mini front camera with bracket and 180° viewing angle.

  • Sensor 1/4 inch CMOS low-light sensitive sensor MT9V136.
  • Resolution: 720 x 480 PX.
  • Image format: NTSC colour.
  • Resistance standard: IP69K.
  • RCA connector.

Mini butterfly camera NTSC 1/4 inch CMOS low-light sensitive sensor with wide angle 180° diagonal. Can be used as rear-view or front camera, because mirroring is switchable. No guide lines. IP69K.

Properties

  • Mini butterfly camera
  • Usable as rear-view and front camera - mirroring is switchable
  • Sensor type 1/4 inch CMOS low-light sensitive sensor MT9V136
  • Picture format NTSC color
  • Resolution 720x480 Pixel
  • Bezel F1.2
  • Minimum illumination 0.5 Lux
  • 480 TV lines
  • Angle horizontal 140°, vertical 95°, diagonal 180°
  • Protection class IP69K
  • Camera and holder color black
  • Total cable length 10.90 m
  • Video-connector RCA male connector
  • System connector camera 2.5mm jack, 4 contacts
  • Diameter camera connector 4.5mm

SPECIFICATIONS

Operating voltage +12V DC (6V ~ 28V)
Current consumption 32mA
Power consumption 0.4W
Weight incl. cable about 225 g
Operating temperature range -30°C to +75°C
Dimensions camera without holder
 Diameter 19.2mm, Length 19.8mm
