NEBEGAMINAMA

Navlinkz CPM070, car multimedia

€299.00 EUR

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

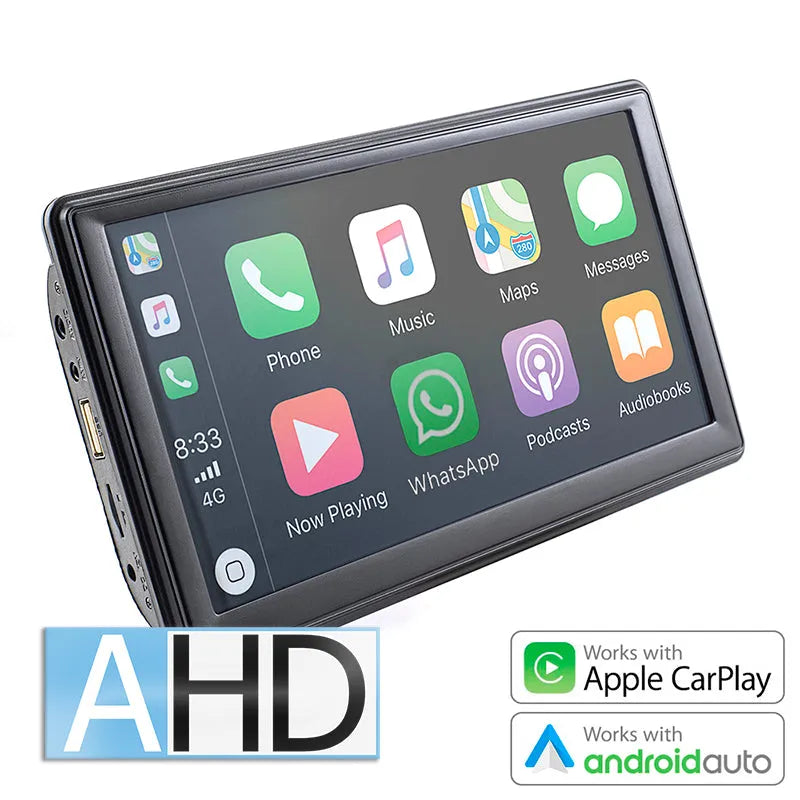

CPM-070, it is a 7" inch multimedia with integrated rear camera support.

  • Resolution: 1024 x 600.
  • Apple CarPlay and Android Auto support.
  • Wi-Fi or USB support.

Smartphone touch monitor 7 inch with integrated smartphone interface and rear-view camera input. For retrofitting Apple CarPlay and Android Auto - wirelessly via WiFi or wired via USB. incl. FM transmitter, integrated loudspeaker, suction cup holder and power cable for on-board power plug.

High-resolution smartphone touch monitor 7 inch with integrated smartphone interface and rear-view camera input. For retrofitting Apple CarPlay and Android Auto - wirelessly via WiFi or USB. Mirroring of the smartphone via Airplay and AutoLink is also possible. Control is possible via voice input using Siri or OK Google, or via touchscreen. The monitor has an integrated loudspeaker, an audio output with 3.5 mm jack and an FM transmitter. Includes monitor holder with suction cup attachment and power cable for vehicle electrical system plug.


SPECIFICATIONS

Product features display

  • 17.8cm (7inch) IPS-Display
  • Touch screen operation
  • Adjustable LED backlight
  • Screen format 16:9
  • Resolution 1024 x 600 pixels
  • Brightness/contrast/hue/color saturation adjustable
  • Brightness 300cd/m²
  • Contrast 500:1
  • Viewing angle vertical 120°, horizontal 140°

Product features smartphone integration

  • LINUX 4.9 OS operating system with 256MB memory
  • Wireless/wired Apple CarPlay (wireless from iPhone 5) and Android Auto (wireless from Android 11 and min. 5 Ghz WLAN)
  • Airplay and AutoLink function for screen synchronization (mirroring)
  • Wi-Fi 5.8GHz. Wi-Fi 5.0
  • Bluetooth

Product features Audio output

  • Audio output with 3.5mm jack cable
  • FM transmitter for alternative sound reproduction (78.5 - 108 MHz.)
  • Integrated 3 watt loudspeaker

Product features rear-view camera input

  • 1 video input cinch (CVBS and AHD compatible)
  • NTSC/PAL adjustable
  • Image reproduction normal/mirrored adjustable
  • Distance lines individually adjustable
  • 12 volt switching input for activation

Further product features

  • SD card reader (Micro SD)
  • USB input
  • Menu languages: DE, GB, F, E, P, I, NL, TR, JPN, PRC
  • Automatic switch-on when operating voltage is applied
Operating voltage 12/24 Volt DC
Power consumption 700mA@12VDC
Operating temperature -20°C - 70°C
Storage temperature -30°C - 80°C
Monitor dimensions 176 x 107 x 17mm (W x H x D)
Monitor weight 252 g

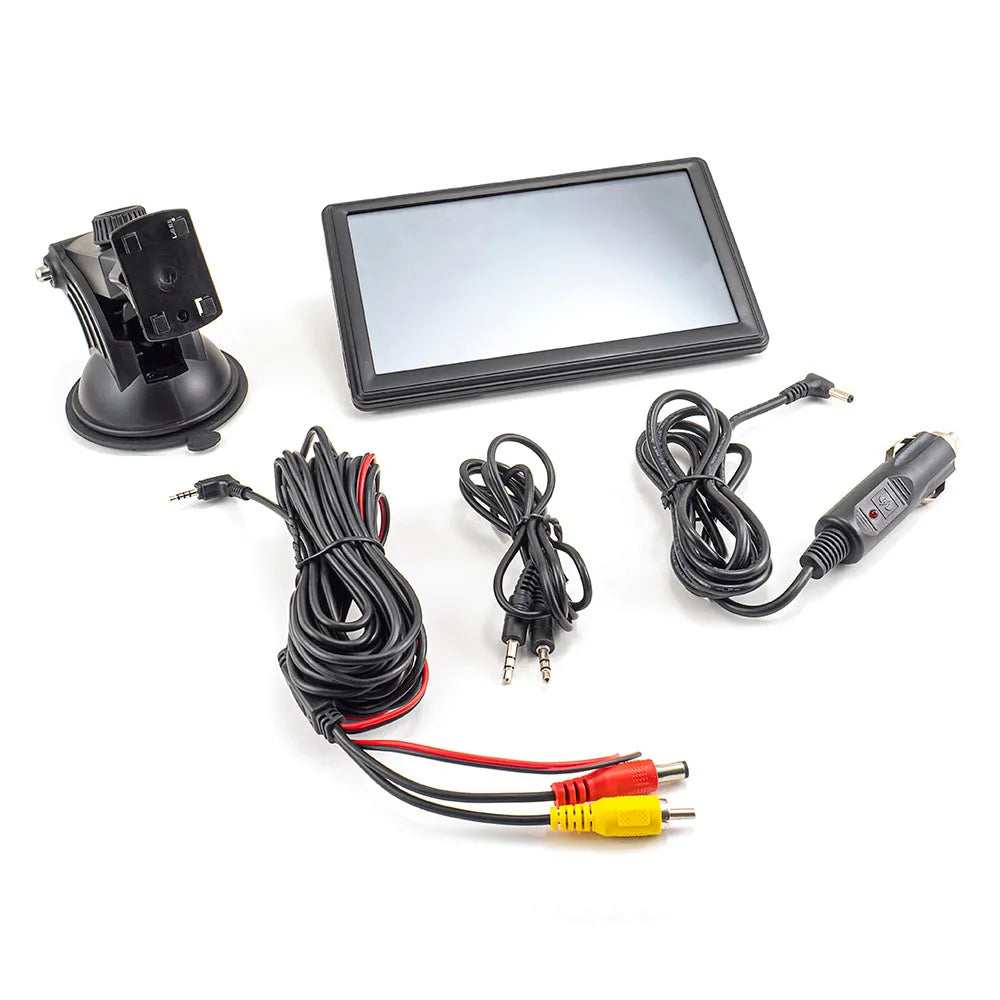

WHAT'S IN THE PACKAGE?

  • 7 inch (17.8cm) touchscreen monitor
  • Telescopic suction foot holder
  • Power supply connection cable with on-board power supply plug
  • Connection cable rear view camera input (RCA)
  • Connection cable audio output (3.5mm jack)
