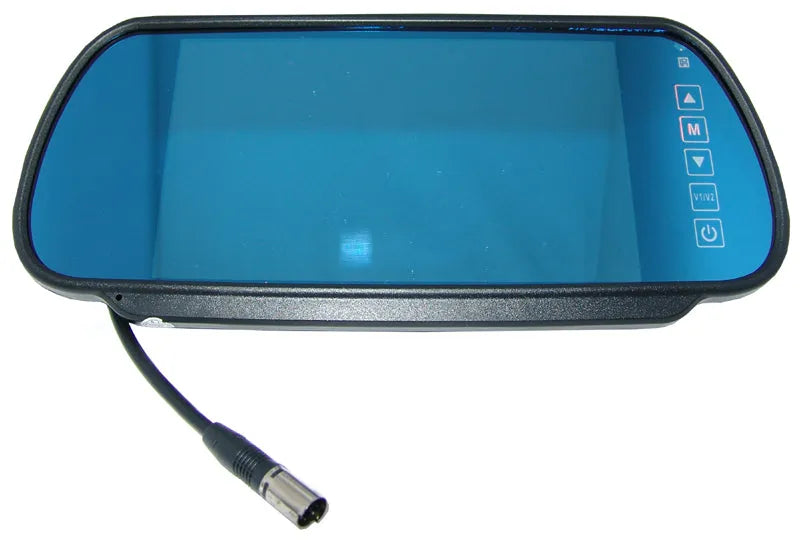

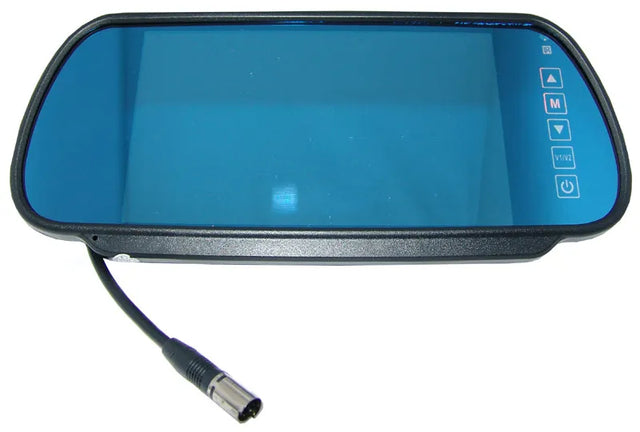

NAVLINKZ MM-7, rearview mirror with integrated TFT LCD monitor

Rear view mirror with integrated TFT LCD monitor. A rear view camera can be connected to the mirror.

• Resolution: 480x234 px (RGB).

• RCA- Video input.

• RCA- rear view camera input.
• Remote control IR communication control panel.

Rear-view mirror with integrated 7" TFT LCD monitor to be mounted on a present rear-view mirror. The installation is easy. The rear-view mirror can be mounted easily on the present factory-screen with a quick installation device. The second video-input has a rear-view camera function, this means an automatic switch is executed as soon as the gear is shifted into reverse. If the monitor is disabled it will be automatically enabled. After the reverse gear is ejected, the monitor switches back to the former operating status.

Properties

• Screen-surface functions as a mirror if it is disabled.
• PAL/NTSC compatible
• 1 Video-input (female RCA)
• 1 rear-view-camera-Eingang (female RCA)
• Automatic switching to the rear-view camera.
• Mirroring of the image is possible. (horizontal and vertical)
• Automatic activation as soon as the gear is shifted into reverse.
• Last input memory
• Picture-settings
• IR-remote-control

SPECIFICATIONS

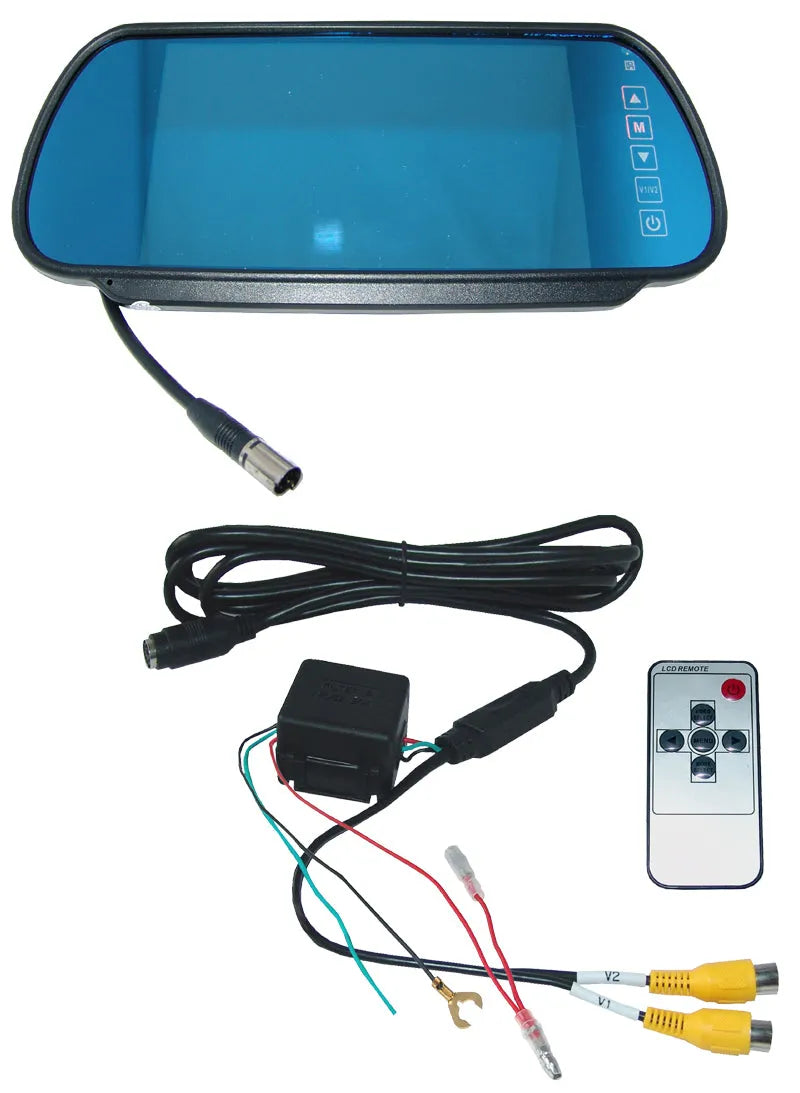

Content of delivery

• 7" TFT LCD mirror-monitor
• Power supply cord with 2 video inputs
• IR-remote-control
• Manual
